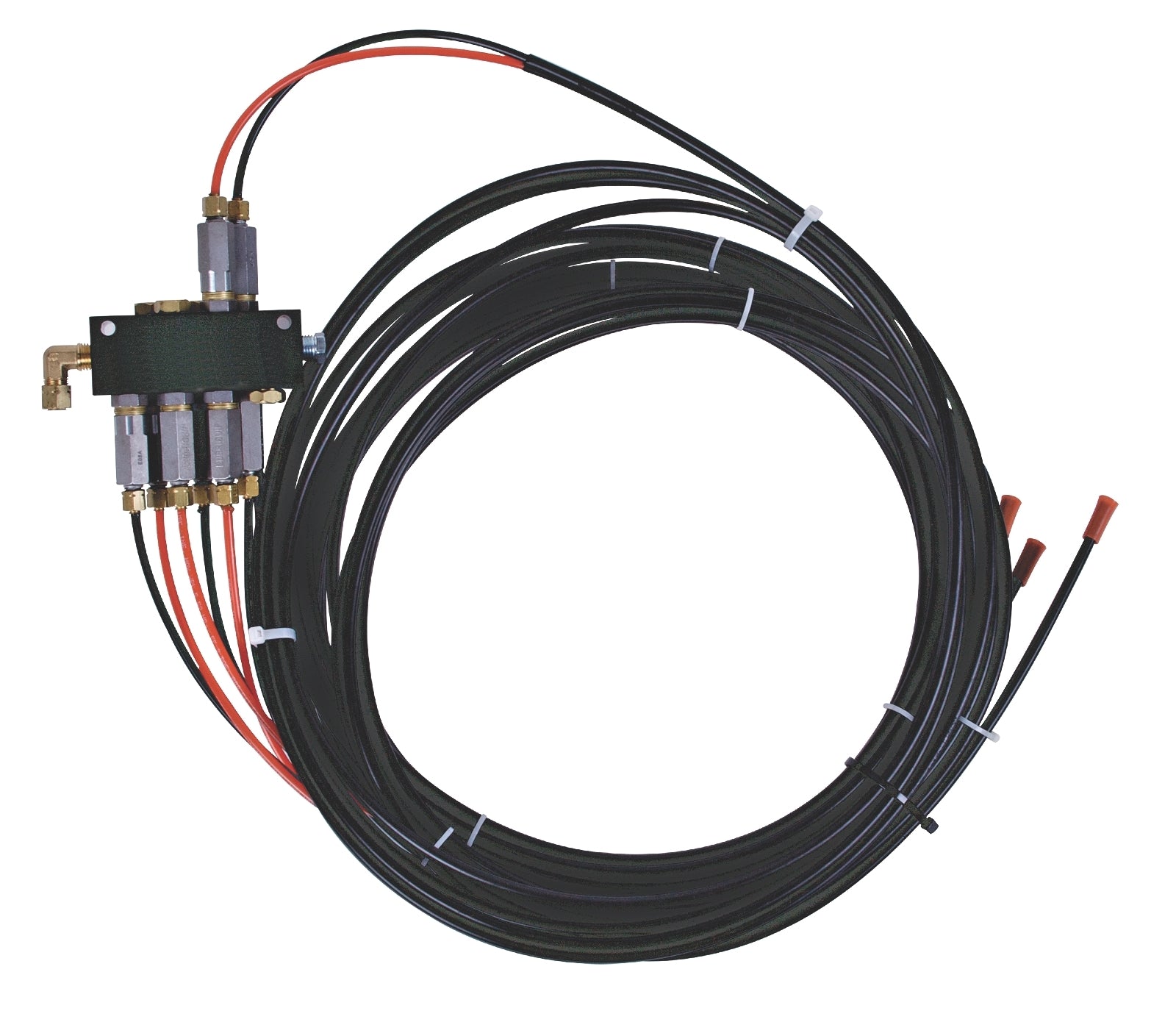

The GRACO 563656 is a pneumatic meter module designed for automatic lubrication systems. It is engineered for heavy-duty performance and is typically constructed from robust materials suitable for industrial environments. Its intended use is to deliver precise, automated grease lubrication to multiple points on the left front of vehicles with drum brakes and a single spring pin, ensuring optimal equipment performance and longevity.

Key Features:

• Pneumatic Meter Module
• Left Front, 8 Points, Drum Brakes, 1 Spring Pin
• Designed for use with GRACO Grease Jockey automatic lubrication systems; compatible with vehicles featuring drum brakes and a single spring pin
• Diaphragm pump combines air-operated benefits with electric pump efficiency and control
• Engineered for lasting, heavy-duty performance
• Preventative maintenance ensures peak performance and longevity
• Quick shipping of genuine parts to minimize downtime

Applications:
Automated lubrication of left front drum brake assemblies with a single spring pin on heavy-duty vehicles and equipment, particularly in environments requiring reliable, continuous lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Follow manufacturer guidelines for installation and setup
• Ensure correct alignment and secure mounting of the module
• Regularly inspect and maintain the module to prevent downtime
• Consult GRACO specialists for expert guidance on setup and troubleshooting
• Use only genuine GRACO replacement parts
• Schedule regular preventative maintenance checks
• Keep documentation and manuals accessible for reference
