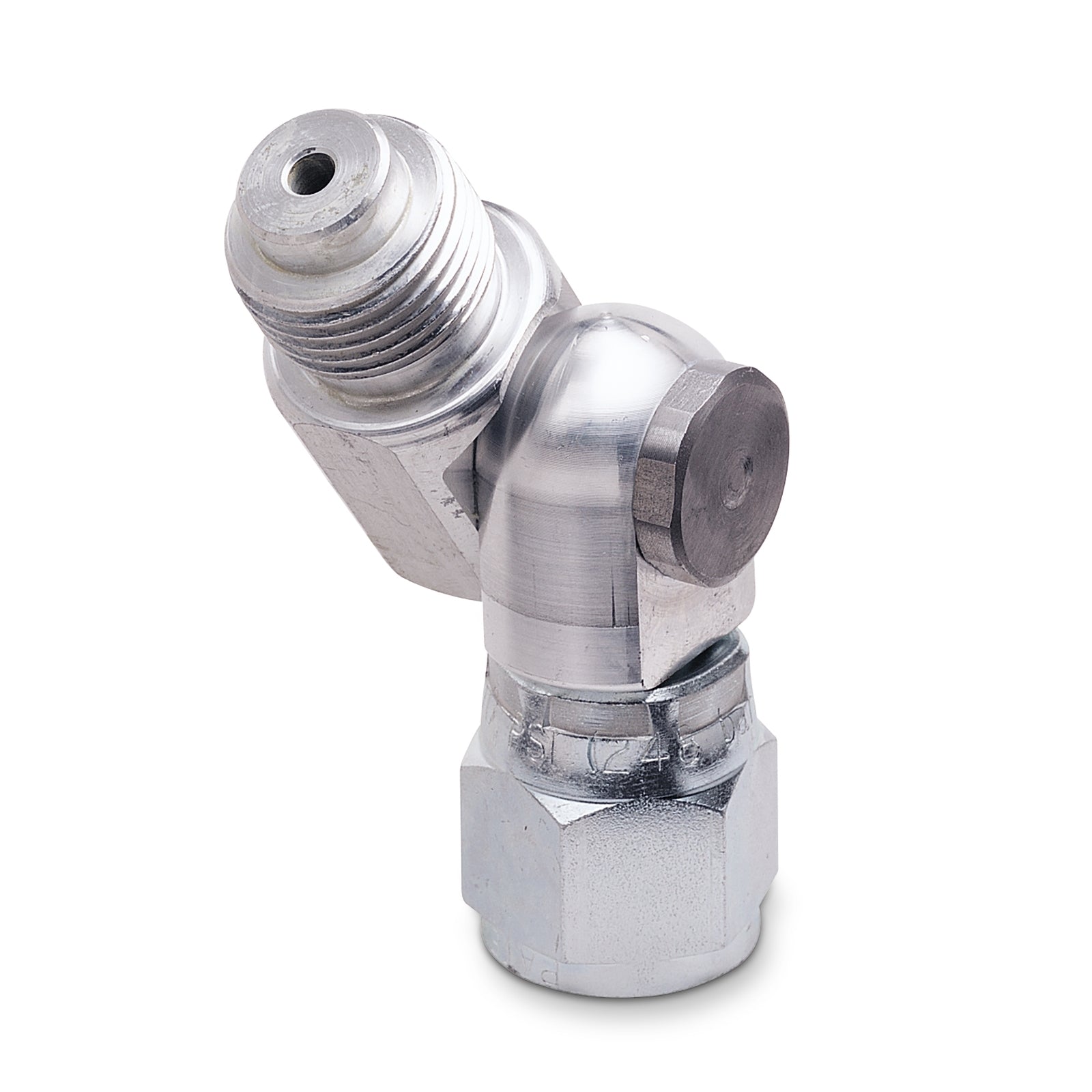

The GRACO 235486 is a stainless steel spray adapter designed to attach to the end of a GRACO extension, allowing the operator to spray at a variety of angles. Its intended use is to create a comfortable painting angle between the tip extension and the tip guard, making it easier to spray walls, angled ceilings, flat ceilings, and floors when using an extension.

Key Features:

• Adapter
• 235486 / 7/8-14 Thread, 1.75" h x 1" l
• Stainless Steel
• Maximum working pressure: 3600 psi (24.8 MPa, 248 bar, 24800 kPa)
• Any GRACO high pressure gun or extension with standard RAC IV, RAC V, RAC X, or dripless tip guard
• 180° swivel head for easy adjustment of spray angle
• Firm angle holds position during spraying
• Easily adjustable for changing spray patterns
• Designed for reliable, leak-free operation with OEM seals

Applications:
Used for spraying walls, angled ceilings, flat ceilings, and floors when using a GRACO extension. Ideal for professional painting and coating applications where flexible spray angles are required.

Installation Notes:

• OEM parts are recommended to avoid leaks and ensure reliable performance under high pressure. Aftermarket options may have inferior seals and can cause leaks and wasted material.
• Remove the tip guard from the spray gun
• Attach the Easy Turn swivel adapter
• Re-attach the tip guard to the new swivel
• Ensure all connections are secure before use
• Regularly inspect seals and connections for leaks
• Clean adapter after use to prevent clogging
• Use only compatible GRACO extensions and tip guards
