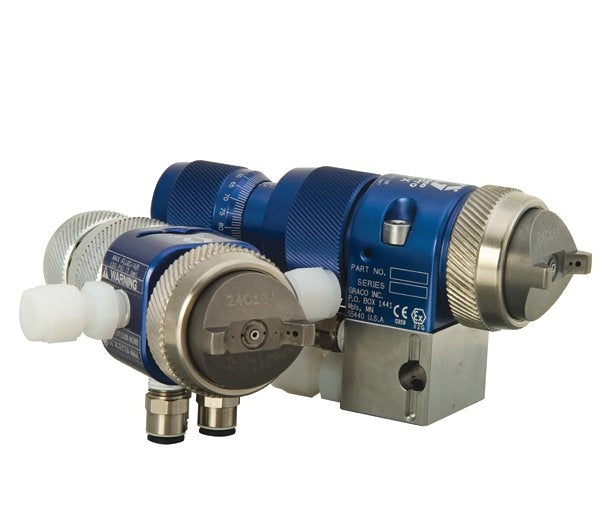

The GRACO 24B869 is an automatic air spray gun designed for precision liquid coating applications. It features a stainless steel tip (SST) and is constructed for use with a manifold, making it suitable for high-volume, automated manufacturing environments. Its intended use is to deliver accurate, consistent spray patterns for coatings such as primers, base coats, and top coats in industries like automotive, electronics, and cookware.

Key Features:

• Automatic air spray gun
• LVMP, 0.020 inch (0.5 mm) nozzle
• Stainless steel tip (SST), high-wear components, manifold-compatible
• Maximum working fluid/air pressure: 100 psi (7 bar, 0.7 MPa)
• Designed for use with GRACO AirPro EFX series and compatible with automated/manual spray systems
• Ultra-precision fluid adjustment with micrometer-telescoping knob
• Superior, precision spray performance
• Lightweight and compact design
• No internal air shutoff mechanism for increased reliability
• High-wear components for durability
• Multiple spray technologies and nozzle sizes available

Applications:
Automotive components (primers, base coats, top coats), backlit displays, cookware, electronics, and other precision coating applications in manufacturing environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Follow all national, state, and local codes regarding air exhaust velocity and safety requirements
• Ensure proper alignment and secure mounting of the spray gun and manifold
• Regularly inspect and maintain high-wear components for consistent performance
• Consult the equipment manual for detailed installation and maintenance procedures
• Check and clean nozzles and tips regularly
• Monitor fluid and air pressure to stay within recommended limits
• Replace worn components as needed to maintain spray quality
