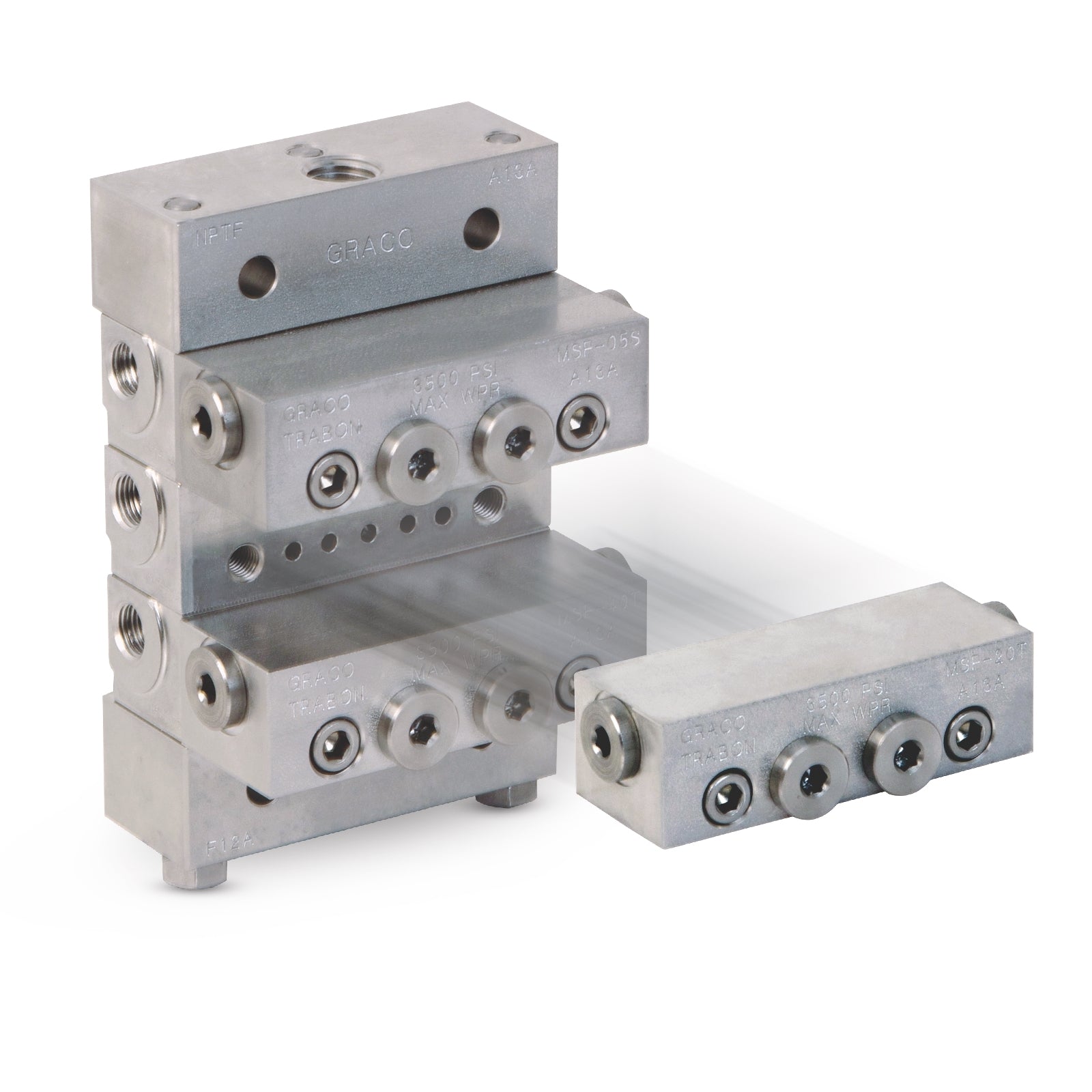

The GRACO 24N384 is a stainless steel base plate assembly for the Trabon® MSP Modular Divider Valve system, designed to distribute lubricant (oil or grease) to multiple points in automatic lubrication systems. Its robust construction and modular design ensure reliable, leak-resistant operation in demanding industrial environments.

Key Features:

• Divider Valve Base Plate Assembly
• MSP, 5 Section, NPSF
• Stainless Steel
• Up to 3,500 psi (241 bar) for MSP Modular Divider Valves
• Compatible with Trabon® MSP Modular Divider Valve systems; suitable for oil or grease up to NLGI #2
• Modular, stackable design for flexibility and easy expansion
• Fluoroelastomer (FKM) o-ring seals for leak prevention and reduced maintenance
• Built-in check valves to prevent lube re-entry and keep lines full
• Individual valve outputs can vary by a maximum ratio of 16:1
• Corrosion-resistant stainless steel construction for harsh environments
• Simple installation and operation

Applications:
Used in automatic lubrication systems for industrial machinery, mining, agriculture, and other sectors requiring precise, reliable lubrication of multiple points.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all components are clean and free from debris before assembly
• Follow torque specifications for all fasteners and plugs
• Use appropriate tools to avoid damaging stainless steel surfaces
• Verify correct alignment of modular sections and secure all connections
• Regularly inspect o-rings and seals for wear and replace as needed
• Periodically check for leaks and ensure all connections remain tight
• Monitor system pressure and flow to detect potential issues early
• Replace worn or damaged seals and o-rings promptly
• Keep the system clean and free from contaminants
