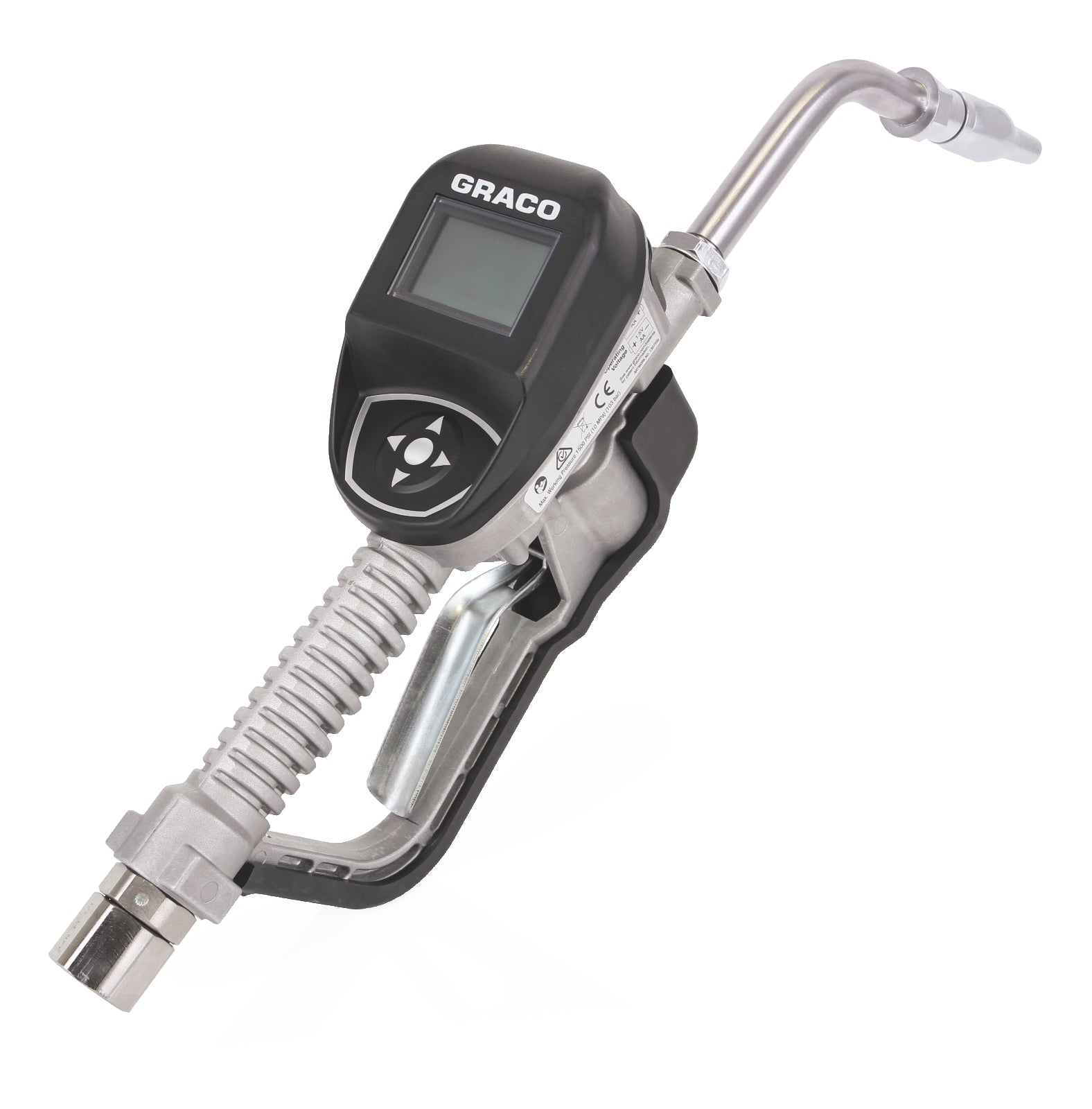

The GRACO 25M404 SDM8 Series Electronic Manual Oil Meter is a robust, manually operated oil meter designed for accurate dispensing of oils and automatic transmission fluids (ATF). It features a rigid extension and a 1/2 in. (13 mm) inlet, making it suitable for use in vehicle service and industrial lubrication applications.

Key Features:

• Electronic manual oil meter
• SDM8 Series, 1/2 in. (13 mm) inlet
• Robust, ergonomic design
• Up to 18 gpm (tested in 10W motor oil; actual flow varies with fluid pressure, temperature, and viscosity)
• Maximum working pressure: 1500 psi (103.4 bar)
• Oil, automatic transmission fluid (ATF), gear oils, antifreeze, windshield washer solvent
• Large high-contrast LCD screen for easy viewing in all lighting conditions
• Improved ergonomics for user comfort
• Accurate metering and dispensing
• Manual operation
• Rigid extension included

Applications:
Vehicle service, industrial lubrication, dispensing of oils and ATF in automotive and industrial settings

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the oil meter.
• Ensure proper threading and sealing at the inlet and outlet connections
• Calibrate the meter for the specific fluid being dispensed
• Reset the dispensed amount before starting a new dispense cycle
• Regularly inspect for foreign material in the valve housing and clean as needed
• Periodically calibrate the meter for accuracy
• Keep the meter clean and free from debris
• Contact a GRACO distributor for repair or replacement if foreign material is jammed in the valve housing
