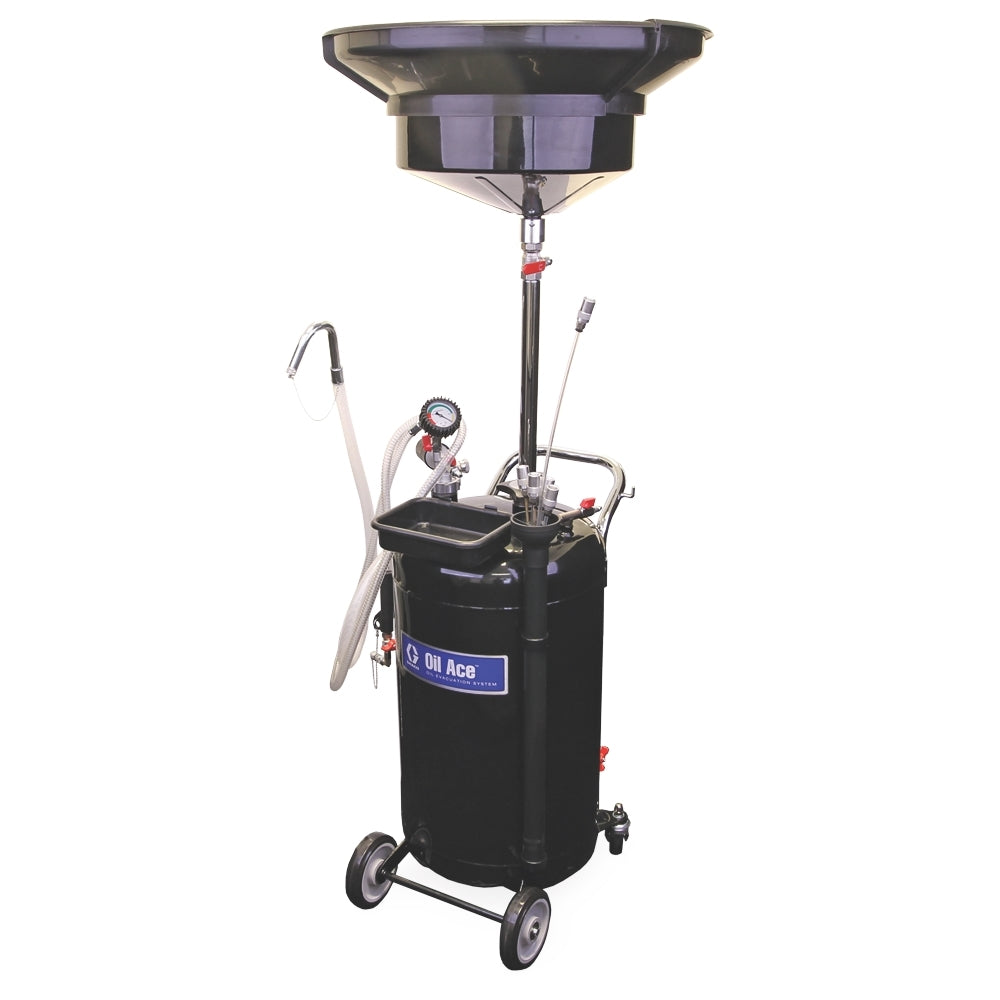

The GRACO 26C063 is a professional-grade waste oil evacuation system designed for the efficient collection and transfer of used lubricants and automotive fluids. It features a robust steel tank and is intended for use in automotive service shops and maintenance facilities to quickly and safely remove waste oil from engines and transmissions.

Key Features:

• Waste Oil Evacuation System
• 26C063 / 24 gal (90 l) capacity
• Steel tank, metal and plastic components
• Maximum draining pressure: 7 psi (50 kPa, 0.5 bar); Maximum air inlet pressure to vacuum: 110 psi (760 kPa, 7.6 bar)
• Designed for use with automotive fluids (engine oil, transmission fluid, etc.)
• Large 24-gallon (90-liter) steel tank for high-capacity fluid collection
• Easy-to-read liquid sight gauge for monitoring fluid levels
• Includes suction probes, sight glass, oil drain funnel, and adapters for versatile use
• Portable and built for professional, heavy-duty use
• Quick and effective oil evacuation using shop air
• Designed for ease of maintenance and reliability

Applications:
Used in automotive service shops, maintenance facilities, and any environment requiring efficient removal and transfer of used oil and waste fluids from engines and transmissions.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, safety, and optimal performance of the waste oil evacuation system.
• Read all warnings and instructions in the manual before installation and use
• Insert the drain tube through the threaded opening on top of the tank and tighten the hand wheel clockwise
• Connect the drain bowl to the supporting tube and secure with the provided screw
• Install the filter tray into the drain bowl
• Place the plastic funnel extension over the drain bowl
• Ensure all connections are secure and check for leaks before operation
• Regularly inspect and clean the filter tray and drain bowl
• Monitor the sight glass for fluid levels and system integrity
• Follow manufacturer guidelines for maintenance intervals and procedures
