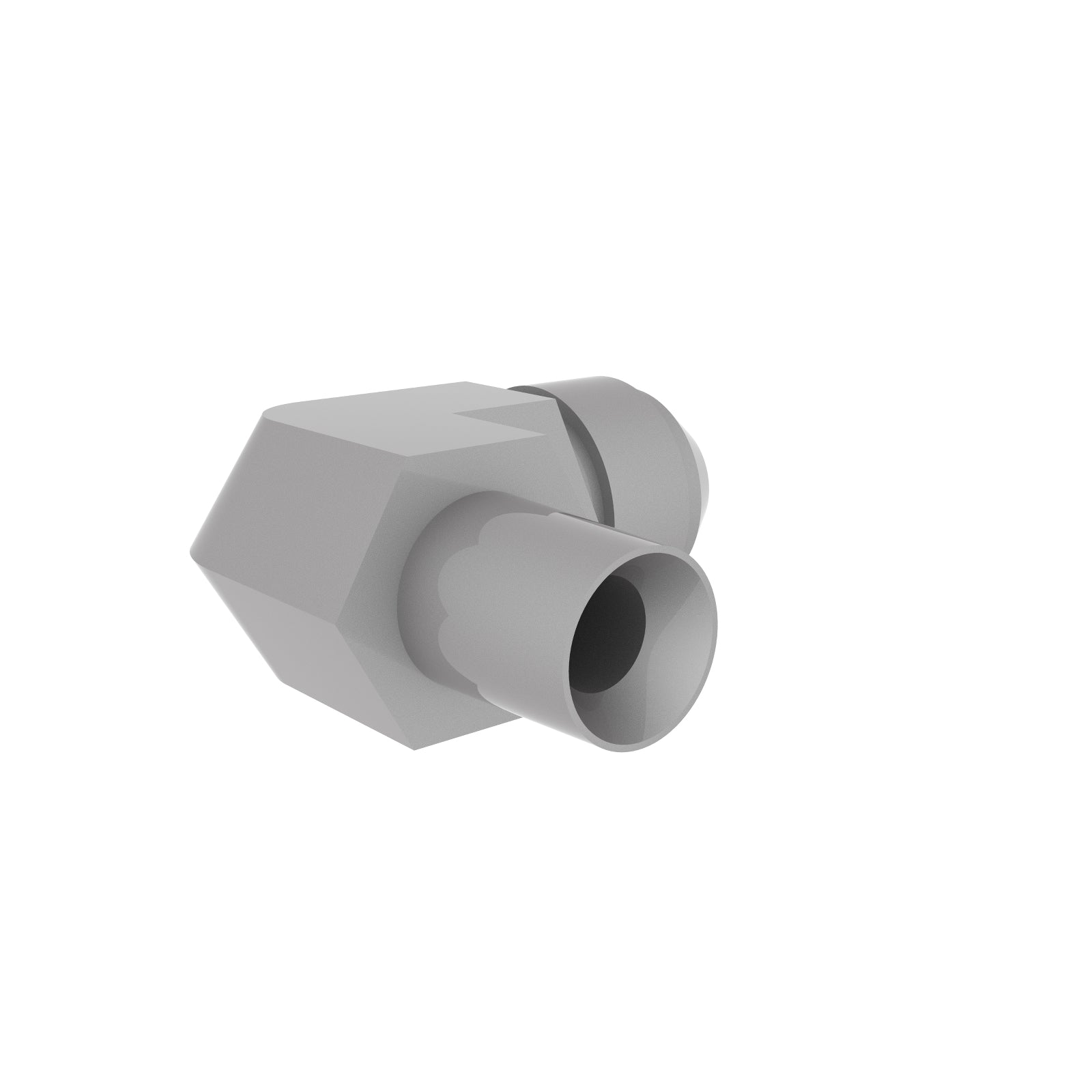

The GRACO 124813 is a 90-degree elbow fitting designed to connect hydraulic or fluid transfer lines. It features a JIC #8 male end and a 1/4" NPT female end, typically constructed from steel or similar durable material. This fitting is intended for use in GRACO spray equipment and fluid handling systems to facilitate directional changes in piping while maintaining a secure, leak-resistant connection.

Key Features:

• Elbow fitting
• JIC #8 x 1/4" NPT
• Steel (assumed, not explicitly stated)
• GRACO spray equipment and compatible fluid transfer systems
• 90° angle for directional change in piping
• Secure, leak-resistant connection
• Durable construction for industrial environments

Applications:
Used in GRACO spray equipment and fluid handling systems for applications requiring a 90° change in piping direction, such as lubrication, paint, or chemical transfer systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO equipment.
• Ensure threads are clean and free of debris before installation
• Use appropriate thread sealant or tape for NPT connections
• Tighten fittings to recommended torque specifications to prevent leaks
• Inspect fittings regularly for signs of wear or damage
