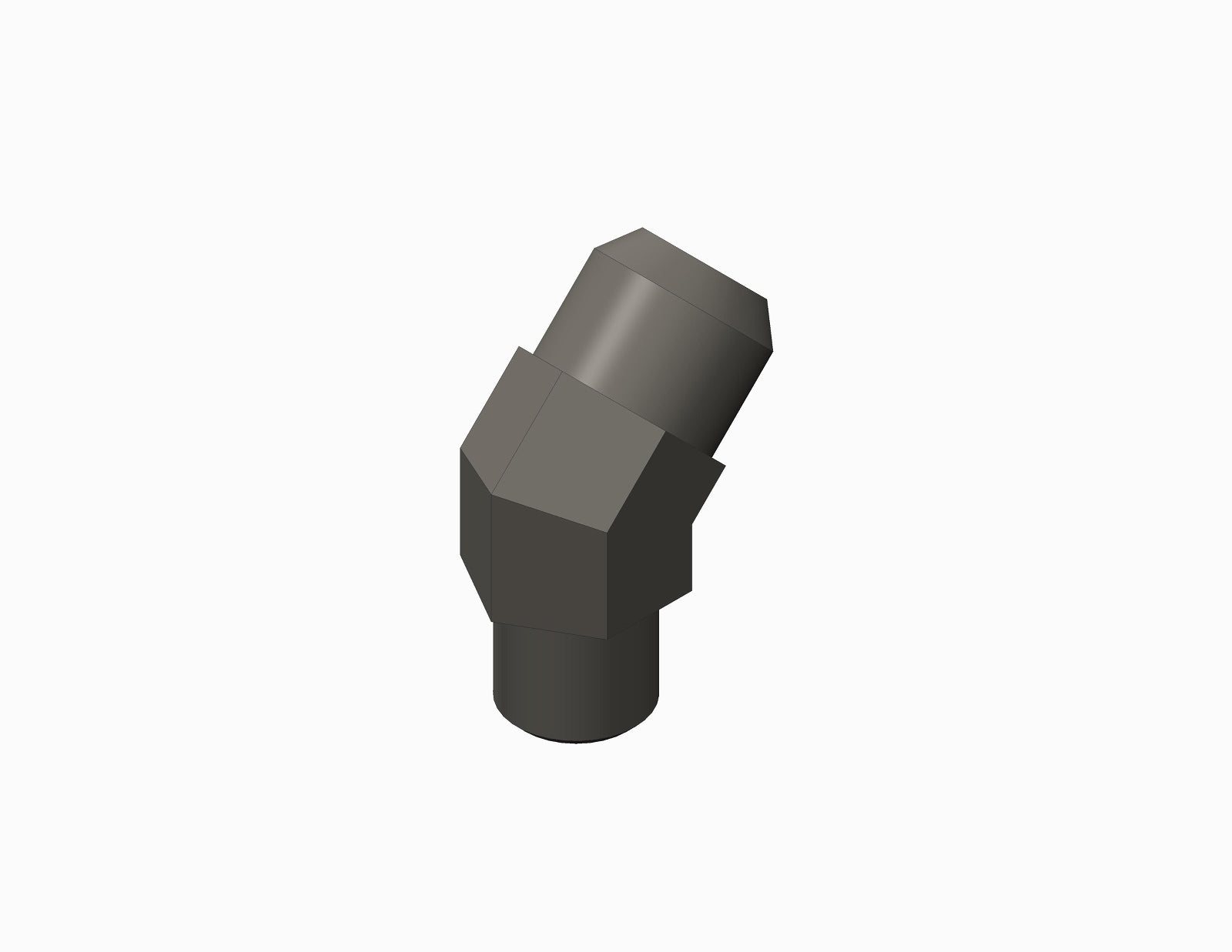

The GRACO 21433-01 is a 45-degree elbow fitting designed for use in fluid transfer systems. It features JIC (Joint Industry Council) connections, with sizes 3/4" and 1 5/16" S. The fitting is intended to provide a reliable, leak-resistant connection for high-pressure fluid lines within GRACO equipment, commonly used in lubrication, hydraulic, and industrial fluid handling applications. Material is not specified in available sources.

Key Features:

• Elbow fitting
• 3/4" x 1 5/16" S
• Designed for use with GRACO equipment and compatible with JIC standard connections
• 45-degree angle for flexible routing
• JIC connections for secure, leak-resistant joints
• Robust design for industrial environments

Applications:
Used in lubrication systems, hydraulic lines, and industrial fluid transfer applications where a secure, angled connection is required.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of your equipment.
• Ensure both mating surfaces are clean and free of debris before installation.
• Hand-tighten the fitting before using a wrench to avoid cross-threading.
• Check for leaks after installation and during operation.
• Follow torque specifications if available in the equipment manual.
