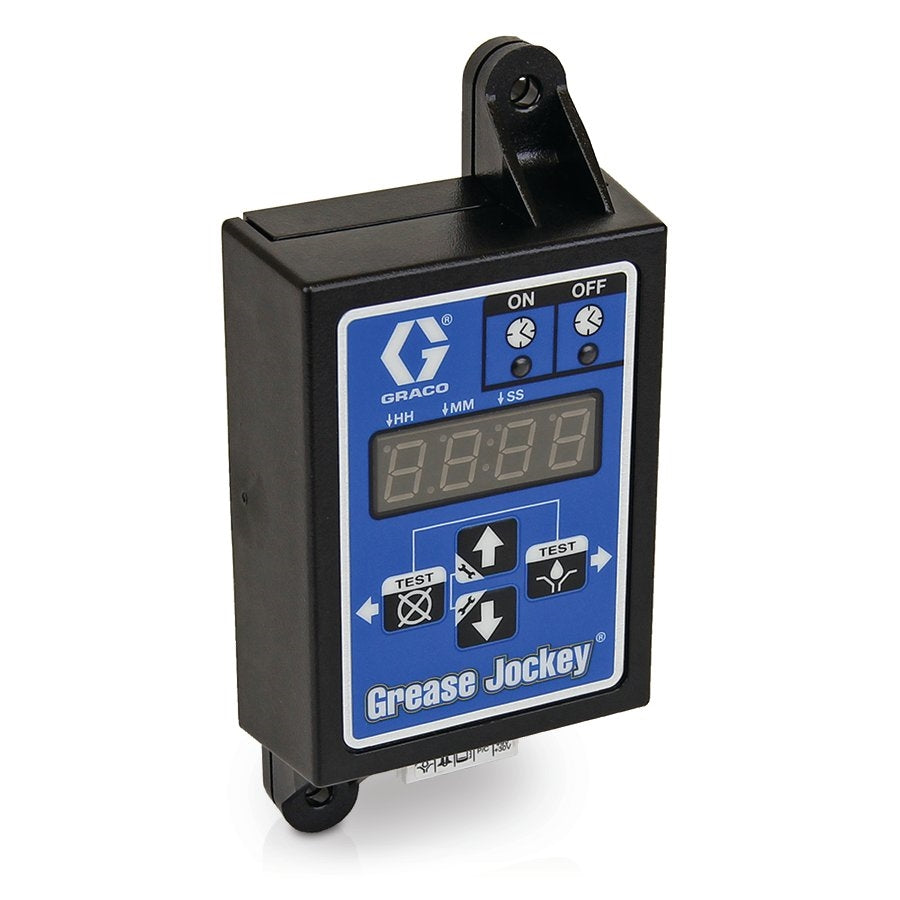

The GRACO 24W480 Grease Jockey® Digital Timer is a compact, digital lubrication controller designed for use with automatic lubrication systems. It is typically constructed from durable plastics and metals suitable for vehicle environments. Its primary function is to automate and control the timing of lubrication cycles for on-road and off-road vehicles and equipment.

Key Features:

• Lubrication Controller
• Grease Jockey® Digital Timer (SKU: 24W480)
• Automatic lubrication systems, Delphi 280 connector cable
• Digital timer for precise lubrication control
• Icon-based programming for ease of use
• LED lights for system feedback
• Compact design for easy cab mounting
• IP54 intrusion rating for indoor and vehicle cab use
• Wide operating temperature range (-40°C to 80°C)
• Low power consumption (1W)

Applications:
Controls series progressive, single line parallel, and other types of lubrication systems for off-road equipment and on-road vehicles.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Mount the timer in the vehicle cab for easy access and protection from the elements.
• Ensure all electrical connections are secure and protected from moisture.
• Follow the manufacturer’s wiring diagram for the Delphi 280 connector cable.
• Regularly check the timer and system for proper operation and feedback.
• Periodically inspect the timer and connections for wear or damage.
• Keep the timer and surrounding area clean and free from debris.
• Refer to the product manual for troubleshooting and maintenance procedures.
