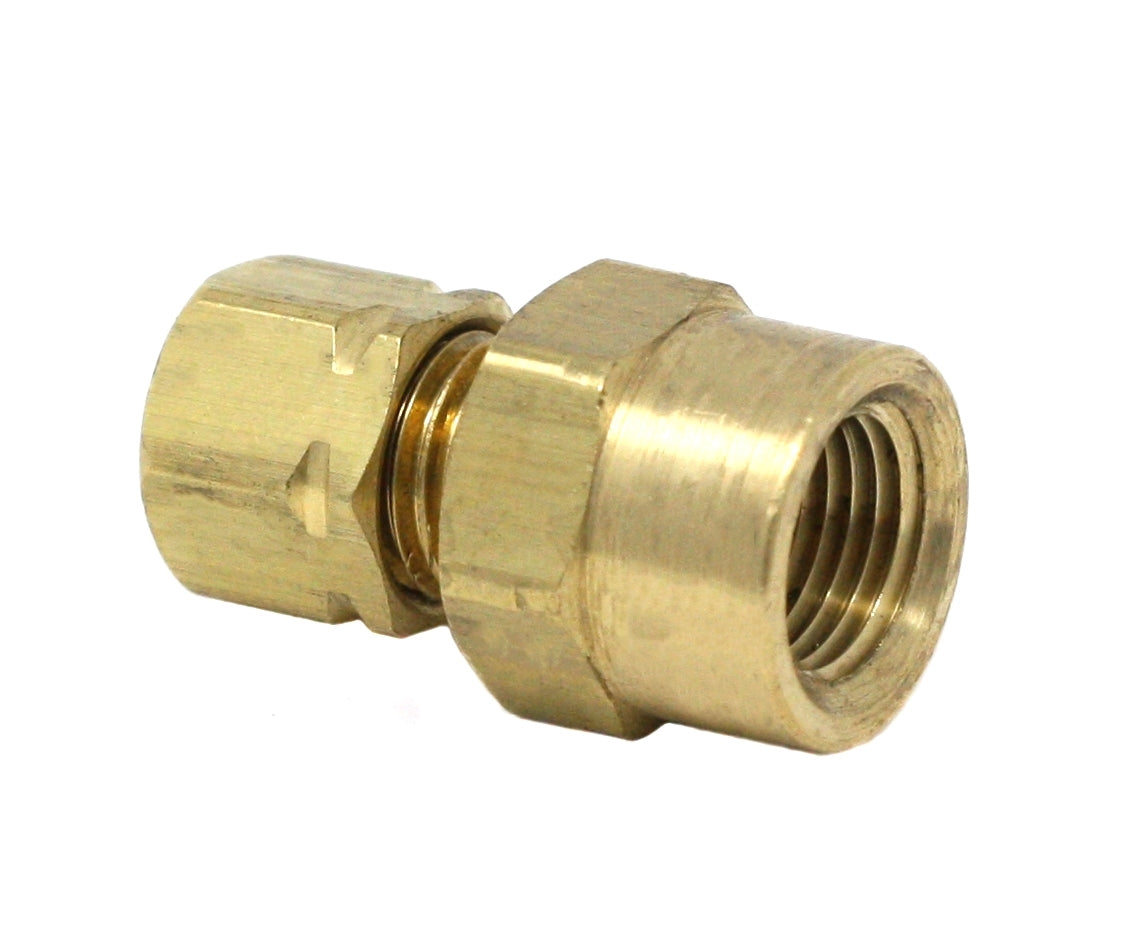

This part is a brass female connector designed to join 3/16 inch (4.8 mm) tubing to a 1/8 inch (3.2 mm) NPT threaded port. It is intended for use with oil and grease in on-road vehicle lubrication systems, providing a reliable and leak-resistant connection within GRACO equipment.

Key Features:

• Connector
• 3/16 inch Tube, 1/8 inch NPT
• Brass
• Oil, grease; on-road vehicles
• Reliable brass construction
• Leak-resistant connection
• Easy to install and maintain

Applications:
Used in on-road vehicle lubrication systems for connecting tubing to threaded ports, ensuring secure and efficient transfer of oil or grease.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO lubrication systems.
• Ensure tubing is cut cleanly and squarely before insertion
• Hand-tighten the fitting, then use a wrench for a final snug fit—avoid over-tightening
• Check for leaks after installation and during routine maintenance
• Regularly inspect fittings for wear or damage
• Replace fittings if leaks or damage are detected
• Use only compatible tubing and lubricants as specified by GRACO
