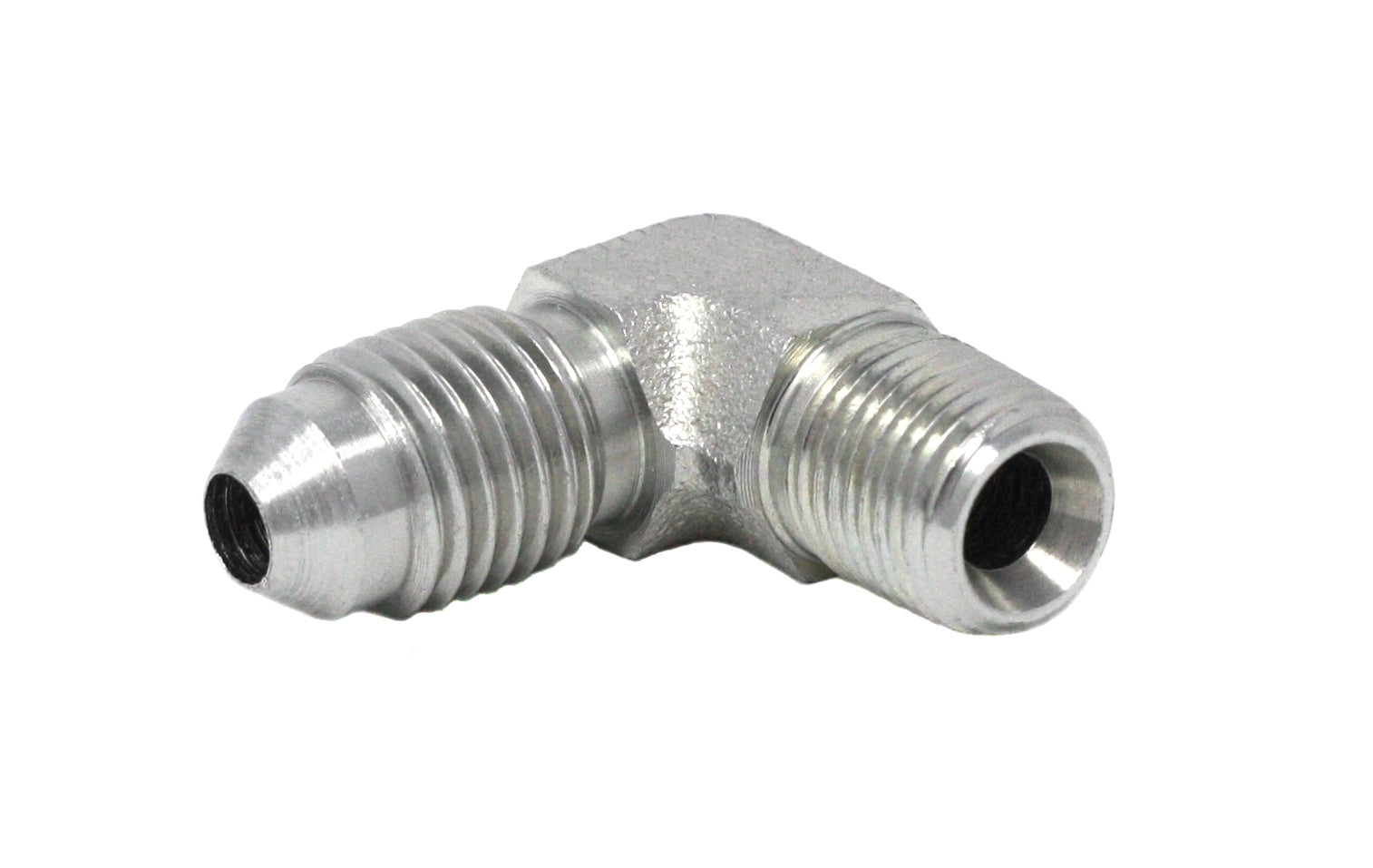

The GRACO 556763 is a hose fitting designed as a 90° elbow, constructed for reliable connection in automatic lubrication systems. It is typically made from durable materials suitable for industrial environments, and is intended to facilitate secure, leak-free connections between hoses and equipment in demanding applications.

Key Features:

• Hose Fitting - 90° Elbow
• 1/8 inch (3.2 mm) NPT, #4 JIC
• Compatible with hoses and tubes in automatic lubrication systems
• 90° elbow design for flexible routing
• Reliable, leak-free connection
• Suitable for changing temperatures and challenging oil/grease types
• Ease of installation and maintenance

Applications:
Used in on-vehicle and industrial automatic lubrication systems to connect hoses and tubes, ensuring efficient and reliable delivery of lubricants.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance in lubrication systems.
• Ensure threads are clean and undamaged before installation
• Use appropriate tools to avoid over-tightening
• Check for leaks after installation
• Follow equipment manual for specific installation procedures
