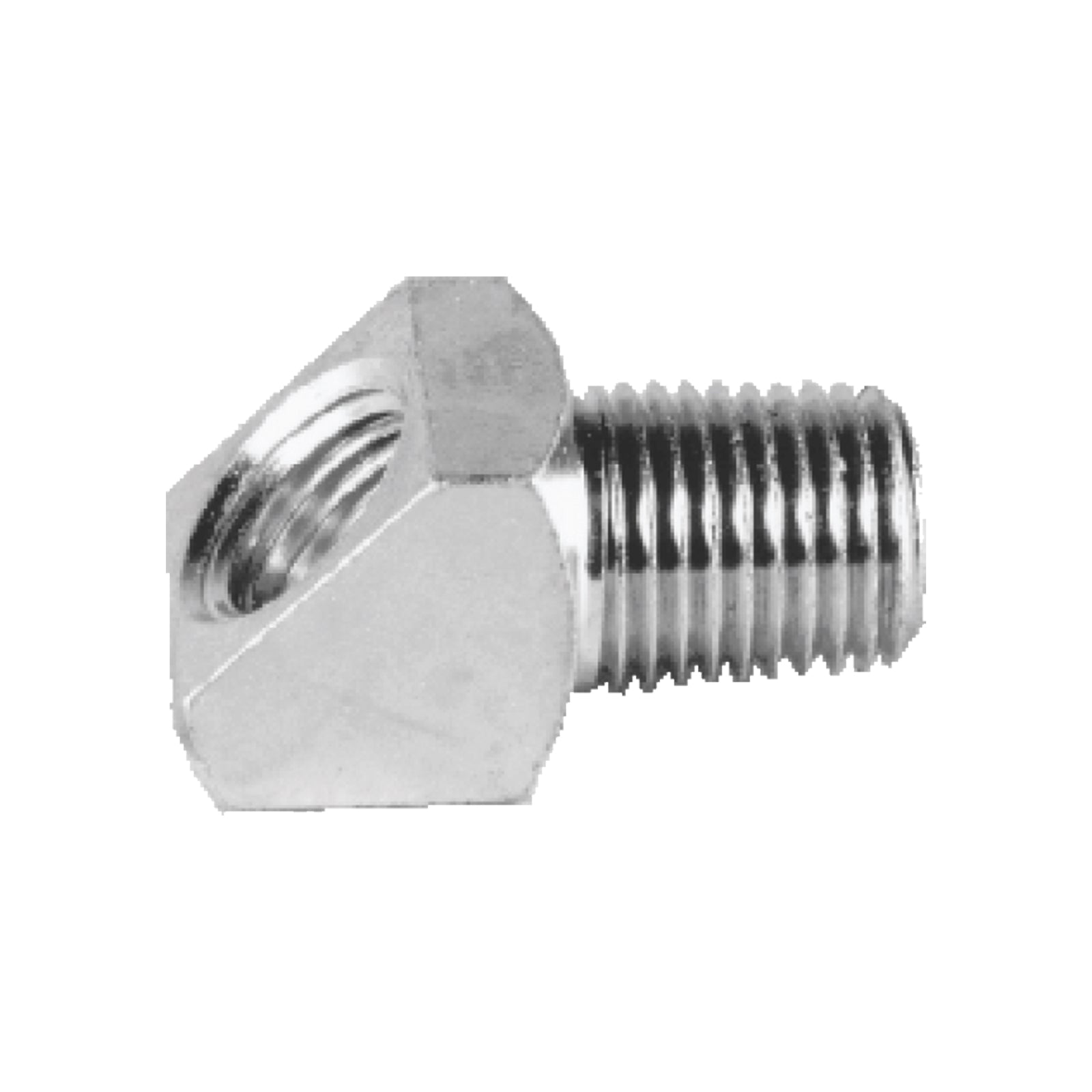

The GRACO 557395 is a steel tube fitting designed as a 45° street elbow, featuring 1/8 NPT male and female threads. It is intended for use in fluid transfer systems within GRACO equipment, providing a reliable and compact connection for piping and tubing applications.

Key Features:

• Elbow
• 1/8 NPT Male x 1/8 NPT Female
• Steel
• Compatible with GRACO fluid handling systems and other equipment using 1/8 NPT threaded connections
• 45° angle for flexible routing in tight spaces
• Street elbow design for direct connection between male and female threads
• Zinc and nickel finish for corrosion resistance
• Compact dimensions (0.95 in length, 0.45 in width, 0.5 in height)
• Lightweight (0.025 lb)

Applications:
Used in lubrication, fluid transfer, and maintenance systems for various industries including mining, agriculture, and manufacturing. Suitable for connecting pipes or tubes in confined spaces where a 45° angle is required.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO equipment.
• Ensure threads are clean and free of debris before installation
• Apply appropriate thread sealant to prevent leaks
• Hand-tighten before using a wrench to avoid cross-threading
• Do not overtighten to prevent damage to threads
