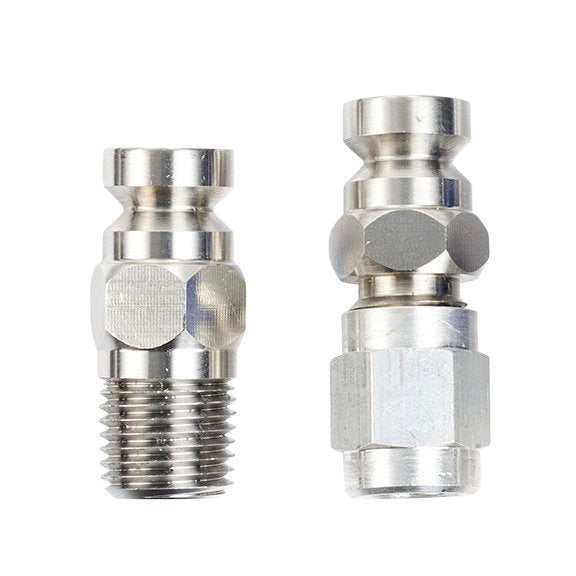

The GRACO FXFN01 is a quick-connect fitting designed for use with nylon tubing in GRACO’s IniFlex color change stack systems. It is constructed for robust industrial environments and enables rapid, tool-free tube connections for fluid handling in automated paint and coating applications.

Key Features:

• IniFlex Fitting
• FXFN01 (Nylon Tube fitting style, 1/4” ID)
• Nylon tubing: 225 psi working pressure (see tubing specs, not fitting itself)
• Compatible with GRACO IniFlex color change stack systems and 1/4” ID nylon tubing
• Quick Socket fitting for tool-free installation
• Designed for compact color change valve applications
• Reliable, easy-to-maintain connection for fluid lines
• Suitable for industrial automation environments

Applications:
Used in industrial automation, paint and coating systems, and fluid handling applications where quick, reliable tube connections are required for color change stacks.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and maintains system performance and safety.
• Ensure correct tube size (1/4” ID nylon tubing recommended)
• No special tools required for installation
• Follow GRACO’s installation and maintenance guidelines for optimal performance
• Use only the setscrew provided with the kit for secure assembly
• Regularly inspect fittings and tubing for wear or leaks
• Replace worn or damaged components promptly
• Consult the equipment manual for specific installation instructions
