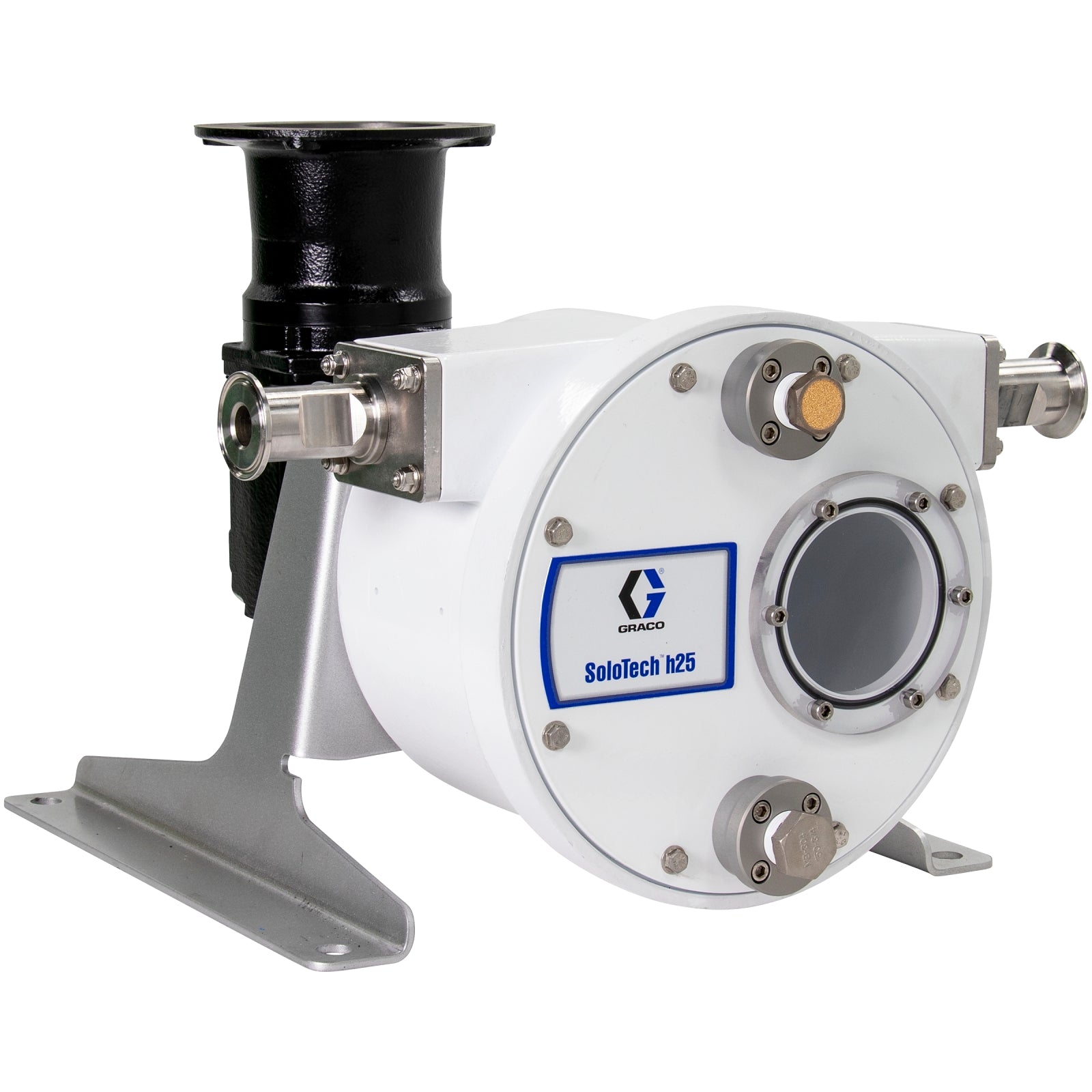

The GRACO 19C728 SoloTech™ h25 Peristaltic Pump is a positive displacement pump designed for industrial metering and transfer of caustic, abrasive, or sensitive materials. It features a low-speed gear reducer (no motor included), NEMA-rated housing, FDA Nitrile Hose, and a stainless steel (SST) sanitary clamp barb. The pump is intended for use in applications requiring gentle, reliable, and maintenance-friendly fluid handling.

Key Features:

• Peristaltic (hose) pump
• SoloTech™ h25
• Powder-coated aluminum housing, FDA Nitrile Hose, SST Sanitary Clamp Barb
• Maximum working pressure: 125 psi (8.6 bar) for SoloTech h25 series.
• Designed for industrial metering and transfer of caustic, abrasive, or sensitive fluids; compatible with a wide range of electric motors (not included in this configuration)
• FDA Nitrile Hose for food contact; NEMA-rated housing for electrical safety
• Single roller design compresses hose through 360 degrees for longer hose life and reduced maintenance
• No valves, seals, or glands required—inexpensive to maintain
• Pump is reversible for emptying lines or clearing blockages
• Easy hose barb assembly—no special tools needed
• Removable powder-coated aluminum cover with large sight window for easy access
• Adjustable feet for improved mounting flexibility

Applications:
Ideal for metering and dosing flavorants, colorants, solids, abrasives, and slurries in food, beverage, personal care, and industrial applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment and secure mounting using adjustable feet
• Connect the pump to compatible electric motor as required
• Use appropriate sanitary clamps and fittings for hygienic applications
• Regularly inspect hose for wear and replace as needed to maintain performance and safety
• Follow all local electrical and safety regulations during installation
• Regularly check hose condition and replace if signs of wear or damage are present
• Clean pump and hose assembly according to industry and application standards
• Ensure all connections are tight and leak-free
• Refer to the product manual for specific maintenance intervals and procedures
