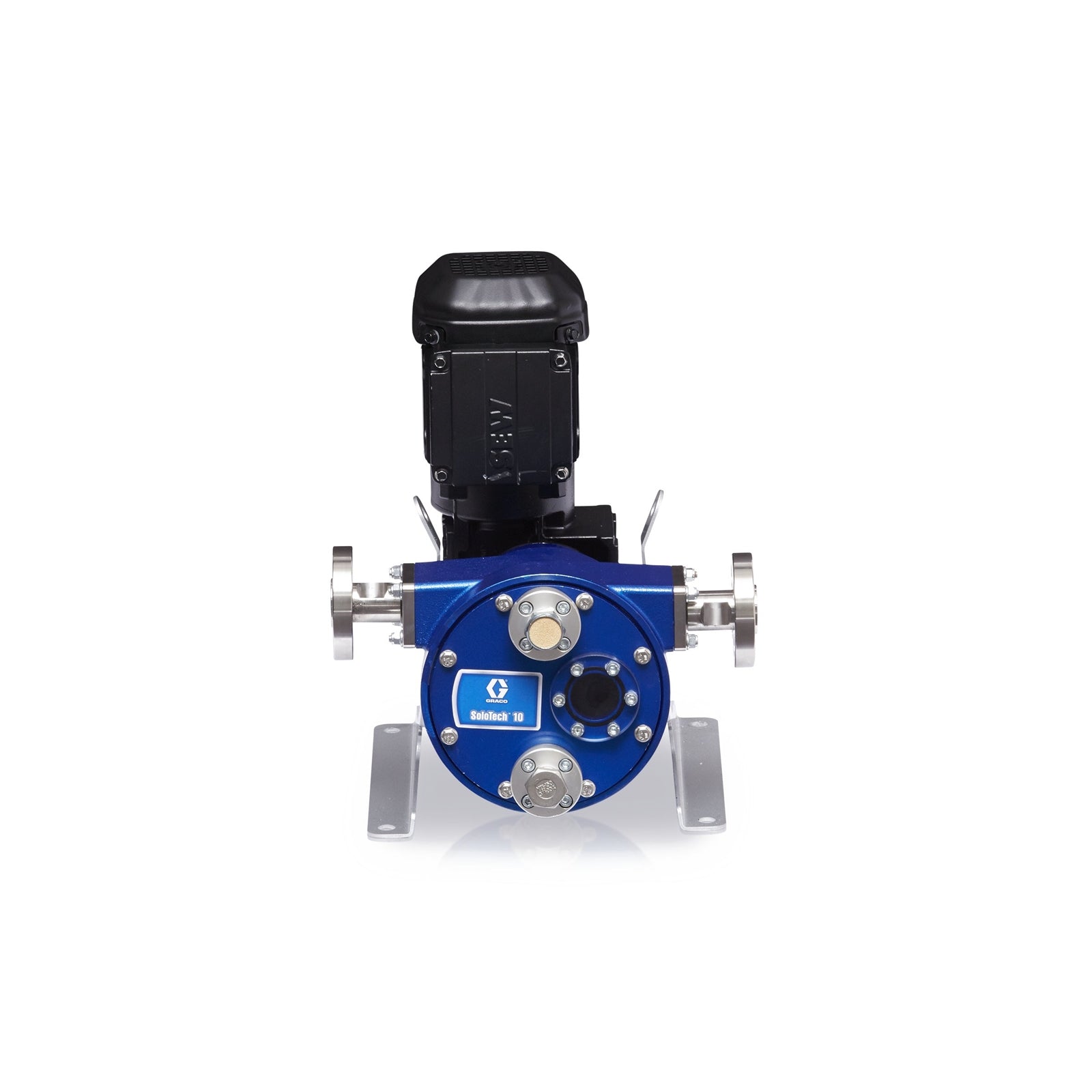

The GRACO 19Z012 is a low-speed peristaltic hose pump designed for industrial fluid handling. It features a CSM (chlorosulfonated polyethylene) hose and a Hastelloy-C barb, powered by an AC motor. This pump is engineered for metering or transferring caustic, abrasive, or sensitive materials, offering reliable performance and extended hose life due to its unique single-roller design.

Key Features:

• Electric Peristaltic Pump
• i10 / ST10
• Powder Coated Aluminum housing, CSM hose, Hastelloy-C barb
• Maximum Flow Rate: 2.5 L/min
• Maximum Fluid Pressure: 9 bar (900 kPa)
• Industrial fluid handling systems
• CE
• Single roller compresses hose through 360° rotation for longer hose life
• No valves, seals, or glands—inexpensive to maintain
• Pump is reversible for emptying lines or clearing blockages
• Extended hose life due to only one hose compression per revolution

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive fluids

Installation Notes:

• Ensures optimal performance, reliability, and compatibility with GRACO equipment
• Ensure proper alignment of inlet and outlet connections
• Check hose condition regularly for wear and replace as needed
• Follow manufacturer guidelines for electrical and mechanical installation
• Use genuine replacement parts to maintain warranty and performance
