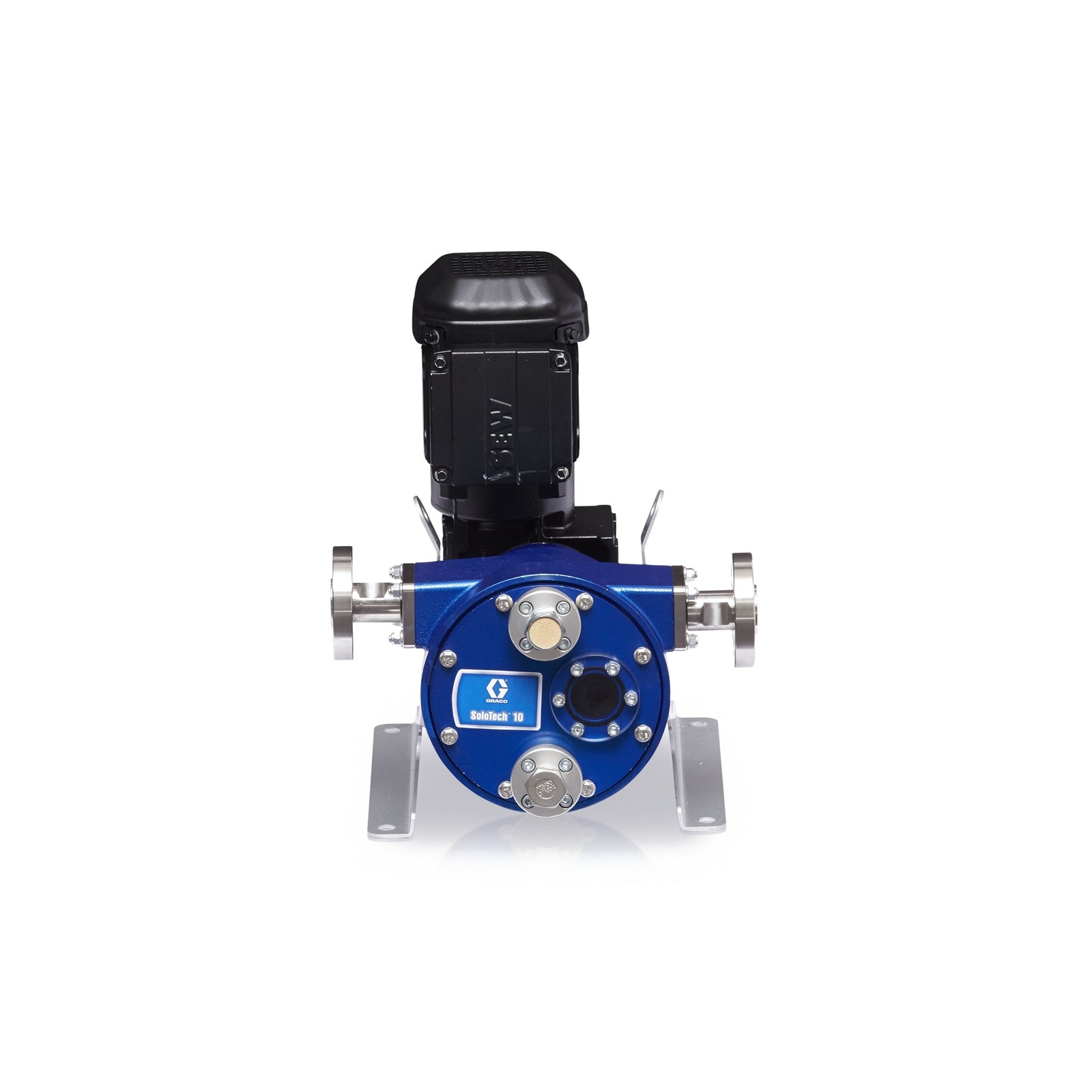

The GRACO 19Z016 is a peristaltic hose pump designed for industrial metering and transfer applications. It features an EPDM hose and Hastelloy-C barb, making it suitable for handling a wide range of fluids, including those that are abrasive, corrosive, or shear-sensitive. The pump is powered by an AC motor and is intended for use in environments where reliable, low-maintenance fluid transfer is required.

Key Features:

• Electric Peristaltic Pump
• i10
• Powder Coated Aluminum housing, EPDM hose, Hastelloy-C barb
• Maximum flow rate: 2.5 L/min (for similar SoloTech i10 models with 10 mm hose)
• Maximum fluid pressure: 9 bar (900 kPa)
• Compatible with abrasive, corrosive, shear-sensitive, and gas-entrapped fluids
• CE (for similar SoloTech i10 models)
• Single roller compresses hose through 360 degrees for extended hose life
• No valves, seals, or glands—inexpensive to maintain
• Pumps are reversible for emptying lines or clearing blockages
• Only one hose compression per revolution
• Brushless DC option (not this model, but available in series) reminds when hose needs replacement

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive materials; suitable for mining, agriculture, and other demanding environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment of inlet and outlet connections
• Use appropriate hose clamps and fittings for secure connections
• Follow manufacturer guidelines for hose tension and roller adjustment
• Regularly inspect hose for wear and replace as needed to prevent downtime
• Monitor hose condition and replace before failure
• Keep pump housing clean and free from debris
• Check for leaks and unusual noises during operation
• Consult manual for lubrication and service intervals
