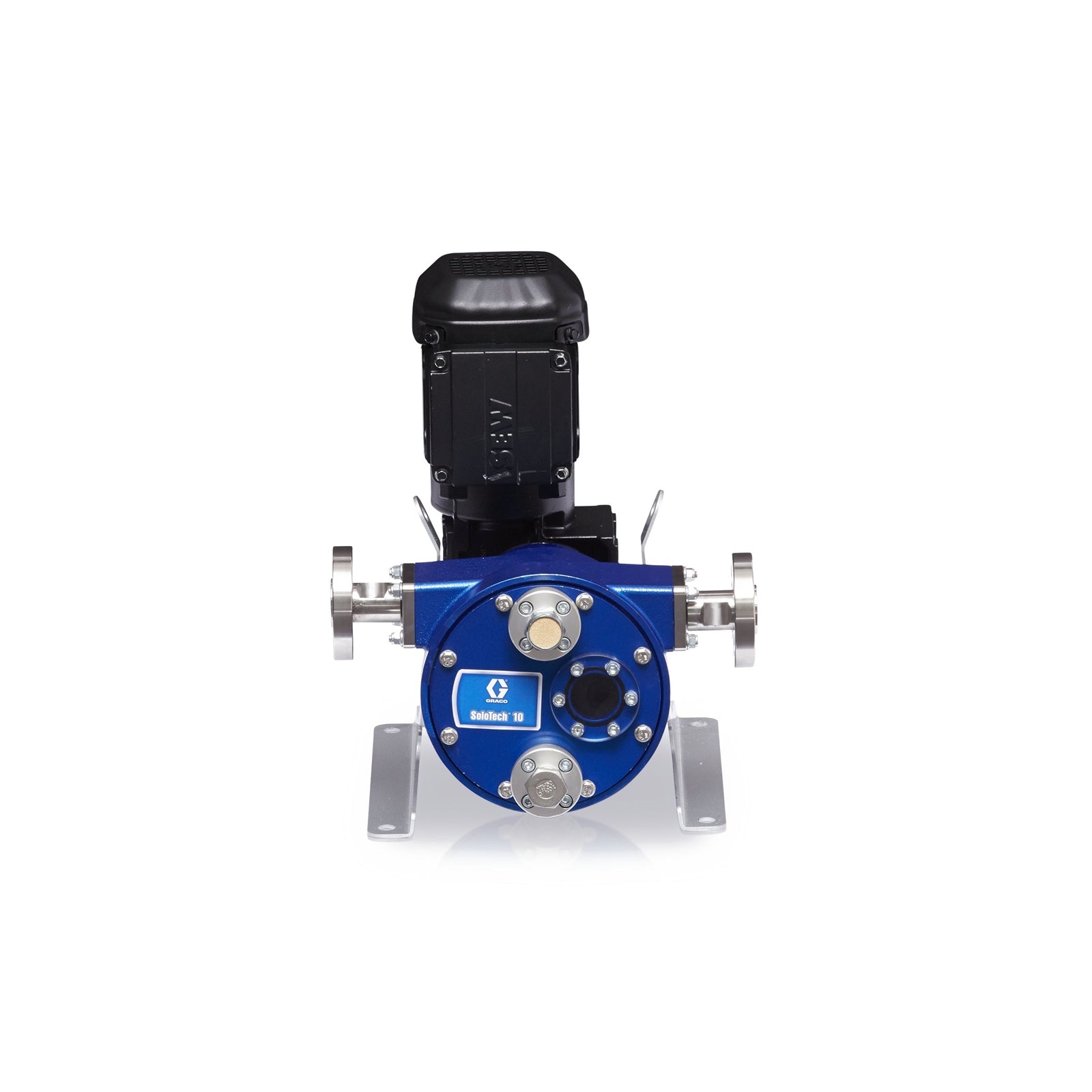

The GRACO 19Z026 is a peristaltic hose pump designed for industrial metering and transfer applications. It features a high-speed, single-roller design that compresses a 10 mm CSM (Hypalon) hose through a full 360 degrees of rotation, providing reliable and leak-free operation. The pump is constructed with a stainless steel barb and is powered by a standard AC motor, making it suitable for handling caustic, abrasive, or sensitive materials.

Key Features:

• Peristaltic Hose Pump
• SoloTech™ i10, 10 mm hose size
• CSM (Hypalon) hose, 316 Stainless Steel barb, AC motor
• Maximum flow rate: 0.685 gpm (2.6 lpm) at 92 rpm
• Maximum output pressure: 125 psi
• Designed for use with industrial metering and transfer equipment
• Single roller compresses hose through 360 degrees for longer hose life
• No valves, seals, or glands—inexpensive to maintain
• Reversible operation for emptying lines or clearing blockages
• One-piece center section eliminates leaks and reduces maintenance
• Extended hose life due to only one hose compression per revolution

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive materials; suitable for applications requiring leak-free, low-maintenance pumping solutions.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment and secure mounting of the pump
• Use appropriate hose clamps and fittings for leak-free connections
• Follow manufacturer guidelines for hose installation and tensioning
• Regularly inspect hose and barb for wear or damage
• Refer to the GRACO manual for specific installation and maintenance procedures
