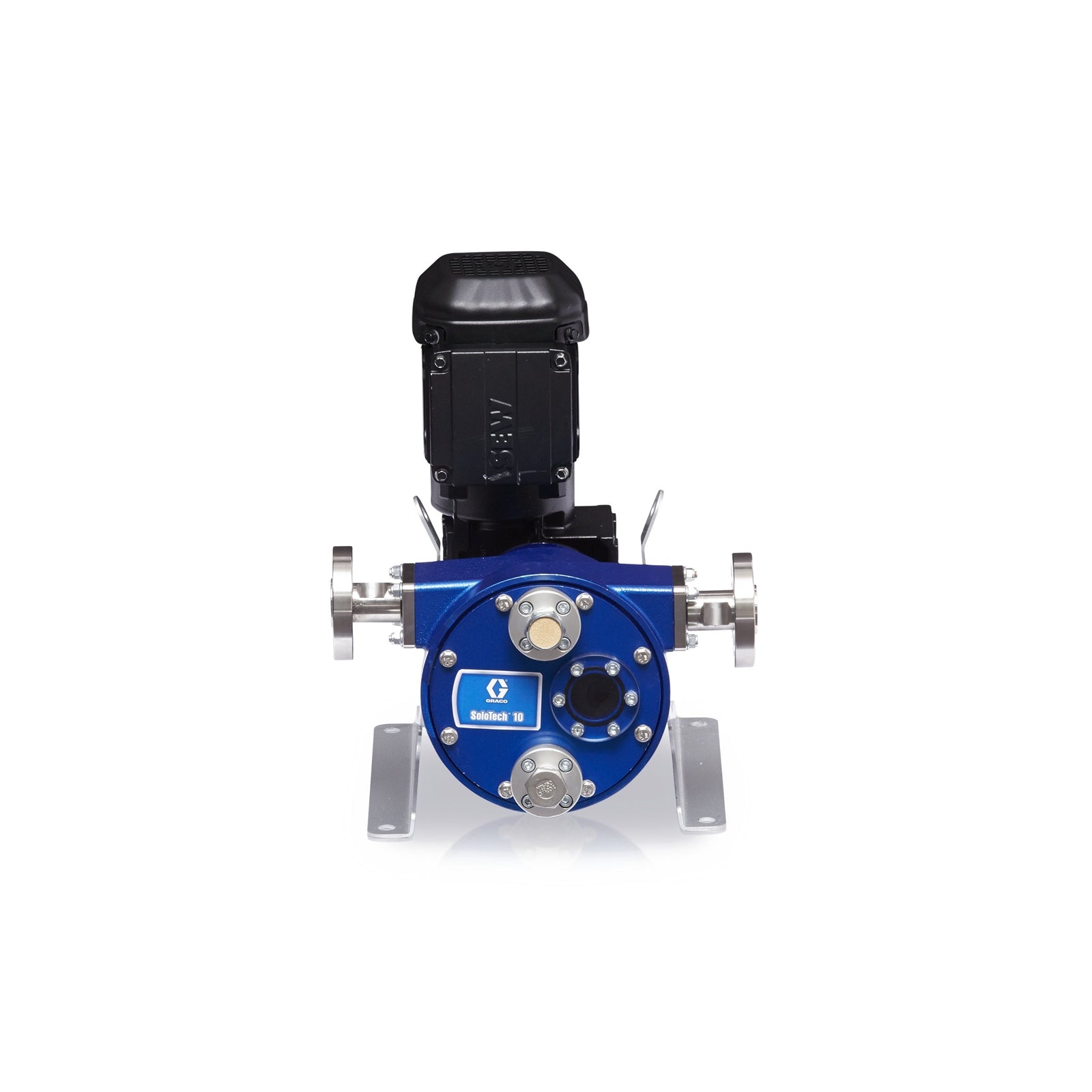

The GRACO 19Z031 is an electric peristaltic hose pump designed for industrial applications. It features an EPDM hose and PVDF barb, with an AC motor for reliable operation. This pump is engineered to deliver precise, gentle fluid transfer, making it suitable for handling a variety of industrial fluids.

Key Features:

• Electric Peristaltic Pump
• SoloTech i10
• Powder Coated Aluminum Housing, EPDM Hose, PVDF Barb
• Maximum Flow Rate: 2.5 L/min (approx. 0.66 GPM)
• Maximum Fluid Pressure: 9 bar (approx. 125 psi)
• Industrial fluid transfer applications; compatible with a range of fluids suitable for EPDM and PVDF materials
• CE
• Single roller design compresses hose through a full 360 degrees of rotation for extended hose life
• Inexpensive to maintain—no valves, seals, or glands
• Pumps are reversible for emptying lines or clearing blockages
• Only one hose compression per revolution for reduced wear
• High gear box ratio (19.5:1) for precise control

Applications:
Industrial fluid transfer, including chemical processing, water treatment, and other applications requiring gentle, precise pumping of fluids.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment of the pump with the fluid system
• Check hose and barb connections for secure fit
• Verify electrical compatibility with the AC motor
• Regularly inspect the hose for wear and replace as needed to maintain performance
