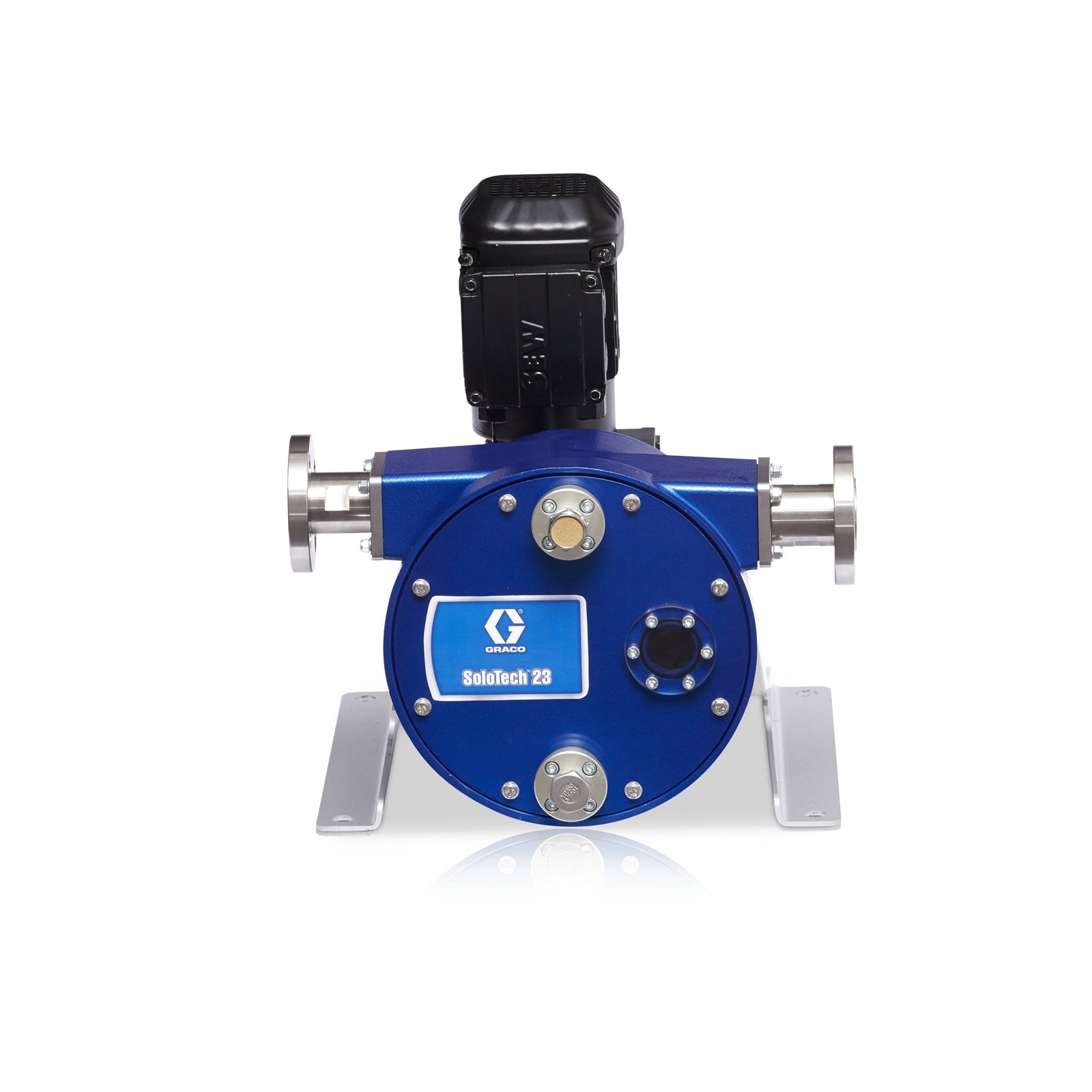

The GRACO 19Z043 is a peristaltic hose pump designed for industrial metering and transfer applications. It features an EPDM hose and a 316 stainless steel barb, powered by an AC motor. This pump is engineered for reliable, low-speed operation and is suitable for handling caustic, abrasive, or sensitive materials.

Key Features:

• Electric Peristaltic Pump
• i23 Low Speed, 23 mm hose diameter
• EPDM hose, 316 stainless steel barb, powder coated aluminum housing
• Industrial metering and transfer systems
• Single roller compresses hose through full 360° rotation for longer hose life
• No valves, seals, or glands—inexpensive to maintain
• Reversible operation for emptying lines or clearing blockages
• One-piece center section eliminates leaks and reduces maintenance
• Extended hose life due to only one compression per revolution

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive materials

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety in industrial environments.
• Ensure proper alignment of hose and barb connections
• Follow manufacturer’s torque specifications for all fittings
• Regularly inspect hose for wear and replace as needed
• Use only compatible hoses and barbs as specified by GRACO
• Consult the manual for specific wiring and motor installation instructions
