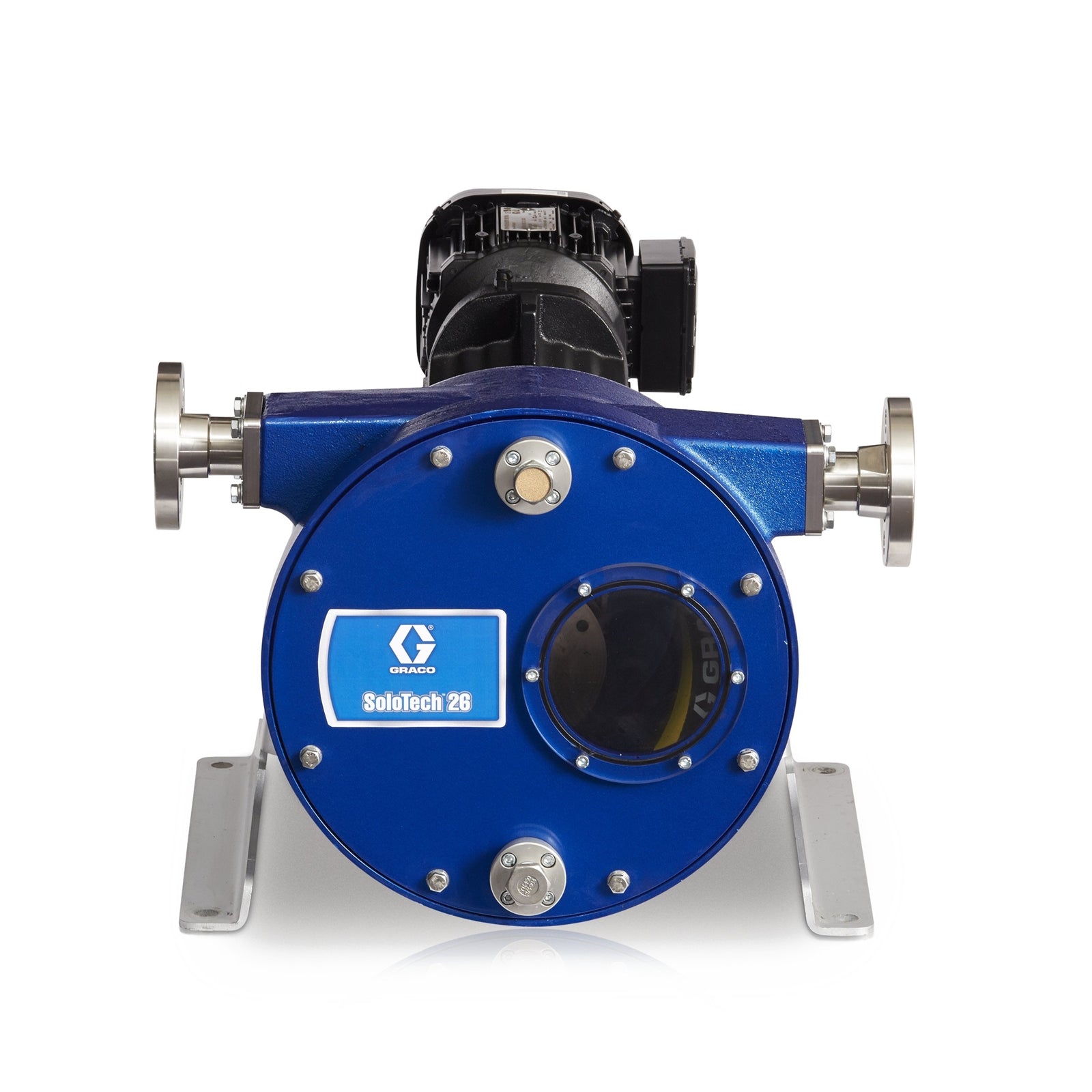

The GRACO 19Z080 SoloTech™ i26 is a high-speed peristaltic hose pump designed for industrial metering and transfer applications. It features an EPDM hose and Hastelloy-C barb, making it suitable for handling abrasive, corrosive, and shear-sensitive fluids. The pump is powered by an AC motor and is engineered for reliable, low-maintenance operation in demanding environments.

Key Features:

• Electric Peristaltic Hose Pump
• i26 (26 mm hose size)
• EPDM hose, Hastelloy-C barb, AC motor
• Maximum flow rate: 10.18 GPM (38.54 LPM) at 93 rpm (for similar model 19Z075; not explicitly specified for 19Z080, but likely similar)
• Maximum output pressure: 125 PSI (for similar model 19Z075; not explicitly specified for 19Z080, but likely similar)
• Industrial fluids, including abrasive, corrosive, and shear-sensitive materials
• CE (for similar models; not explicitly specified for 19Z080)
• Single roller compresses hose through full 360° rotation for extended hose life
• No valves, seals, or glands—inexpensive to maintain
• Reversible operation for emptying lines or clearing blockages
• Only one hose compression per revolution
• Engineered for heavy-duty, lasting performance

Applications:
Industrial metering and transfer of abrasive, corrosive, and shear-sensitive fluids. Suitable for applications where other pump types may fail due to material compatibility or maintenance requirements.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment. Non-genuine parts may compromise safety and efficiency.
• Ensure proper alignment and secure mounting of the pump
• Connect inlet and outlet hoses according to manufacturer specifications
• Verify electrical connections and motor compatibility
• Perform initial test run to check for leaks and proper operation
• Follow recommended maintenance schedules for hose inspection and replacement
• Regularly inspect hose for wear and replace as needed
• Keep pump and surrounding area clean to prevent contamination
• Monitor for unusual noise or vibration, which may indicate maintenance needs
• Use only genuine replacement parts for repairs
