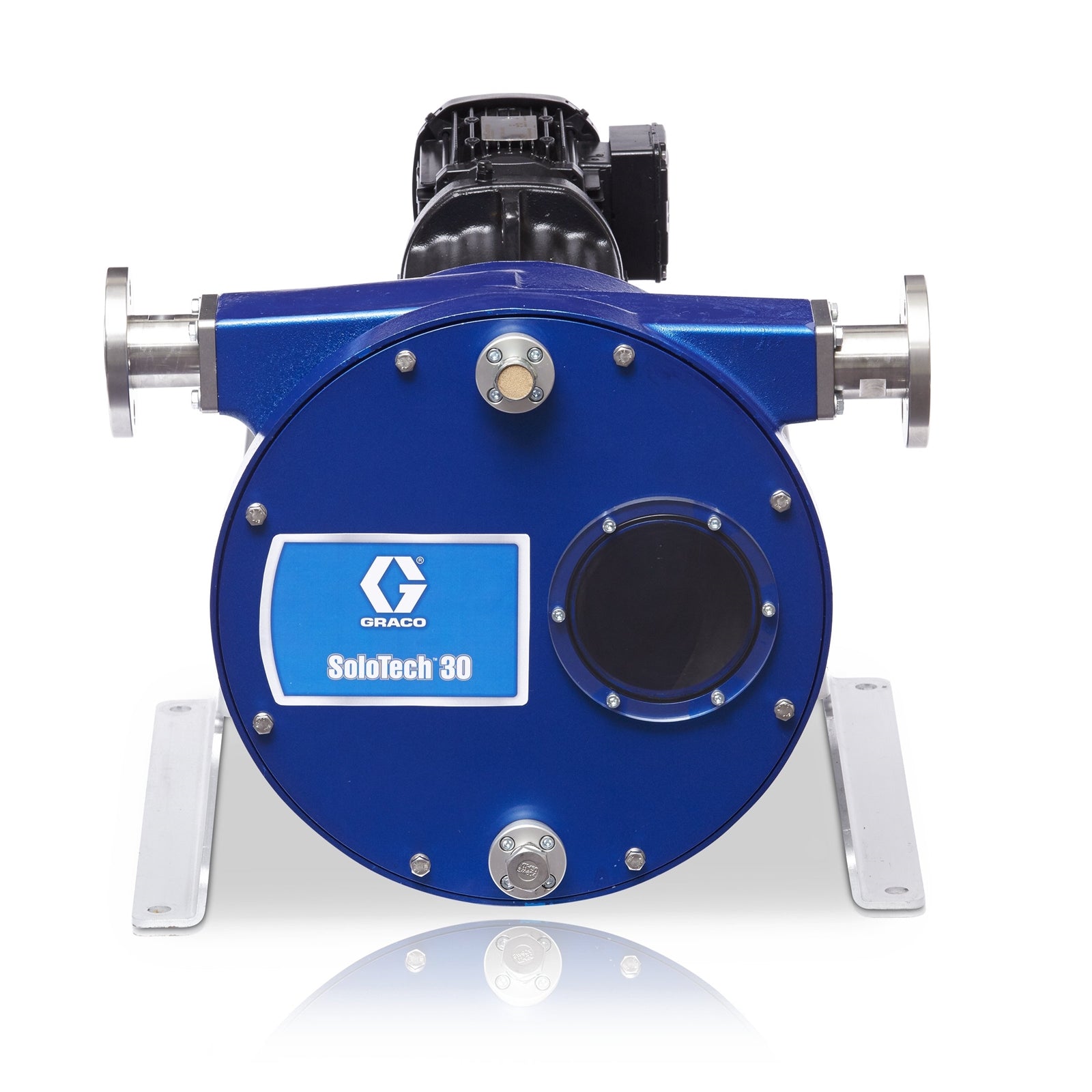

The GRACO 19Z113 is a high-speed electric peristaltic hose pump designed for industrial applications. It features a natural rubber hose and a 316 stainless steel barb, powered by an AC motor. This pump is engineered for metering or transferring caustic, abrasive, or sensitive materials, offering robust performance and reliability in demanding environments.

Key Features:

• Electric Peristaltic Pump
• SoloTech™ i30
• Powder coated aluminum housing, natural rubber hose, 316 stainless steel barb
• Maximum flow rate: 59.8 L/min (varies by model and configuration)
• Maximum fluid pressure: 9 bar (900 kPa)
• Industrial applications, compatible with caustic, abrasive, or sensitive materials
• CE (ATEX may be available depending on configuration)
• Single roller design for improved hose life and reduced maintenance
• Only one hose compression per revolution
• No valves, seals, or glands required
• Pump is reversible for emptying lines or clearing blockages
• Easy to install or remove hose barb assembly
• Removable cover with large sight window for easy access and maintenance
• Adjustable feet for improved mounting flexibility
• Maintenance reminders and batch dispense mode (on some models)

Applications:
Industrial metering and transfer of caustic, abrasive, or sensitive materials; suitable for large-scale mining, agriculture, and other heavy-duty environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment. Non-genuine parts may compromise reliability and void warranties.
• Ensure the pump is mounted securely using adjustable feet for stability
• Check hose and barb assembly for proper fit and secure connection
• Follow manufacturer guidelines for electrical connections and safety
• Regularly inspect hose for wear and replace as needed
• Utilize the removable cover for easy access during maintenance
• Consult the manual for specific installation and maintenance procedures
