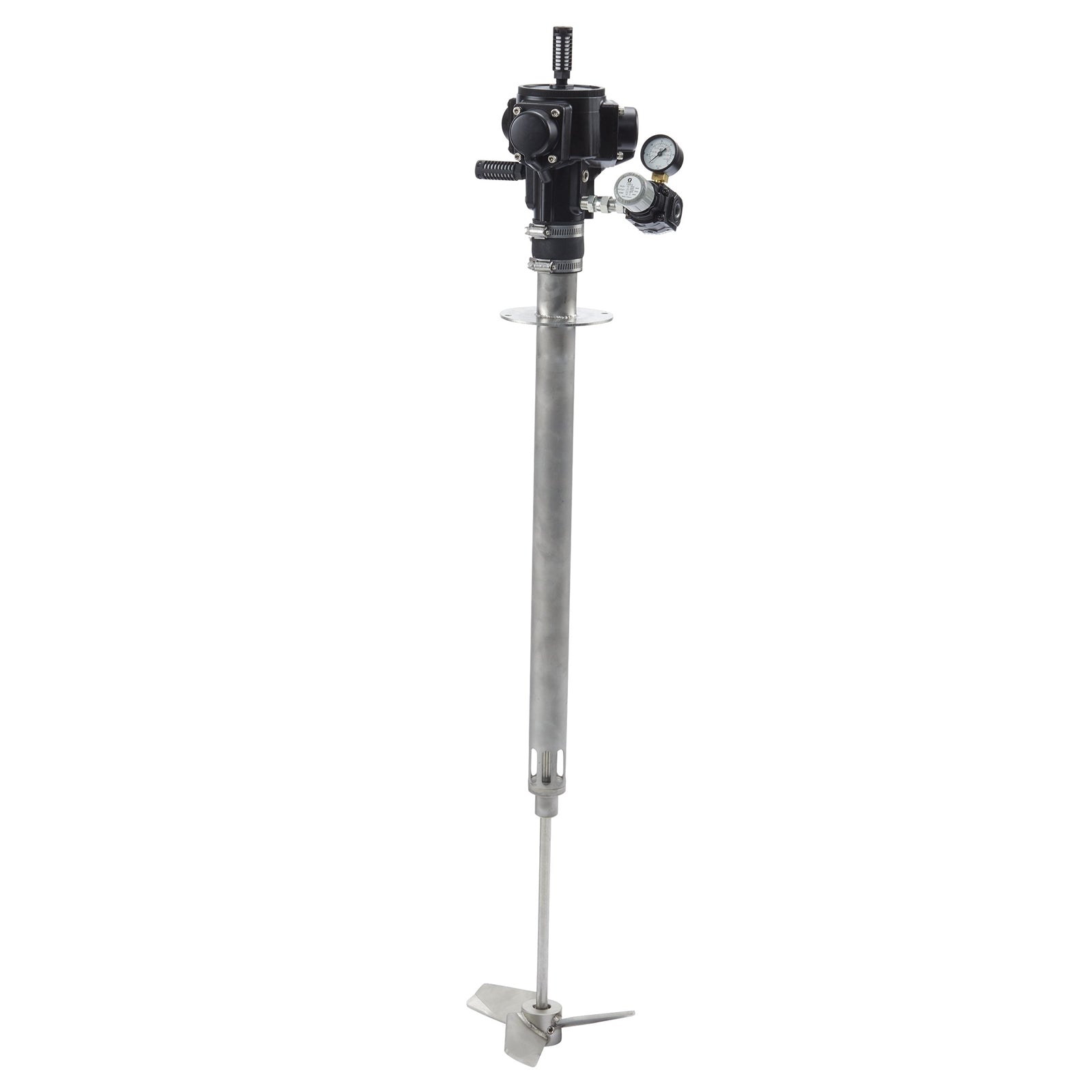

The GRACO 25M481 is a stainless steel direct drive agitator designed for mixing applications in 30/55 gallon tanks. It features a single 8-inch (20 cm) stainless steel impeller and is intended for use with low to medium viscosity fluids in industrial mixing environments.

Key Features:

• Agitator
• 25M481 / 30/55 Gallon, 1 Stainless Steel 8-inch (20 cm) Impeller
• Stainless Steel, Polyether Ether Ketone (PEEK) wetted parts
• Maximum working pressure: 70 PSI
• Designed for use with 30/55 gallon mix tanks or drum covers
• CE, EX
• Radial piston air motor driven for reliability and simplicity
• Operates at low to medium speed (< 500 rpm)
• Suitable for low to medium viscosity (< 500 cP)
• Uses less compressed air than most rotary vane air motors
• Quick installation and quiet operation
• Easy speed adjustment with fine-tuning knob
• No air line lubrication required for maintenance
• Optional DataTrak for speed monitoring and over-speed alert
• Can be controlled with GRACO's Intelligent Paint Kitchen (IPK)
• Sound pressure level at 70 psig: less than 75 dBA

Applications:
Ideal for mixing low to medium viscosity fluids in industrial tanks, commonly used in paint, coatings, adhesives, and chemical processing applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety in mixing operations.
• Mounts directly to mix tank or drum cover
• Ensure proper alignment and secure mounting
• Connect air supply to 1/4 in. NPT air inlet
• Adjust speed using the fine-tuning knob for optimal mixing
• Regularly inspect for wear and proper operation
• No air line lubrication required
• Periodically check for leaks and wear
• Clean impeller and shaft as needed
• Monitor speed and performance using optional DataTrak system
