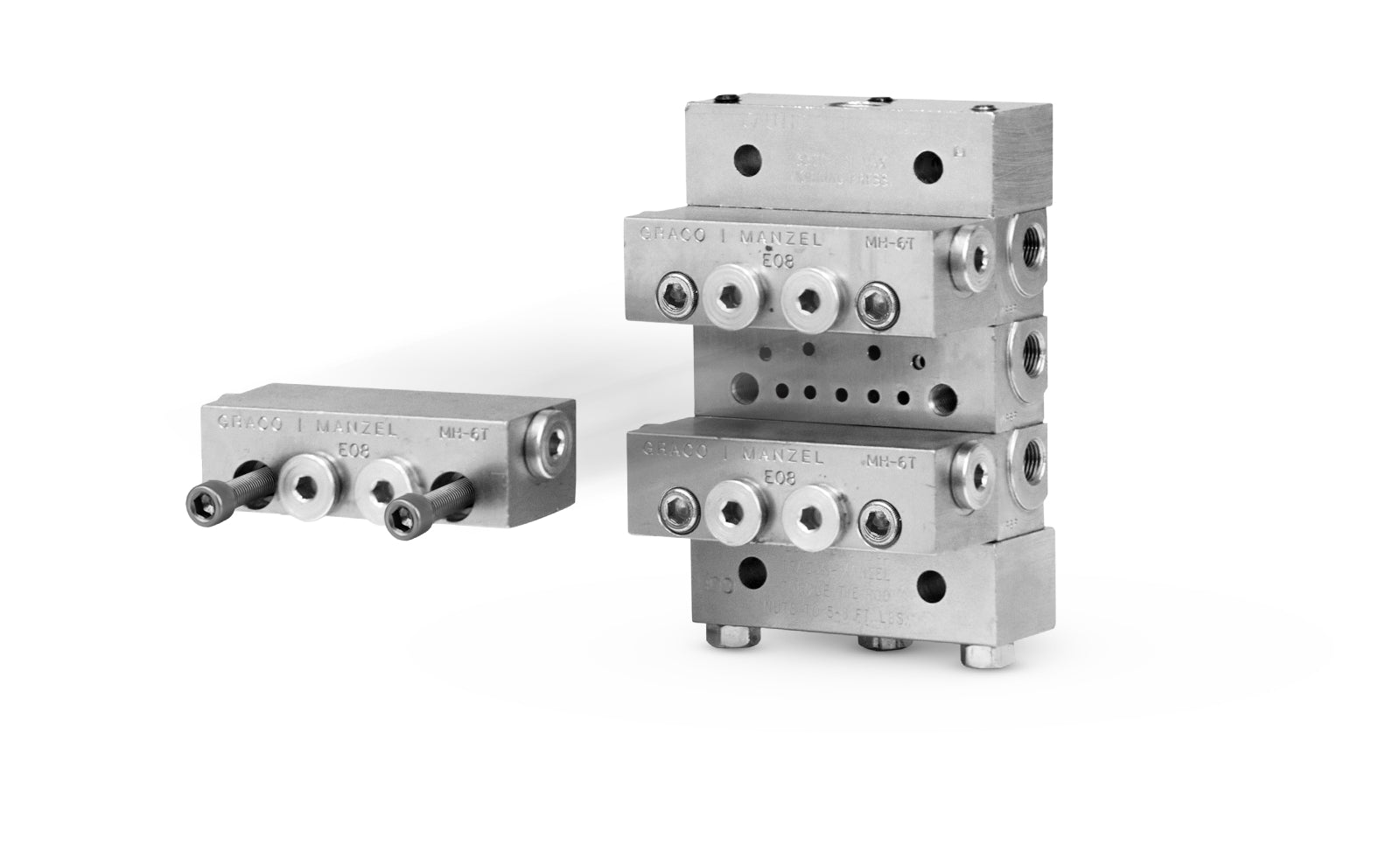

The Manzel® MHH Modular Divider Valve .015 Single is a precision-engineered steel valve designed for highly accurate lubrication delivery in demanding high-pressure grease and oil applications. It is intended for use within GRACO automatic lubrication systems, particularly for in-plant machinery and compressor equipment.

Key Features:

• Divider Valve
• Manzel® MHH, .015 in³ per piston stroke
• Steel
• Discharge per piston stroke: 0.015 in³
• Maximum working pressure: 7500 psi (517 bar, 51700 kPa)
• Compatible with oil and grease (maximum NLGI Grade #2)
• Modular, stackable sub-plate design for easy integration and maintenance
• Cycle indicator pin for monitoring operation
• Quick change valve sections for efficient service
• Highly reliable for demanding industrial environments

Applications:
Used in automatic lubrication systems for in-plant machinery, compressor equipment, gas engines, and similar industrial applications requiring positive oil or grease lubrication at high pressures.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Mount using provided mounting holes (typical torque: 8-9 ft-lbs for mounting screws, 5-8 ft-lbs for tie rod and nut)
• Ensure proper alignment and secure all connections
• Torque bleed screws to 1-2 ft-lbs
• Use appropriate thread types (NPS, SAE) for inlet and outlet connections
• Regularly inspect cycle indicator pin for proper operation
• Check for leaks and ensure all connections remain tight
• Replace valve sections as needed using quick-change feature
