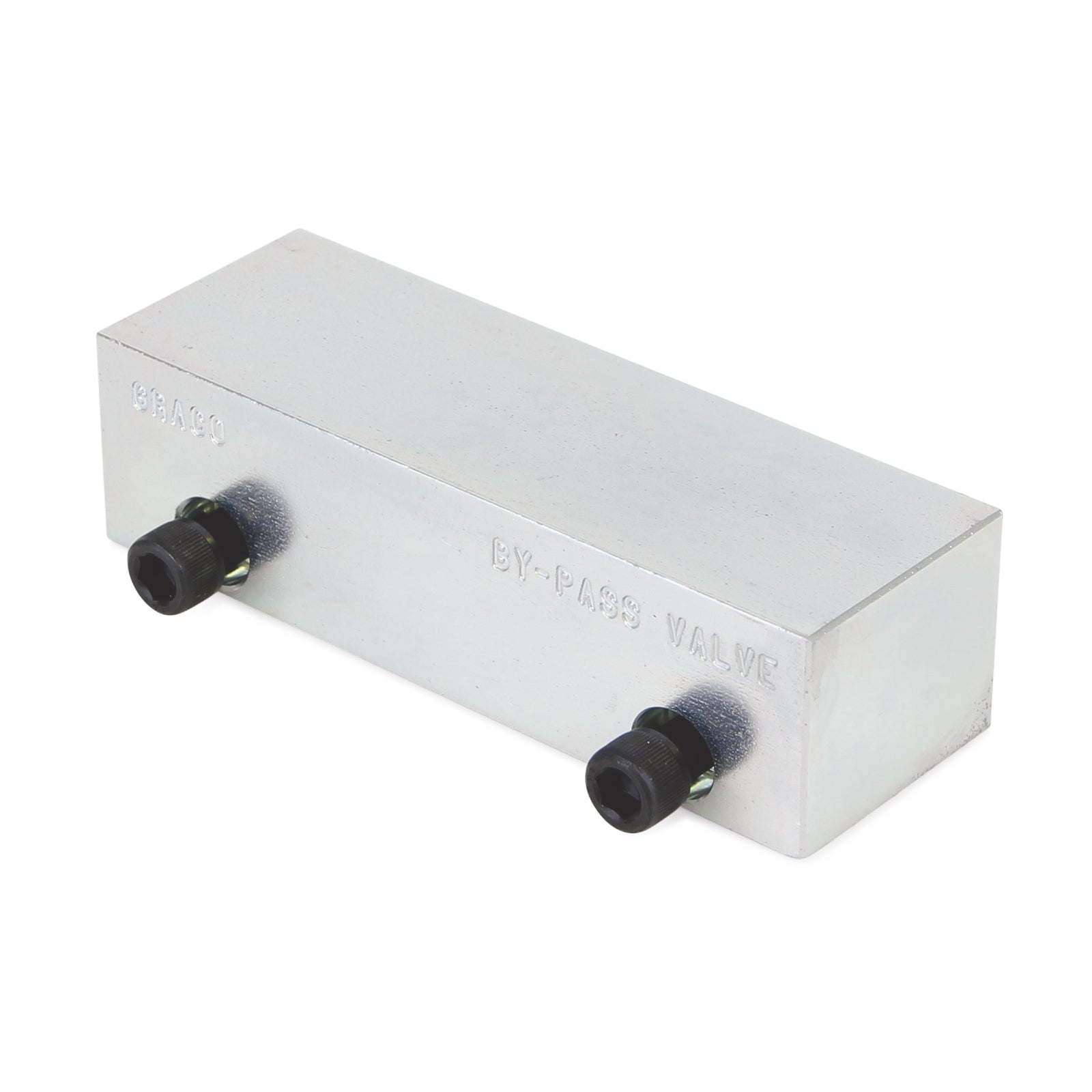

The GRACO 562660 is a bypass block (bypass section) designed for use with Trabon® MSP Divider Valves. It is used to eliminate a piston section or provide for added lube points in the future within modular lubrication systems. Material is typically corrosion-protected steel or stainless steel, depending on configuration and application.

Key Features:

• Bypass Block (Bypass Section)
• MSP Bypass Section
• Corrosion-protected steel or stainless steel (depending on configuration)
• Up to 3,500 psi (241 bar) (when used with compatible MSP Divider Valve assemblies)
• For use with Trabon® MSP Divider Valves
• Modular, stackable design for easy installation and flexibility
• Allows elimination of piston sections or future expansion of lube points
• Designed for use in modular lubrication systems
• Supports up to 22 lube points per valve assembly (when used with compatible MSP Divider Valve sections)
• Fluoroelastomer o-ring sealing for leak prevention and reduced maintenance

Applications:
Used in automatic lubrication systems for on-road vehicles, off-road equipment, and in-plant machinery. Suitable for oil or grease lubrication up to NLGI #2.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• When using bypass sections, the divider valve assembly must have a minimum of 3 working sections in addition to one or more bypass sections
• Follow manufacturer guidelines for assembly and maintenance
• Ensure proper sealing with o-rings to prevent leaks
• Consult the equipment manual for specific installation instructions
