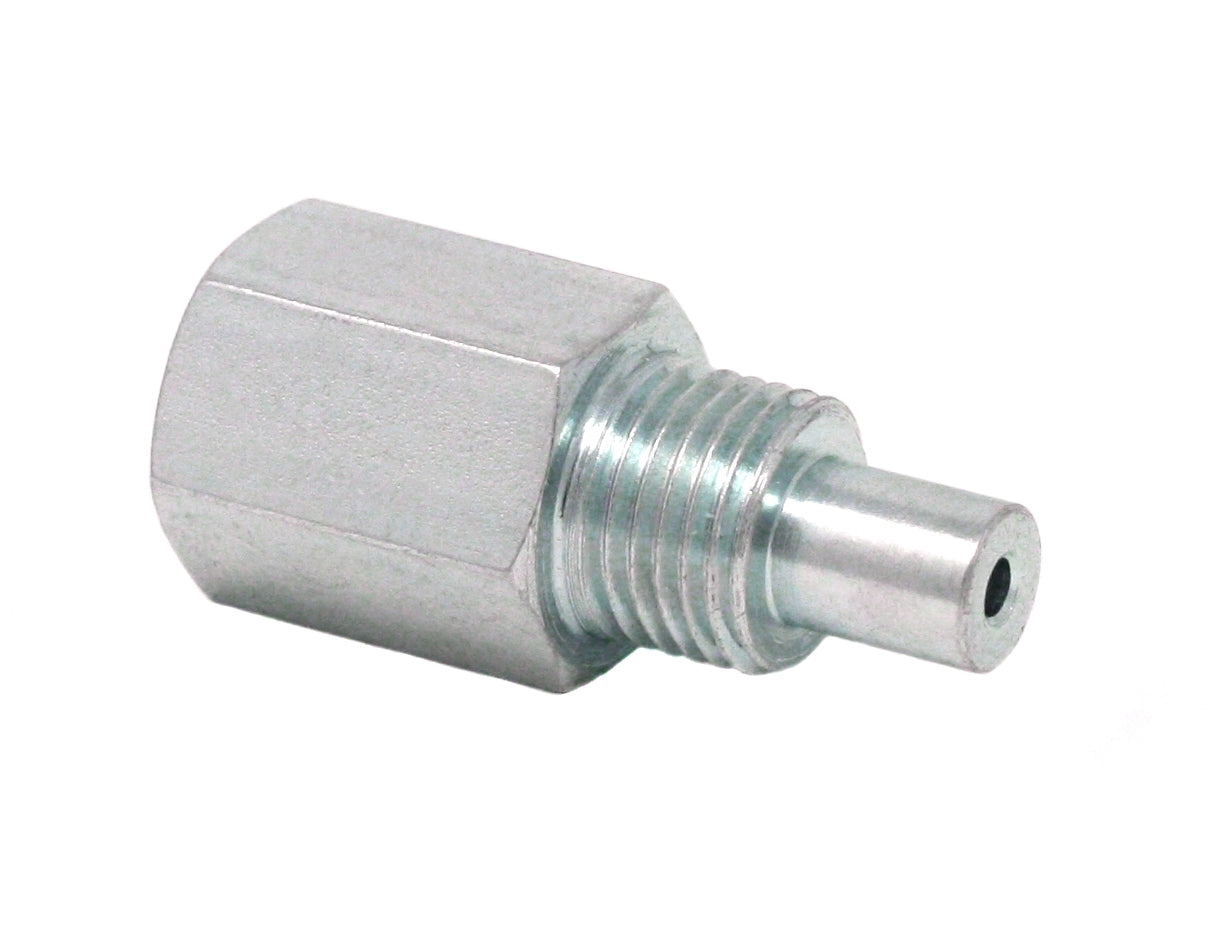

The GRACO 17L654 is a threaded outlet fitting designed for use with GRACO CSP (Centralized Lubrication System) valves. It features a female M10 x 1/8 NPT thread and includes a check valve for reliable, leak-free operation. This fitting is intended to connect lubrication lines to CSP valves, ensuring secure and efficient delivery of lubricant to various lube points in industrial equipment.

Key Features:

• Outlet fitting
• M10 x 1/8 NPT female
• 5076 psi (maximum working pressure)
• Designed for use with GRACO CSP valves and compatible with 1/8 inch NPT threaded connections
• Check valve for leak prevention
• Threaded connection for secure attachment
• High-pressure capability suitable for industrial lubrication systems
• Reliable performance in demanding environments

Applications:
Used in centralized lubrication systems for industrial machinery, including mining, manufacturing, and agricultural equipment. Ensures secure and efficient delivery of lubricant to multiple lube points.

Installation Notes:

• Using genuine GRACO fittings ensures compatibility, reliability, and optimal performance of the lubrication system. Non-genuine parts may compromise system integrity and safety.
• Always use GRACO outlet fittings for your applications to ensure proper fit and function.
• Connect fittings to GRACO-designed studs for secure connections.
• Follow recommended torque specifications for installation (specific torque not listed for this exact fitting, but similar fittings recommend 12–14 ft.-lbs for outlet fittings).
• Inspect fittings and tubing for damage before installation.
• Ensure all connections are tight and leak-free before system operation.
