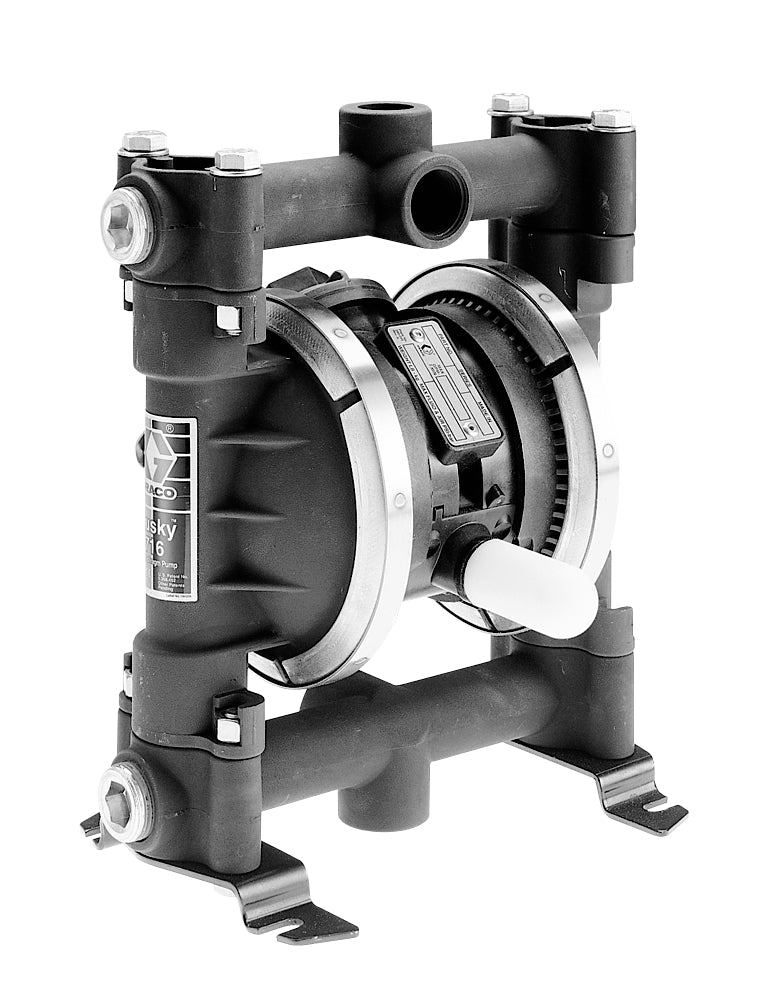

The GRACO Husky 716 AL Transfer Pump Package is an air-operated double diaphragm pump constructed from aluminum, designed for reliable and efficient transfer of fluids in industrial and vehicle service applications. It features an AC (acetal) seat and Santoprene (SP) ball and diaphragm for enhanced chemical resistance and durability.

Key Features:

• Air-operated double diaphragm pump
• Husky 716 AL
• Aluminum body, AC (acetal) seat, Santoprene (SP) ball and diaphragm
• Maximum free flow delivery: 16 gpm (61 lpm)
• Maximum fluid working pressure: 100 psi (7 bar, 0.7 MPa)
• Designed for use with a wide range of fluids in industrial and vehicle service environments
• No mechanical seals, reducing risk of fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler
• Center- and end-porting options
• External controller for remote control capabilities (on some packages)
• Maximum suction lift: 15 ft (4.5 m) dry
• Maximum size pumpable solids: 0.09 in (2.5 mm)
• Maximum ambient operating temperature: 180°F (82°C)
• Maximum air consumption: 28 scfm (0.672 m³/min)
• Air pressure operating range: 30 to 100 psi (2.1 to 7 bar, 0.21 to 0.7 MPa)

Applications:
Ideal for transferring fluids in vehicle service, industrial maintenance, lubrication, and other applications requiring reliable, leak-free fluid handling.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with GRACO equipment.
• Ensure proper alignment and secure mounting of the pump
• Connect air supply within the specified pressure range (30–100 psi)
• Use appropriate fittings and hoses for the intended fluid and pressure
• Regularly inspect and maintain diaphragms, balls, and seats for wear or damage
• Follow manufacturer guidelines for installation and maintenance to maximize pump life and efficiency
