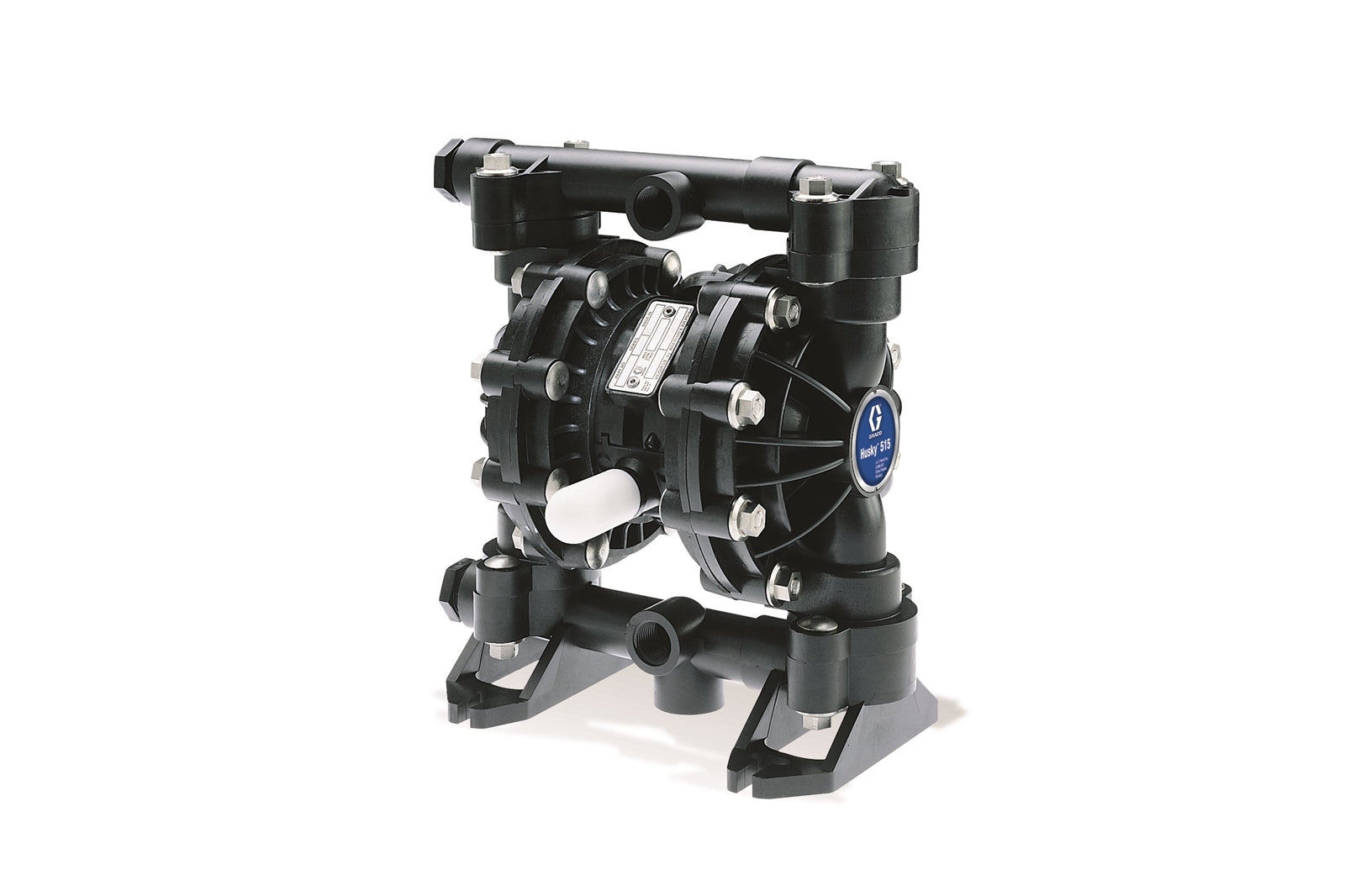

The Husky 515 is an air-operated double diaphragm pump designed for transferring a wide range of fluids. It is available in acetal, polypropylene, and PVDF materials, making it suitable for various industrial applications, including chemical transfer, water treatment, and process industries. The included drum riser tube facilitates safe and efficient fluid transfer from drums or containers.

Key Features:

• Air-Operated Double Diaphragm Pump
• Husky 515, 1/2 inch (12.7 mm) connection
• Acetal, Polypropylene, or PVDF (depending on model)
• Maximum free flow delivery: 15 gpm (57 lpm)
• Maximum fluid working pressure: 100 psi (7 bar, 0.7 MPa)
• Compatible with a wide range of fluids, including chemicals and water; maximum pumpable solids: 0.09 in (2.5 mm)
• ATEX T-code rating dependent on fluid temperature; see technical data for specific model
• Stall-free low pulsation air valve for smooth and rapid changeover
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa) air input
• Maximum pump speed: 400 cpm
• Maximum suction lift: 15 ft (4.5 m) dry
• Maximum ambient operating temperature: up to 180°F (82°C) for acetal, 150°F (66°C) for polypropylene
• Reliable, easy to maintain, and suitable for continuous duty cycles

Applications:
Used for evacuating and transferring fluids in industrial, chemical, water treatment, and process applications. Suitable for professional use in environments requiring robust and reliable fluid transfer solutions.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the pump.
• Ensure proper torque (80 to 100 in-lb, 9.0 to 13.6 N-m) when assembling components
• Apply grease to lapped face and bores of center housing before installation
• Seal lips face clip end (smaller end) of carriage plunger; install with clip ends facing toward center of center housing
• For detailed installation and maintenance, refer to the equipment manual or consult a GRACO specialist
