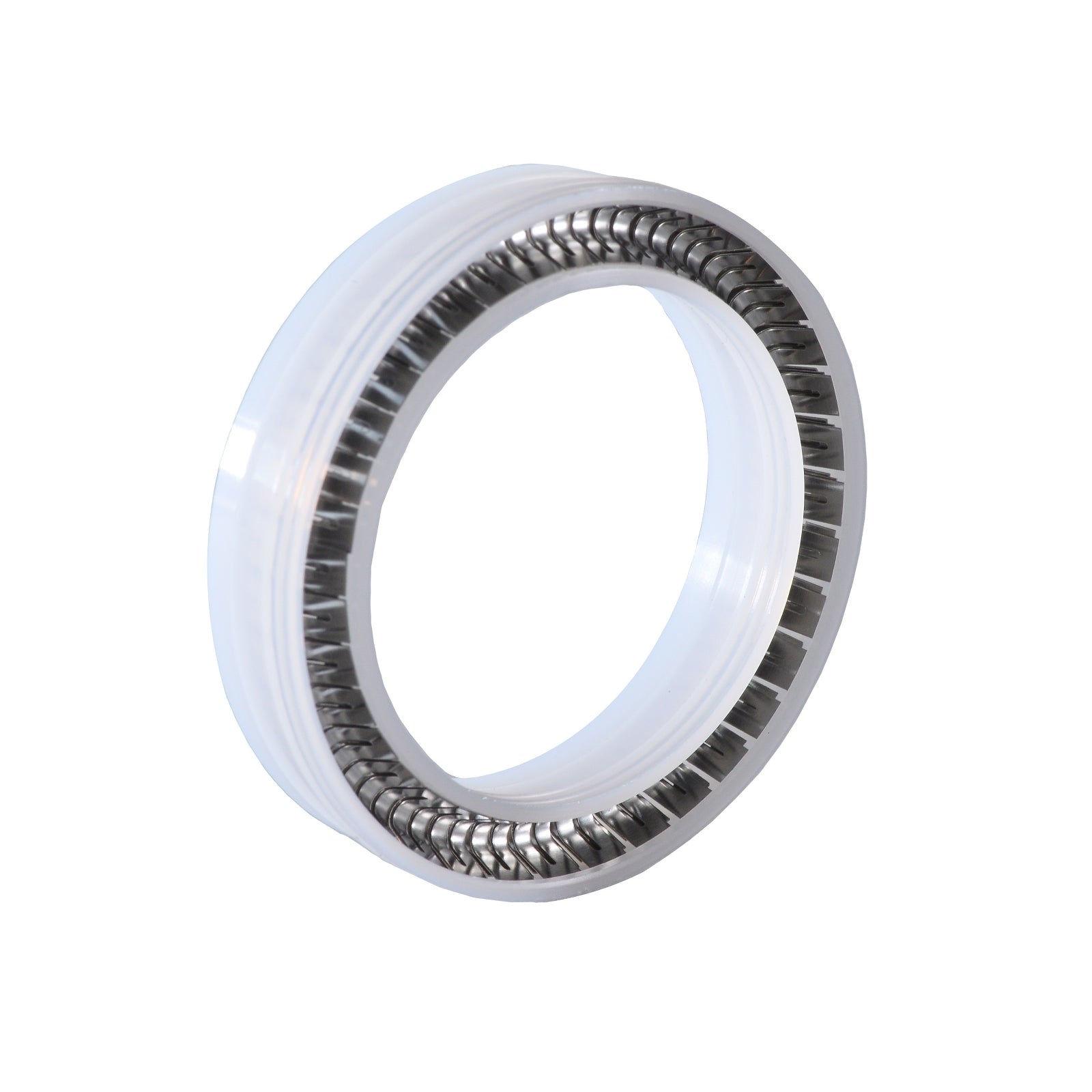

The GRACO 24L029 is a U-cup piston seal designed for use in GRACO displacement pumps. It is typically made from durable elastomeric materials suitable for sealing pistons in fluid handling equipment. Its primary function is to maintain a reliable seal between the piston and cylinder, preventing fluid leakage and ensuring efficient pump operation.

Key Features:

• U-cup piston seal
• 75cc
• Designed for GRACO displacement pumps (e.g., 3A2313A series)
• Designed for reliable sealing in piston applications
• Supports efficient pump operation
• Ease of maintenance (as a consumable part)

Applications:
Used in GRACO displacement pumps for fluid transfer and metering applications, commonly found in industrial lubrication, paint, and chemical handling systems.

Installation Notes:

• Using genuine GRACO seals ensures optimal performance, longevity, and compatibility with GRACO equipment, reducing the risk of leaks and equipment failure.
• Ensure the pump is depressurized and isolated before replacing the seal
• Clean the piston and cylinder surfaces thoroughly before installation
• Follow torque and assembly specifications as outlined in the GRACO manual
• Inspect the seal for damage before installation and replace if necessary
