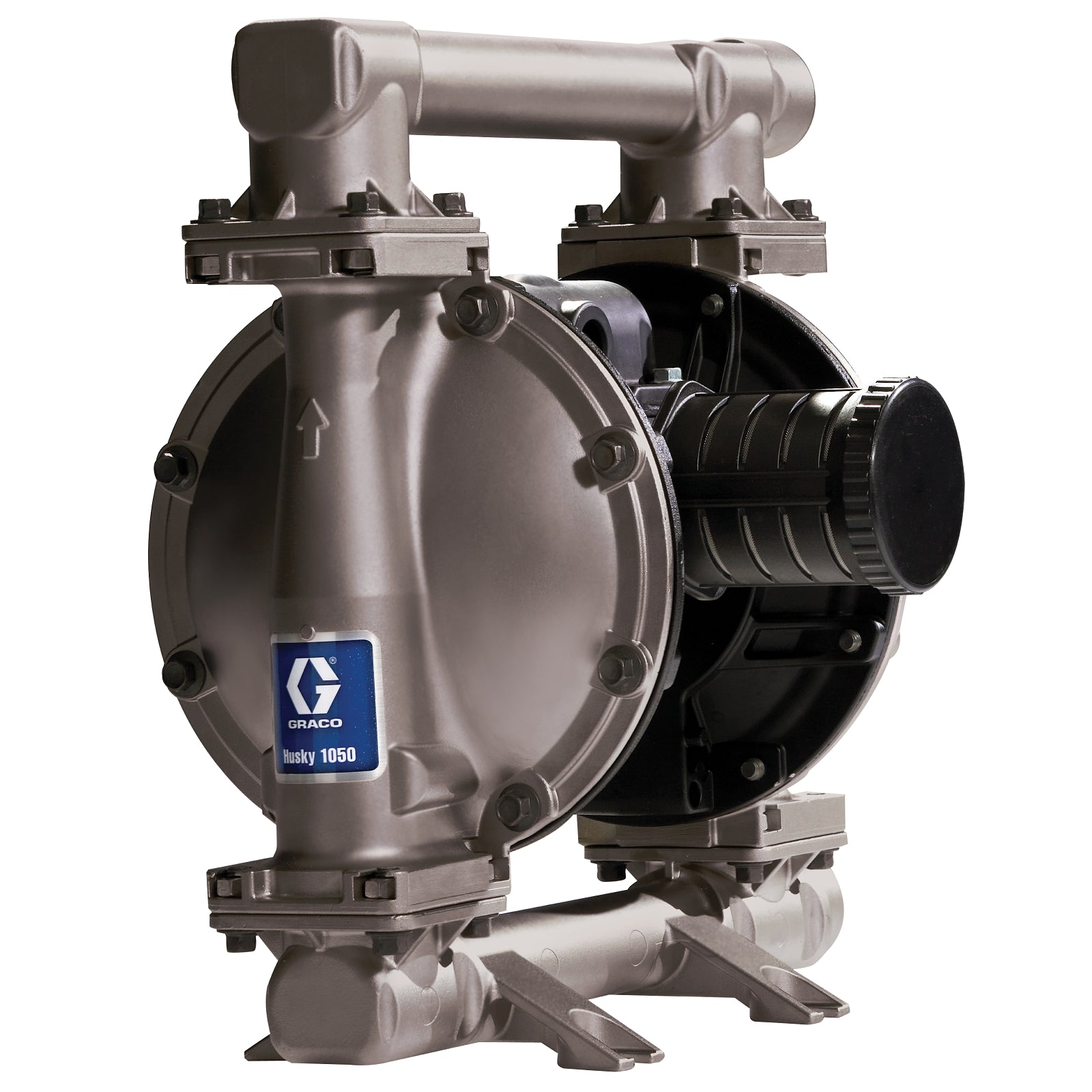

The GRACO Husky 1050 SS is an air-operated double diaphragm pump designed for reliable transfer of fluids, including those with small solids. This specific configuration features a 1 in. (25.4 mm) BSPT connection, an aluminum center section, stainless steel seats and balls, and a PTFE diaphragm. It is engineered for demanding industrial applications requiring chemical resistance and durability.

Key Features:

• Pneumatic Diaphragm Pump
• Husky 1050 SS, 1 in. (25.4 mm) BSPT
• Aluminum center section, stainless steel seats and balls, PTFE diaphragm
• Maximum free flow delivery: 50 gpm (189 lpm)
• Maximum fluid working pressure: 125 psi (8.6 bar, 0.86 MPa)
• Suitable for a wide range of fluids, including those with solids up to 1/8 in. (3.2 mm)
• UL listed
• Stall-free low pulsation air valve for smooth and rapid changeover
• One-piece center section reduces leaks and maintenance
• Designed for high reliability and ease of maintenance
• Handles fluids with solids up to 1/8 in. (3.2 mm)
• Chemical-resistant PTFE diaphragm for harsh environments

Applications:
Ideal for transferring water, antifreeze, fuel, and other industrial fluids, especially in environments requiring chemical resistance and the ability to handle small solids. Commonly used in vehicle service, mining, agriculture, and general industrial maintenance.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise pump integrity and void warranties.
• Ensure proper alignment and secure mounting of the pump
• Use appropriate fittings and seals for the BSPT connection
• Follow recommended air supply and pressure guidelines
• Regularly inspect diaphragms and seats for wear and replace as needed
• Refer to the GRACO manual for specific installation and maintenance procedures
