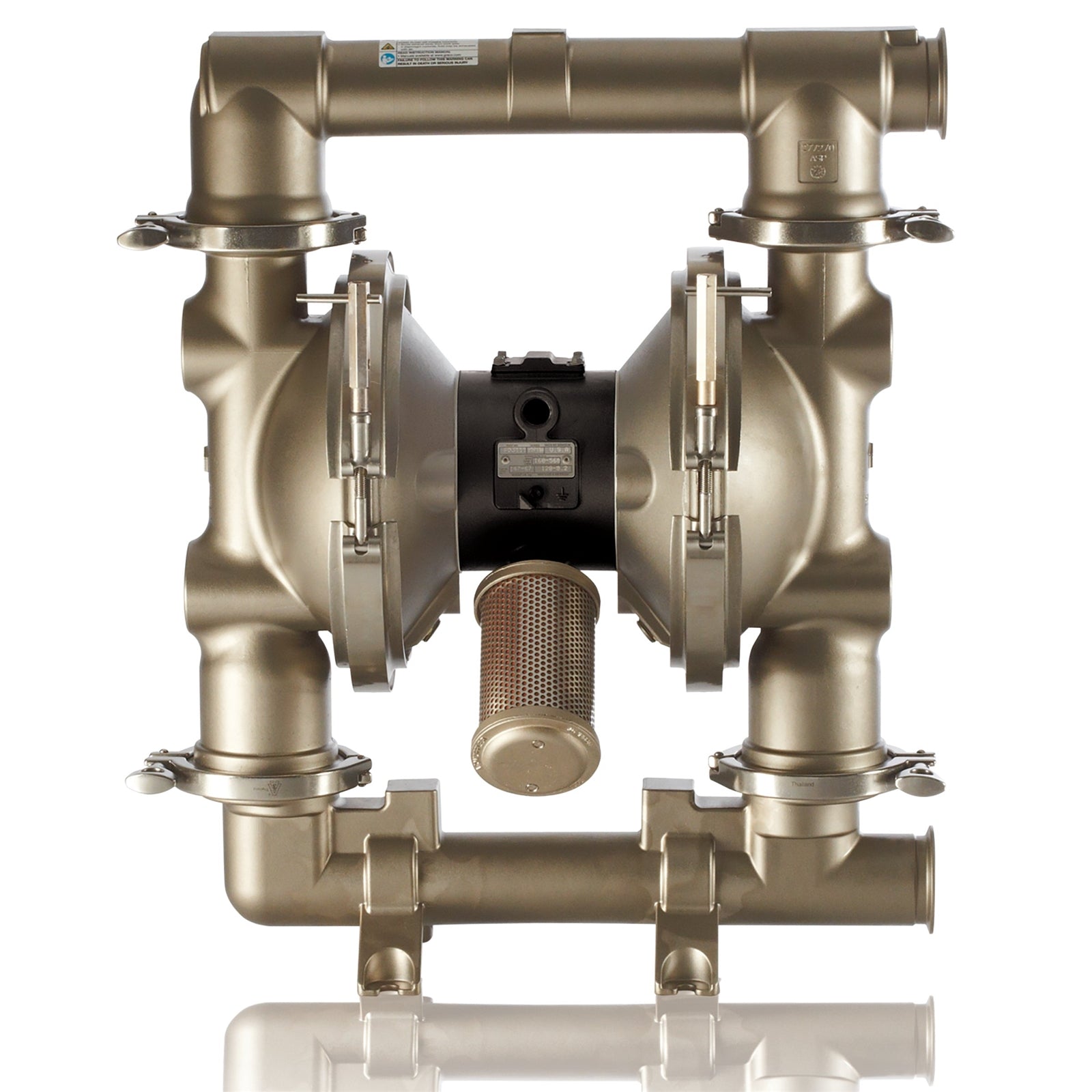

The GRACO FA1222 SaniForce 1040 is a 1-inch sanitary, air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer in food, beverage, and pharmaceutical applications. It features an aluminum center section, stainless steel seats, and solid plastic (SP) balls and diaphragms, ensuring compatibility with sensitive fluids and easy cleaning.

Key Features:

• Pneumatic (air-operated) double diaphragm pump
• SaniForce 1040, 1" FG SST
• Aluminum center, stainless steel seats, solid plastic (SP) balls and diaphragms
• Up to 41 gpm (155 lpm) or 4.8–9.3 m³/hr (102–204 L/min)
• Up to 120 psi (8 bar)
• Suitable for beer, cider, and other beverages; can pass solids up to 0.125 in. (3.2 mm)
• CE, ATEX, IECEx, 1935/2004/EC, FDA (125 Ra)
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry conditions
• Quick knock-down design for easy cleaning and maintenance
• Externally serviceable air valves for leading efficiency and reduced downtime
• Patented unstallable unbalanced air valve design prevents stalling
• Exhaust valves divert cold air from ice-prone components to prevent freezing
• Gentle pumping action minimizes frothing and fluid separation
• Can run dry without damage
• All fluid contact materials are FDA-compliant

Applications:
Ideal for transferring beer, cider, and other beverages in food and beverage processing. Suitable for applications requiring hygienic, gentle, and reliable fluid handling with minimal mechanical impact.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper air supply and pressure reduction valve are used
• Use tri-clamp connections for quick assembly and disassembly
• Follow manufacturer guidelines for cleaning and maintenance
• Regularly inspect and service air valves and diaphragms to maintain efficiency
• Preventative maintenance is recommended for peak performance and longevity
