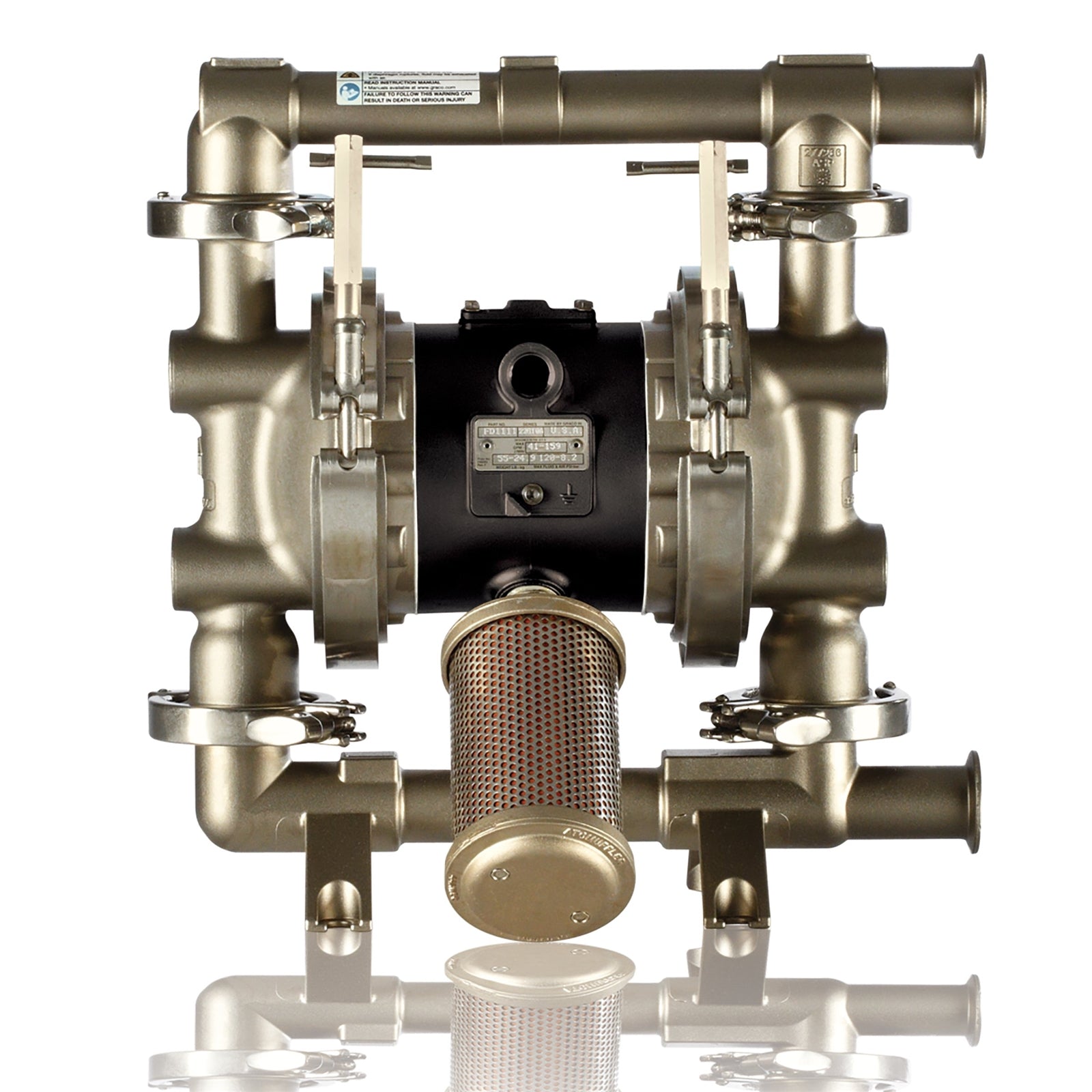

The GRACO FA2232 SaniForce 1590 is a 1.5-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It features a sanitary stainless steel fluid section, aluminum center with Buna seals, stainless steel (316) seats, CW (Santoprene) balls, and SP (Santoprene) diaphragms. This pump is intended for use in applications requiring high cleanliness and reliability, such as food, beverage, cosmetics, and pharmaceutical industries.

Key Features:

• Air-operated double diaphragm (AODD) pump
• SaniForce 1590, 1.5" (38 mm)
• Sanitary stainless steel fluid section, aluminum center with Buna seals, 316 stainless steel seats, Santoprene balls and diaphragms, EPDM O-rings
• Up to 90–100 gpm (341–379 lpm)
• Max. input/output pressure: 120 psi
• Tri-clamp (sanitary flange) connections, suitable for hygienic transfer applications
• FDA compliant (125 Ra), meets CFR Title 21
• 360-degree rotation for draining and servicing
• Tri-clamp connections for easy cleaning and minimal downtime
• Designed for rigorous, continuous use with quick knockdown for sanitation
• CIP (Clean-in-Place) compatible
• Lube-free, non-sticking air valve with external serviceability
• All fluid contact materials are FDA-compliant

Applications:
Ideal for hygienic transfer in food, beverage, cosmetics, and pharmaceutical industries; suitable for personal care and high care food transfer

Installation Notes:

• Ensures compatibility, reliability, and compliance with industry standards
• Ensure proper alignment of tri-clamp connections for leak-free operation
• Rotate pump 360 degrees for complete draining and easy servicing
• Follow manufacturer guidelines for air supply and pressure settings
• Regularly inspect and replace diaphragms, balls, and O-rings as part of preventive maintenance
