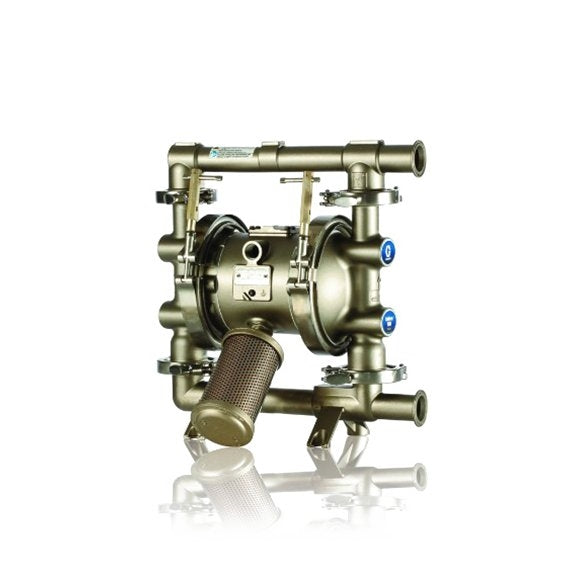

The GRACO FD1133 SaniForce 1040 is a 1-inch air-operated double diaphragm (AODD) pump designed for sanitary applications. It features a stainless steel center section, stainless steel seats, polychloroprene weighted balls, and PTFE overmolded diaphragms. This pump is intended for use in food, beverage, and pharmaceutical industries where hygienic, leak-free fluid transfer is required.

Key Features:

• Air-operated double diaphragm (AODD) pump
• SaniForce 1040, 1 inch
• Sanitary stainless steel fluid section, stainless steel center section, 316 stainless steel seats, polychloroprene weighted balls, PTFE overmolded diaphragms, PTFE O-rings
• Up to 40 gpm (151 lpm)
• Up to 120 psi (8.4 bar)
• Tri-clamp (1" sanitary flange) connections, compatible with food-grade and sanitary fluids
• FDA compliant materials, meets United States Code of Federal Regulations (CFR) Title 21, EC 1935/2004
• Seal-less diaphragm pump design eliminates leaking
• Patented, lube-free air valve for increased durability and reduced repair time
• Three-way pilot valve for no-stick operation
• 100% externally serviceable air valve
• All fluid contact materials are FDA-compliant
• Industry-leading, durable, and maintenance-free air valves
• Longer diaphragm life in abrasive applications with PTFE overmolded diaphragms

Applications:
Ideal for food, beverage, and pharmaceutical industries requiring hygienic, high-flow, and leak-free fluid transfer. Suitable for applications where portability, reliability, and ease of maintenance are important.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure all connections are properly tightened and sealed to prevent leaks
• Use appropriate sanitary fittings (Tri-clamp) for inlet and outlet
• Verify compatibility of fluid with pump materials before installation
• Regularly inspect diaphragms and valves for wear and replace as needed
• Follow manufacturer guidelines for air supply and pressure settings
• Perform routine inspections of diaphragms, balls, and seals
• Clean pump thoroughly after use, especially in food and pharmaceutical applications
• Replace worn or damaged parts with genuine GRACO components
• Keep air supply clean and dry to prevent valve issues
