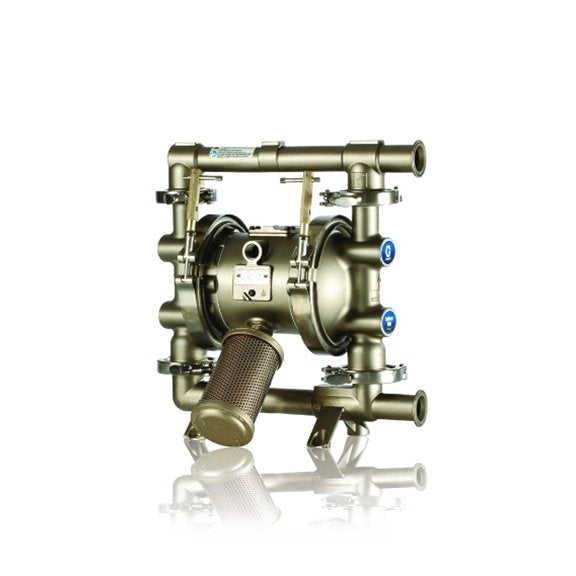

The GRACO FD1222 SaniForce 1040 is a 1-inch sanitary stainless steel (316) air-operated double diaphragm pump designed for hygienic, high-flow applications, particularly in food and beverage processing. It features a seal-less diaphragm design to prevent leaks and is constructed for easy cleaning and maintenance.

Key Features:

• Air-operated double diaphragm pump (AODD)
• SaniForce 1040, 1" FG SST
• Sanitary stainless steel (316) fluid section, stainless steel standard air valve center section, 316 stainless steel seats, Santoprene balls, Santoprene diaphragms, EPDM O-rings
• Up to 41 gpm (155 lpm)
• Up to 120 psi (8 bar)
• Tri-Clamp (sanitary flange) connections, suitable for food, beverage, and pharmaceutical applications
• FDA (125 Ra)
• Seal-less diaphragm design eliminates leaking
• Easy to clean and maintain
• Durable and maintenance-free air valve
• High flow rate for demanding applications
• Sanitary construction for hygienic environments

Applications:
Ideal for food, beverage, and pharmaceutical industries where hygienic, leak-free, and easy-to-clean pumps are required. Suitable for high-flow rate applications involving viscous or abrasive fluids.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure all connections are secure and properly aligned before operation
• Use appropriate gaskets and seals for sanitary applications
• Follow manufacturer guidelines for cleaning and maintenance
• Regularly inspect diaphragms and O-rings for wear and replace as needed
• Perform routine inspections of diaphragms, balls, and O-rings
• Clean pump thoroughly after each use, especially in food and beverage applications
• Use only compatible cleaning agents and lubricants
• Replace worn parts with genuine GRACO components
