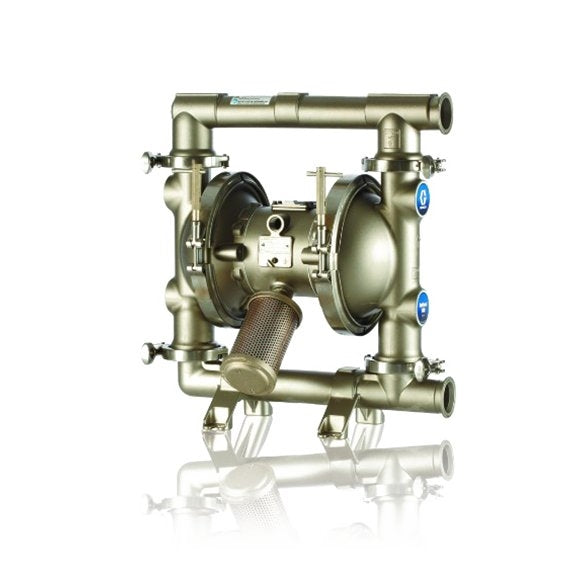

The GRACO FD2113 is a sanitary, air-operated double diaphragm pump designed for hygienic fluid transfer in demanding environments. It features a stainless steel fluid section, stainless steel center, stainless steel seats, PTFE balls, and PTFE overmoulded diaphragms. This pump is intended for use in industries requiring high cleanliness and reliability, such as food, beverage, cosmetics, and pharmaceuticals.

Key Features:

• Air-operated double diaphragm pump
• SaniForce 1590, 1.5"
• Sanitary stainless steel fluid section, stainless steel standard air valve center section, 316 stainless steel seats, PTFE balls, PTFE overmoulded diaphragms, PTFE O-rings
• Up to 100 gpm (379 lpm)
• Up to 120 psi (8.4 bar, 0.84 MPa)
• Tri-clamp (1.5" sanitary flange) connections
• FDA (125 Ra), meets CFR Title 21
• Seal-less diaphragm design eliminates leaking
• 360-degree rotation for easy draining and servicing
• Tri-clamp connections for quick cleaning and minimal downtime
• Designed for rigorous, continuous use with quick knockdown for easy cleanability and sanitation
• Lube-free, non-sticking air valve with external serviceability for quick, inexpensive repairs
• All fluid contact materials are FDA-compliant

Applications:
Ideal for hygienic transfer in personal care, cosmetics, high care food, beverage, and pharmaceutical applications where cleanliness and reliability are critical.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment of tri-clamp connections for leak-free operation
• Rotate pump as needed for complete draining and easy maintenance
• Follow manufacturer’s guidelines for air supply and pressure settings
• Regularly inspect diaphragms and O-rings for wear and replace as necessary
