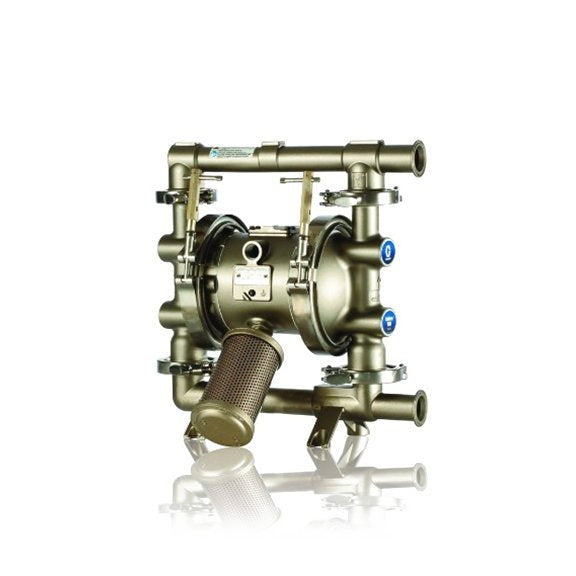

The GRACO FD7111 SaniForce 1040 is a sanitary, air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It features a stainless steel center section and seats, with PTFE (PT) balls and diaphragms, ensuring compatibility with food, pharmaceutical, and other sanitary applications. This pump is engineered for reliability and leak-free operation in demanding environments.

Key Features:

• Pneumatic Diaphragm Pump (AODD)
• SaniForce 1040, 1" FG SST
• Stainless steel center section and seats, PTFE (PT) balls and diaphragms
• Up to 41 gpm (155 lpm)
• Up to 120 psi (8 bar)
• Designed for sanitary applications; compatible with food, pharmaceutical, and similar industries
• FDA Compliant Materials, EC 1935/2004
• Seal-less diaphragm pump design eliminates leaking
• FDA grade construction for hygienic applications
• Easy to maintain and clean
• Reliable, robust design for continuous duty cycles

Applications:
Ideal for transferring fluids in food, beverage, pharmaceutical, and other sanitary industries where contamination must be avoided and easy cleaning is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure all connections are secure and leak-free before operation
• Follow manufacturer guidelines for air supply and pressure settings
• Regularly inspect diaphragms and seals for wear and replace as needed
• Clean pump thoroughly after use, especially in food or pharmaceutical applications
• Perform routine inspections and maintenance as recommended by GRACO
• Use only compatible replacement parts
• Keep air supply clean and dry to prevent internal contamination
