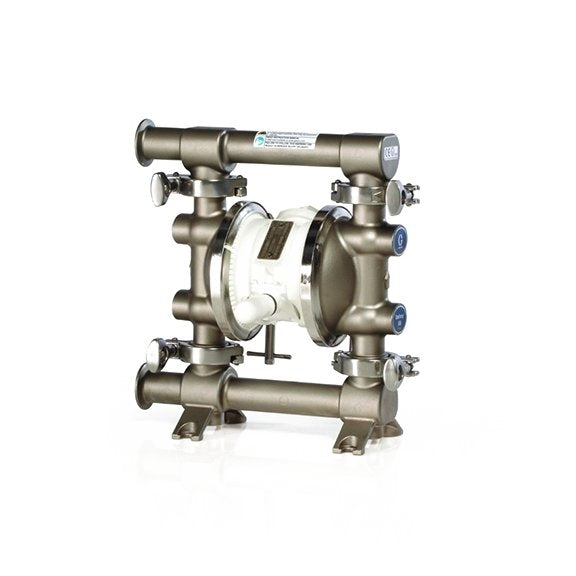

The GRACO SaniForce 515 is a 1/2-inch air-operated double diaphragm (AODD) pump designed for sanitary applications. It features a polypropylene center section, stainless steel (SS) seats, PTFE (PT) balls, and PTFE diaphragms. This pump is intended for transferring low to medium viscosity fluids in food processing, personal care, and other hygienic environments.

Key Features:

• Pneumatic Diaphragm Pump
• SaniForce 515, 1/2" FG SST
• Polypropylene center section, 316 stainless steel wetted parts, PTFE diaphragms and balls
• Up to 16 gpm (61 lpm)
• Up to 100 psi (6.9 bar)
• Suitable for low to medium viscosity fluids (up to 10,000 cps), compatible with food, beverage, and personal care products
• FDA Compliant Materials, EC 1935/2004, 125 Ra surface finish
• Seal-less diaphragm design eliminates leaking
• Quick knock-down design for easy cleaning
• Low cost of ownership
• Reliable and easy to maintain
• Suitable for high volume evacuation and repackaging

Applications:
Transferring flavorings, purees, sauces, and other low to medium viscosity materials in food processing and personal care industries. Also used for high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original containers to smaller receptacles.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure all connections are secure and use appropriate sanitary fittings (Tri-Clamp)
• Verify air supply is clean and dry to prevent contamination and ensure longevity
• Follow manufacturer guidelines for pump orientation and mounting
• Regularly inspect diaphragms and seals for wear and replace as needed
