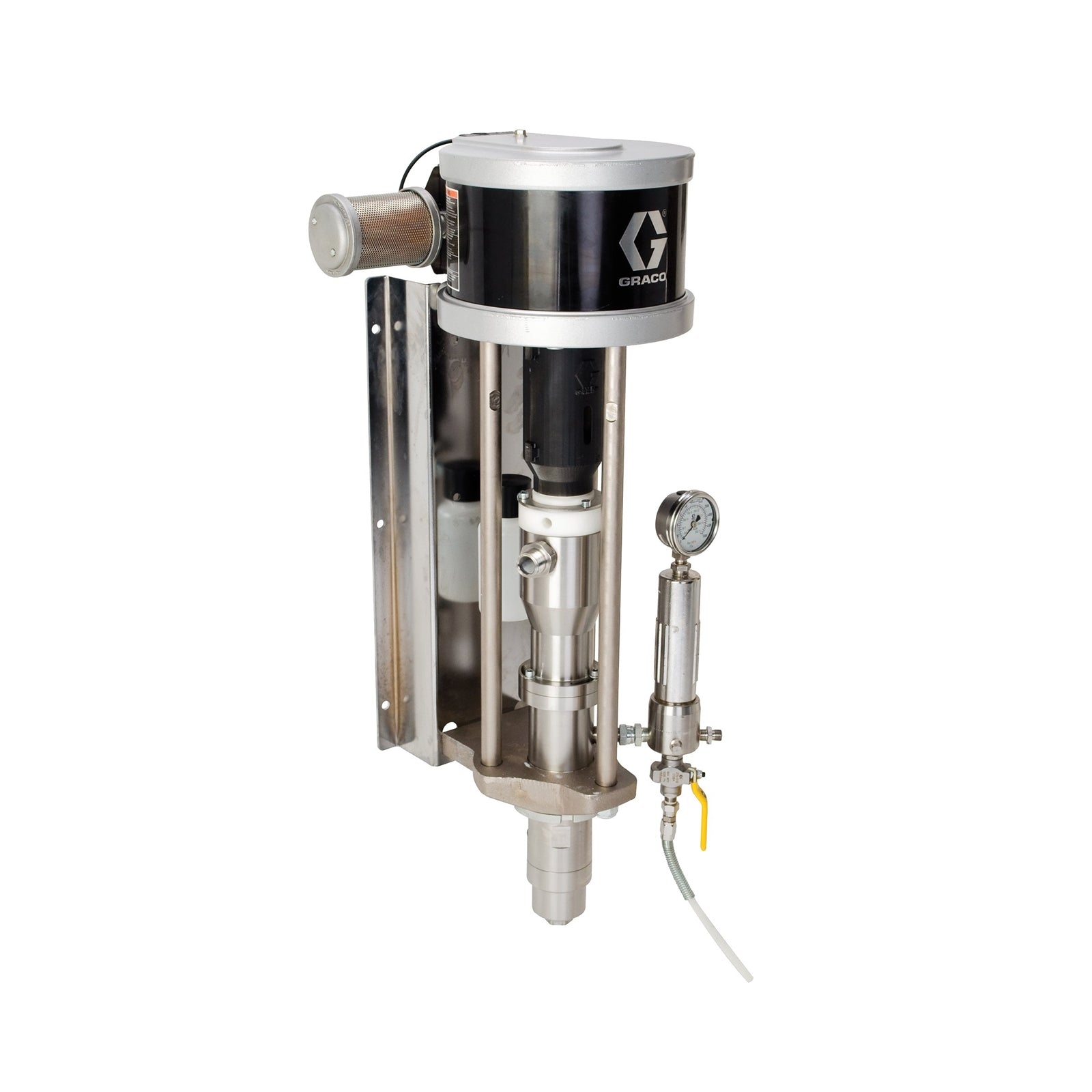

The G05B02 is a Merkur Bellows piston pump designed for reliable, low-maintenance fluid transfer in industrial applications. It is constructed primarily from stainless steel and is intended for use in GRACO equipment to handle moisture-sensitive and shear-sensitive materials, such as UV coatings and waterborne fluids. The pump eliminates conventional throat seals, reducing maintenance and improving reliability.

Key Features:

• Bellows piston pump
• G05B02
• Stainless steel
• Max working pressure: 3400 kPa (approx. 493 psi)
• Designed for use with GRACO equipment; suitable for moisture-sensitive and shear-sensitive materials
• 5:1 ratio for efficient fluid transfer
• V-Packing seal for enhanced reliability and reduced maintenance
• Wall mount design for space-saving installation
• Fluid filter included for contaminant protection
• DataTrak electronic monitoring for diagnostics, batch tracking, and maintenance scheduling
• Easy-to-flush lower design for fast color changes and reduced material waste
• No seals exposed to the atmosphere, improving reliability and reducing maintenance
• Quick removal coupler for easy disassembly and serviceability

Applications:
Ideal for industrial fluid transfer, especially for moisture-sensitive and shear-sensitive materials such as UV coatings and waterborne fluids. Suitable for environments requiring reliable, low-maintenance pumps with easy serviceability.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with GRACO equipment. Non-genuine parts may compromise system integrity and void warranties.
• Follow GRACO’s installation guidelines for wall mounting and fluid line connections
• Ensure proper alignment and secure mounting to prevent vibration and leaks
• Use the included fluid filter to protect the pump from contaminants
• Connect DataTrak for electronic monitoring and maintenance scheduling
• Regularly inspect and maintain seals and filters as per GRACO recommendations
• Perform regular inspections of seals and filters
• Flush the pump lower as needed for color changes or material switches
• Schedule maintenance using DataTrak for timely service and diagnostics
• Replace worn or damaged parts with genuine GRACO components
