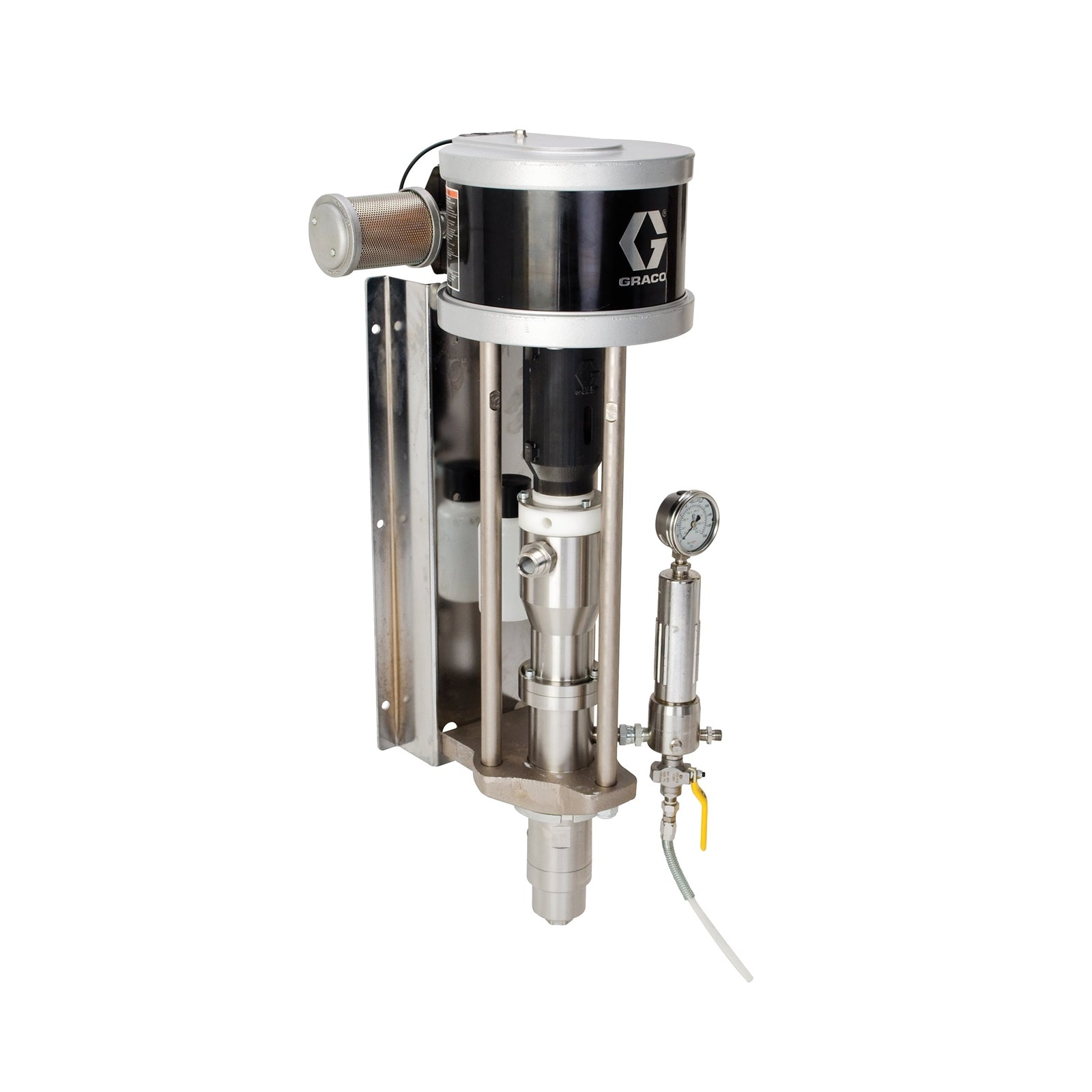

The GRACO G24B17 is a pneumatic pump package designed for reliable, high-pressure fluid transfer. It features a Merkur Bellows pump with a 24:1 ratio, U-cup seal, wall mount, and integrated fluid filter. The package is constructed for use with waterborne materials and is intended for industrial applications requiring consistent, high-pressure fluid delivery.

Key Features:

• Pneumatic pump package
• G24B17 (Merkur Bellows, 24:1 ratio, 150cc standard)
• Industrial-grade materials, wall mount design
• Maximum working pressure: 2400 psi (16.5 MPa, 165 bar)
• Waterborne materials
• U-cup seal for enhanced reliability and reduced maintenance
• Integrated fluid filter for cleaner fluid delivery
• Wall mount for space-saving installation
• Low air consumption, high-efficiency air motor
• Designed for ease of maintenance and long service life

Applications:
Industrial fluid transfer, supply of waterborne materials in manufacturing, maintenance, and lubrication systems

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety of the pump system.
• Mount securely on a wall for stability and safety
• Ensure all connections are tight and leak-free
• Use recommended hoses and fittings for compatibility
• Regularly inspect and clean the fluid filter to maintain performance
• Follow manufacturer guidelines for air supply and pressure settings
• Regularly check seals and replace as needed
• Monitor fluid filter and drain as required
• Inspect hoses and connections for wear or leaks
• Use only compatible fluids as specified by GRACO
