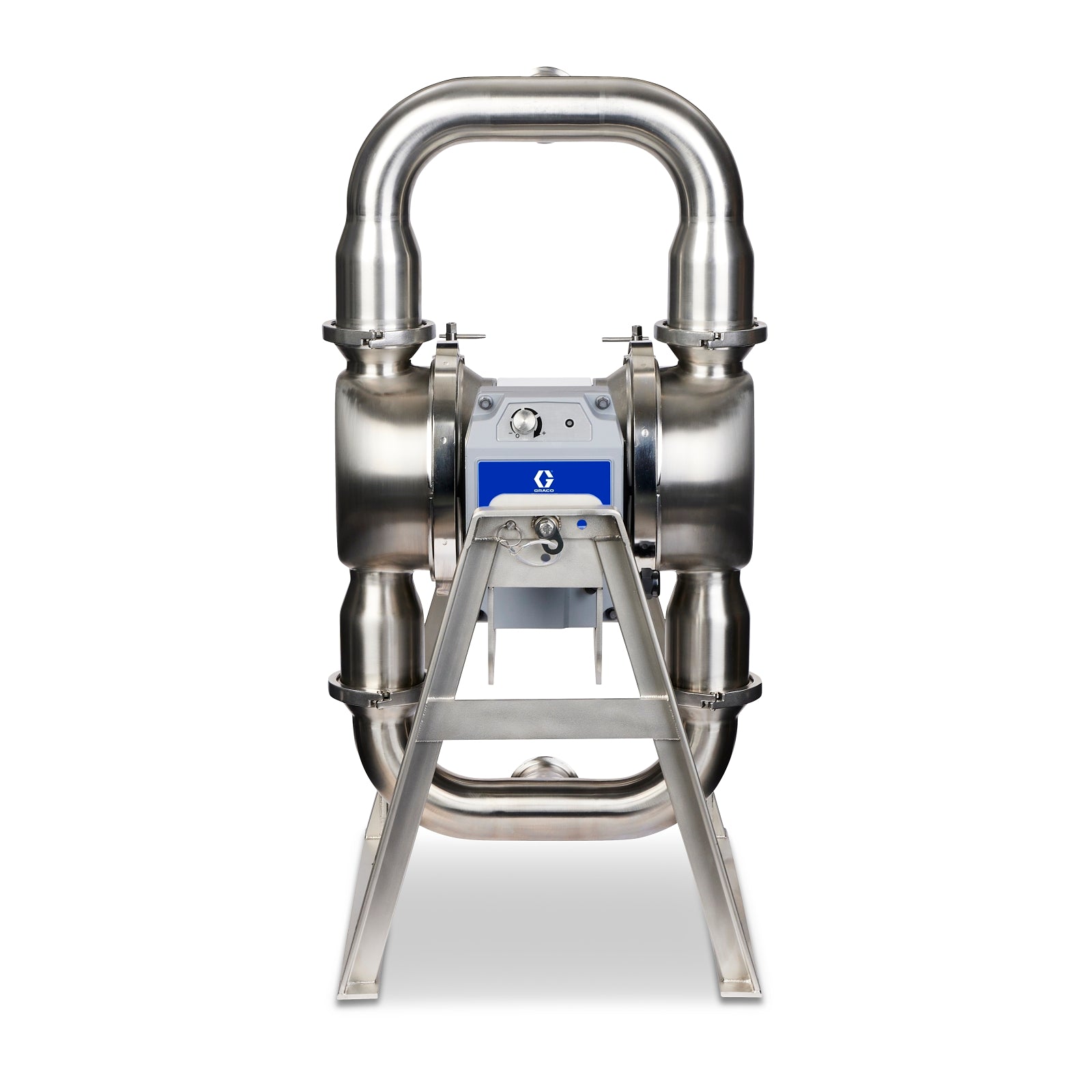

The GRACO HE120-0667 is a high-sanitary stainless steel electric diaphragm pump designed for reliable, energy-efficient fluid transfer in demanding environments. It features a 3" tri-clamp connection, FEP-coated aluminum center section, FL seat, and PS diaphragm, and is intended for use in food, beverage, pharmaceutical, and personal care industries where hygiene and efficiency are critical.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• 316L stainless steel fluid section, FEP-coated aluminum center, FL seat, PS diaphragm
• 450 lpm (liters per minute)
• Max. working pressure: 4.2 bar
• Designed as a drop-in replacement for pneumatic diaphragm pumps; compatible with food, beverage, pharmaceutical, and personal care applications
• EN 2.1 material certification, 32 Ra surface finish (High Sanitary), 3A approved option available
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (low noise level, ~40 dBA)
• Compact and efficient electric drive, comparable footprint to pneumatic pumps
• Smart pump control with accurate flow set points and built-in I/O
• Self-priming, seal-less design
• Stalls under pressure to minimize downtime from clogged lines or closed valves
• Easy installation and maintenance
• Non-hazardous materials of construction

Applications:
Food, beverage, pharmaceutical, and personal care industries for hygienic, efficient fluid transfer

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure tri-clamp connections for leak-free operation
• Verify electrical compatibility (200-240 VAC, 1-phase)
• Follow manufacturer guidelines for diaphragm and seat installation
• Regularly inspect and maintain diaphragm, seat, and o-rings for wear and tear
• Use only compatible cleaning agents for high-sanitary applications
