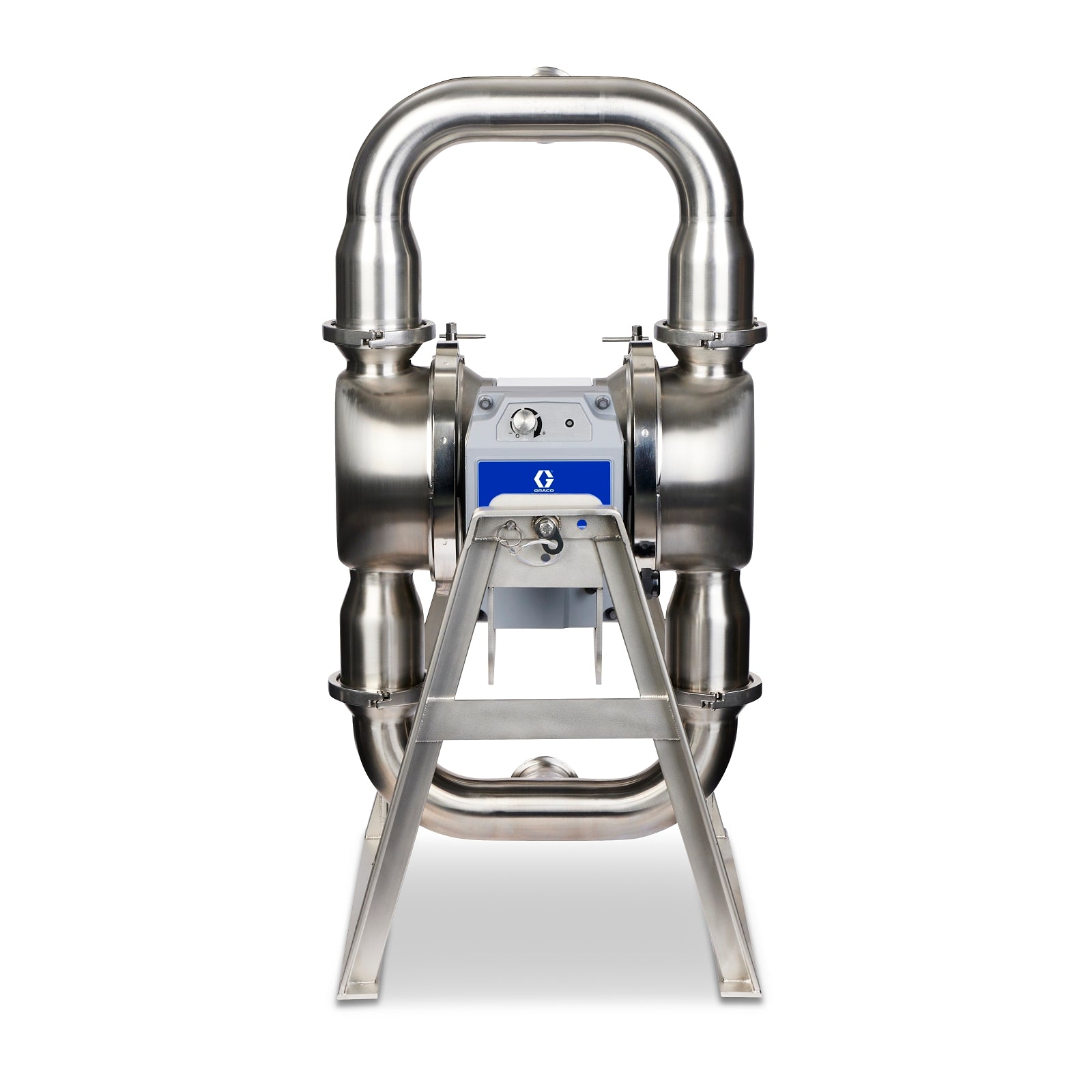

The GRACO HE120-0673 QUANTM h120 is a high-sanitary stainless steel electric diaphragm pump designed for reliable, efficient fluid transfer in demanding industrial environments. It features a 3" tri-clamp connection, FEP-coated aluminum center, FL seat, and PO diaphragm, making it suitable for food, beverage, pharmaceutical, and personal care applications where hygiene and reliability are critical.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• High Sanitary Stainless Steel (HS SST), FEP-coated aluminum center, FL seat, PO diaphragm
• 450 lpm (liters per minute)
• Max. working pressure: 4.2 bar
• Drop-in replacement for pneumatic diaphragm pumps; suitable for most fluid applications
• No compressed air needed
• Up to 80% energy savings compared to pneumatic pumps
• Quiet operation (40 dBA)
• Self-priming, seal-less design
• Stalls under pressure to prevent downtime from clogged lines or closed valves
• Easy installation and maintenance
• Compact, efficient electric drive with comparable footprint to pneumatic pumps
• Smart pump control with built-in I/O for accurate flow set points

Applications:
Food, beverage, pharmaceutical, and personal care industries for hygienic, reliable fluid transfer

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper alignment and secure tri-clamp connections for leak-free operation
• Follow manufacturer guidelines for electrical connections (200-240 VAC)
• Regularly inspect diaphragms and seals for wear and replace as needed
• Utilize preventative maintenance to ensure longevity and peak performance
• Consult the equipment manual for detailed installation and maintenance procedures
• Contact a GRACO specialist for specific compatibility and setup advice
• Use only genuine replacement parts to maintain warranty and performance standards
