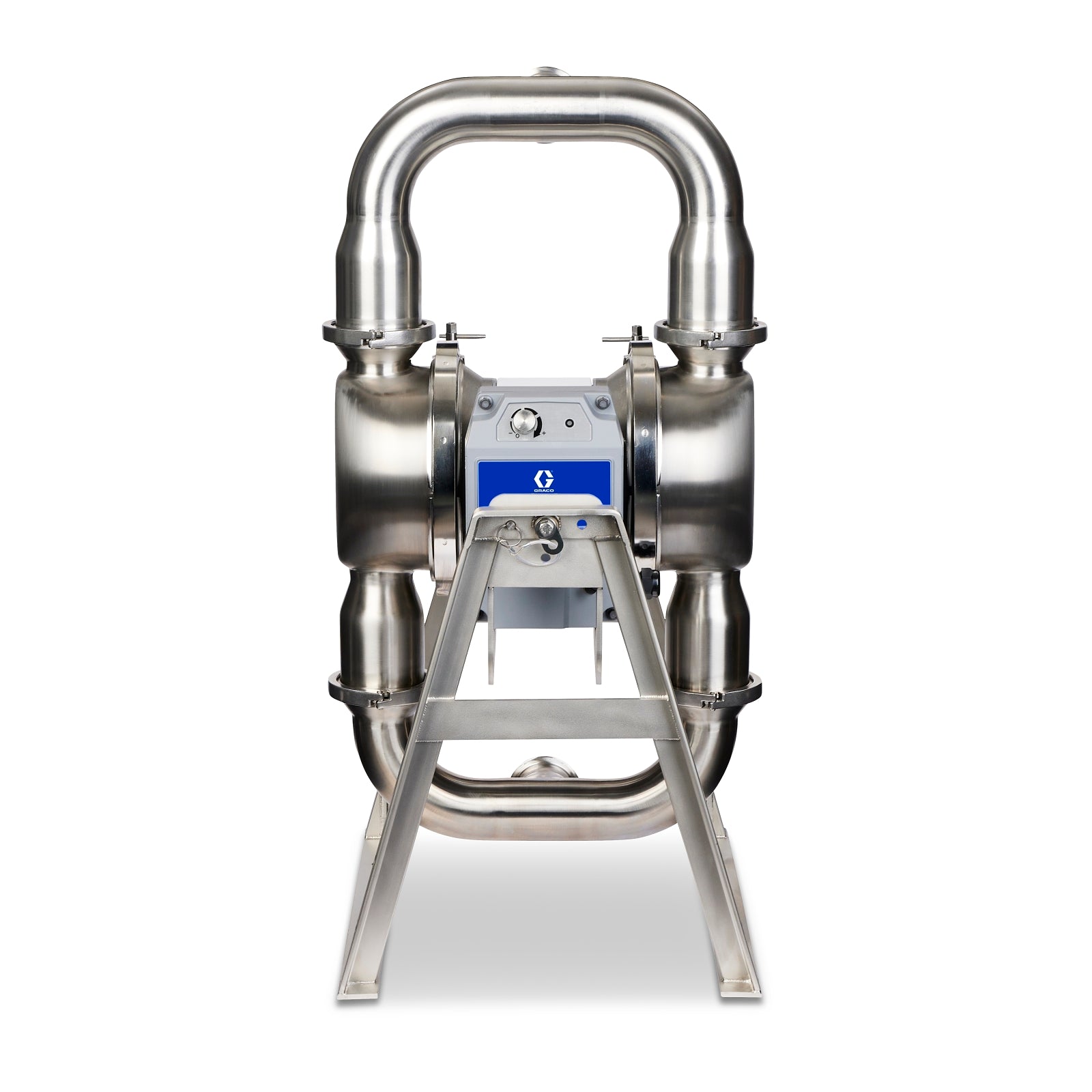

The GRACO QUANTM h120 is an electric diaphragm pump designed for high sanitary (HS) applications, constructed with 316L stainless steel, EPDM, PTFE/Santoprene, and FEP AL center. It is intended for reliable, energy-efficient fluid transfer in demanding industrial environments, offering a drop-in replacement for less efficient pneumatic pumps.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• 316L Stainless Steel, EPDM, PTFE/Santoprene 2-Piece, FEP AL Center, FL Seat, SP Diaphragm
• Maximum fluid pressure: 4.14 bar (414 kPa, 60 psi)
• Designed as a drop-in replacement for pneumatic diaphragm pumps in most fluid applications
• FDA Compliant Materials
• Self-priming, seal-less design
• Stalls under pressure to reduce downtime from clogged lines or closed valves
• Quieter and more efficient than pneumatic alternatives
• Energy savings up to 80% compared to pneumatic pumps
• Easy installation and maintenance
• Reliable, heavy-duty performance

Applications:
Ideal for high sanitary (HS) fluid transfer in food, beverage, pharmaceutical, and chemical industries. Suitable for both new installations and as a replacement for existing pneumatic pumps.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure tri-clamp connections
• Follow manufacturer’s guidelines for electrical connections (200-240 VAC 1Ph)
• Perform preventative maintenance to ensure longevity and peak performance
• Consult the product manual for detailed installation and maintenance procedures
• Regularly inspect diaphragms and seals for wear
• Keep spare parts on hand to minimize downtime
• Contact Innoflo Solutions Inc. for expert guidance and quick shipping of genuine parts
