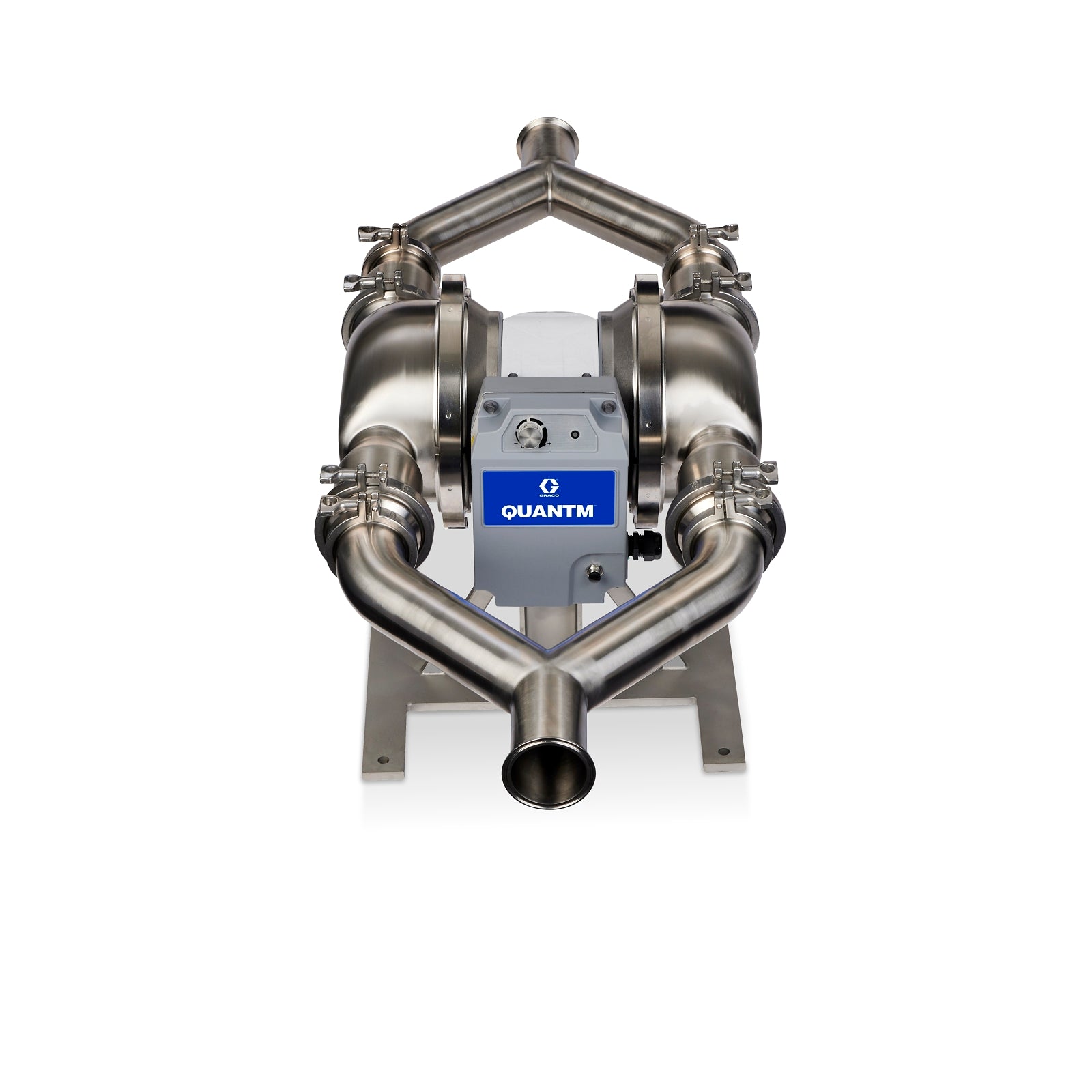

The GRACO HE120-0682 is an electric diaphragm pump designed for reliable, efficient fluid transfer in demanding industrial environments. It features a 3" tri-clamp high sanitary (HS) stainless steel (316L) fluid section, FEP-coated aluminum electric drive, and a PTFE/Santoprene 2-piece diaphragm. This pump is engineered to replace less efficient pneumatic diaphragm pumps, offering significant energy savings and improved operational reliability.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• 316L stainless steel fluid section (HS, 32 Ra), FEP-coated aluminum electric drive, PTFE/Santoprene 2-piece diaphragm, EPDM manifold o-ring
• Designed as a drop-in replacement for pneumatic diaphragm pumps; suitable for most fluid applications
• EN 3.1 material certification
• Revolutionary electric motor design for up to 80% energy savings
• Compact, efficient electric drive (no gearbox)
• Quiet operation (reduces plant noise)
• Smart pump control with accurate flow set points and built-in I/O
• Self-priming, seal-less design
• Stalls under pressure to reduce downtime from clogged lines or closed valves
• Easy maintenance and high reliability

Applications:
Ideal for industrial fluid transfer in food, pharmaceutical, and chemical processing where high sanitary standards and energy efficiency are required. Suitable for both new installations and as a replacement for existing pneumatic pumps.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with safety and industry standards.
• Ensure proper alignment and secure mounting of the pump
• Verify electrical supply matches pump requirements (200-240 VAC, 1Ph, NEMA L15-20 plug)
• Follow manufacturer guidelines for fluid compatibility and pressure limits
• Regularly inspect and maintain diaphragms and seals for longevity
• Consult a GRACO specialist for complex installations or troubleshooting
