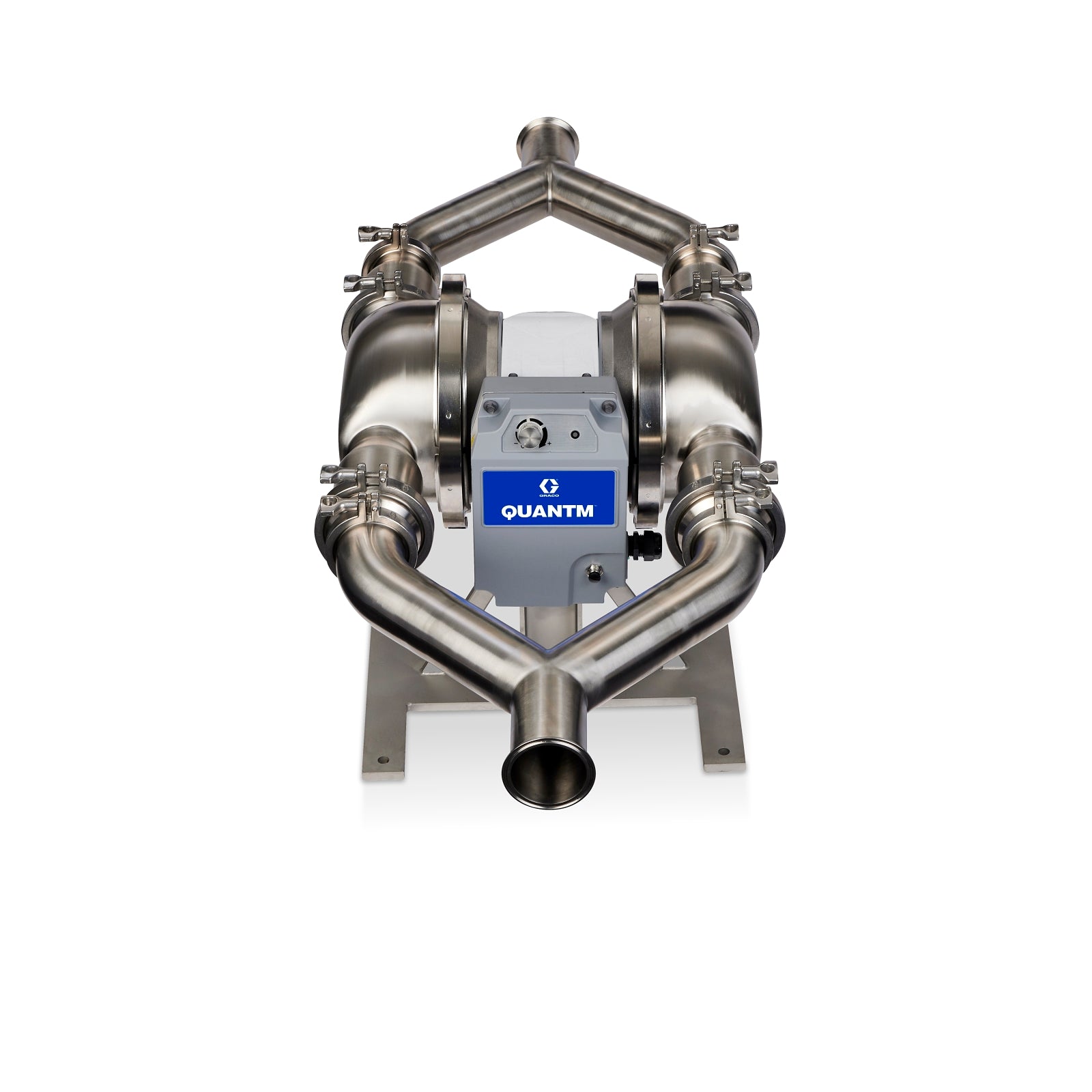

The GRACO HE120-0684 is a high-sanitary stainless steel electric diaphragm pump designed for demanding applications in food, beverage, pharmaceutical, and personal care industries. It features a 3" tri-clamp connection, FEP-coated aluminum center, FL seat, and SP diaphragm, ensuring compatibility with strict hygiene and material safety standards.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• 316L stainless steel fluid section, FEP-coated aluminum center, FL seat, SP diaphragm
• Up to 450 lpm (liters per minute)
• Max. working pressure: 4.2 bar
• Food, beverage, pharmaceutical, and personal care industries; drop-in replacement for pneumatic diaphragm pumps
• EN 2.1 material certification, 32 Ra surface finish (high sanitary), 3A approved options available
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (low noise level, ~40 dBA)
• Compact and efficient electric drive (no gearbox)
• Smart pump control for accurate flow set points and built-in I/O
• Self-priming, seal-less design
• Stalls under pressure to minimize downtime from clogged lines or closed valves
• Easy installation and maintenance
• Non-hazardous materials of construction

Applications:
Ideal for hygienic transfer of liquids in food, beverage, pharmaceutical, and personal care industries. Suitable for both new installations and as a replacement for inefficient pneumatic pumps.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure tri-clamp connections for leak-free operation
• Verify electrical supply matches pump specifications (200-240 VAC, 1-phase)
• Follow manufacturer guidelines for initial priming and startup
• Regularly inspect diaphragms and seals for wear and replace as needed
• Keep pump and surrounding area clean to maintain sanitary conditions
