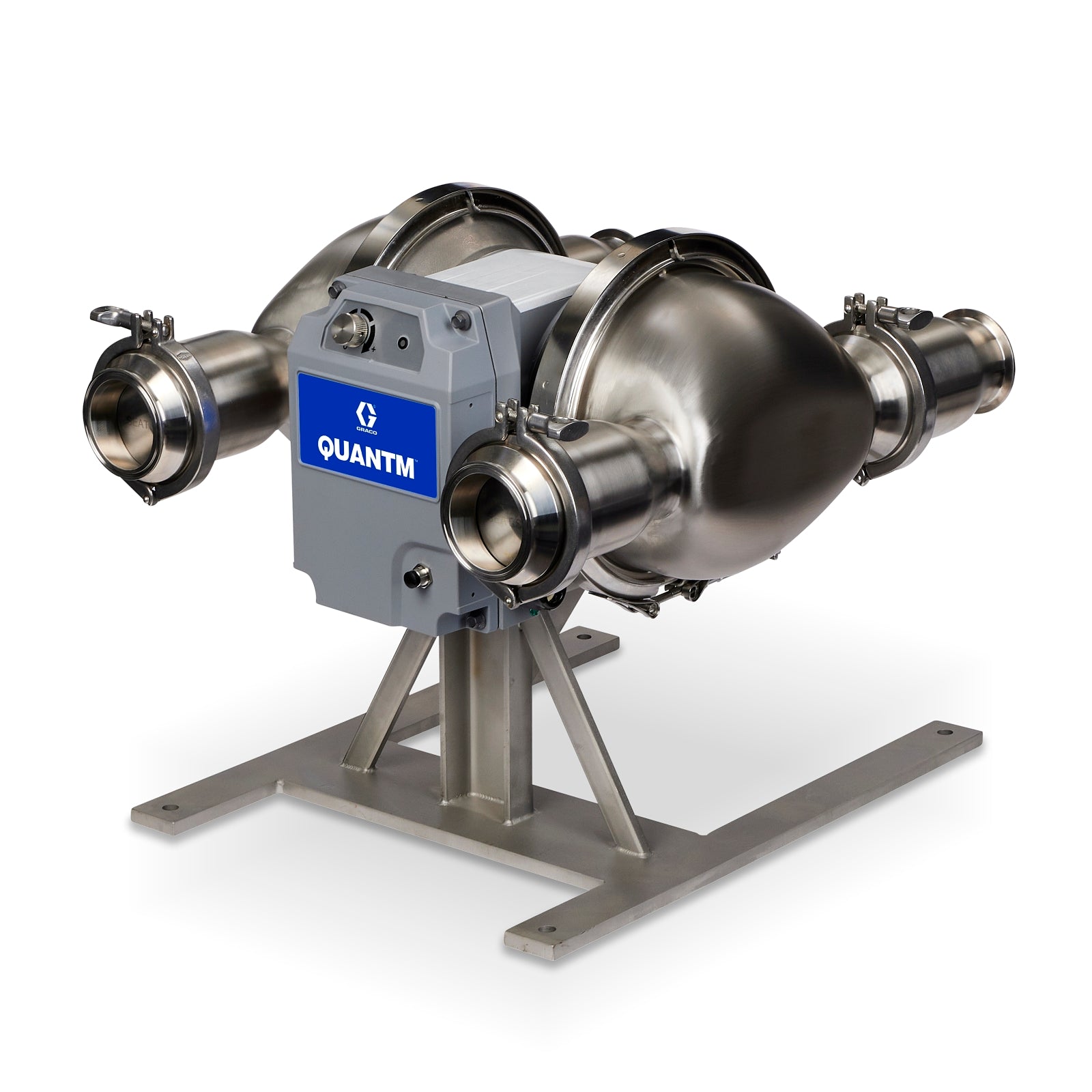

The GRACO HE120-0688 QUANTM h120 is a 3-inch high sanitary (HS) stainless steel (SST) electric diaphragm pump designed for demanding industrial applications. It features an FEP-coated aluminum center section, FL seat, and PO diaphragm, making it suitable for hygienic, food, beverage, and pharmaceutical environments. This pump is engineered to replace traditional air-operated diaphragm pumps with a highly efficient, quiet, and reliable electric alternative.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" HS SST
• 316L Stainless Steel fluid section (HS finish), FEP-coated aluminum center, FL seat, PO diaphragm
• Designed as a drop-in replacement for pneumatic diaphragm pumps in food, beverage, pharmaceutical, and personal care industries
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (low noise level, ~40 dBA)
• Compact, efficient electric drive with no gearbox
• Self-priming, seal-less design
• Stalls under pressure to minimize downtime from clogged lines or closed valves
• Smart pump control with accurate flow set points and built-in I/O
• Easy installation and maintenance
• Reliable, consistent flow for continuous operation

Applications:
Food, beverage, pharmaceutical, and personal care industries; suitable for hygienic and high sanitary applications where reliable, efficient, and quiet pumping is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems, while also maintaining warranty and safety standards.
• Ensure proper alignment and secure mounting of the pump
• Verify electrical supply matches pump requirements (200-240 V for this model)
• Check all connections for leaks and proper sealing
• Follow manufacturer guidelines for diaphragm and seat installation
• Regularly inspect and maintain diaphragms and seals for optimal performance
• Use only recommended replacement parts and consumables
• Schedule routine maintenance to prevent unexpected downtime
• Monitor pump performance and address any unusual noise or vibration promptly
• Consult the equipment manual for detailed installation and maintenance procedures
