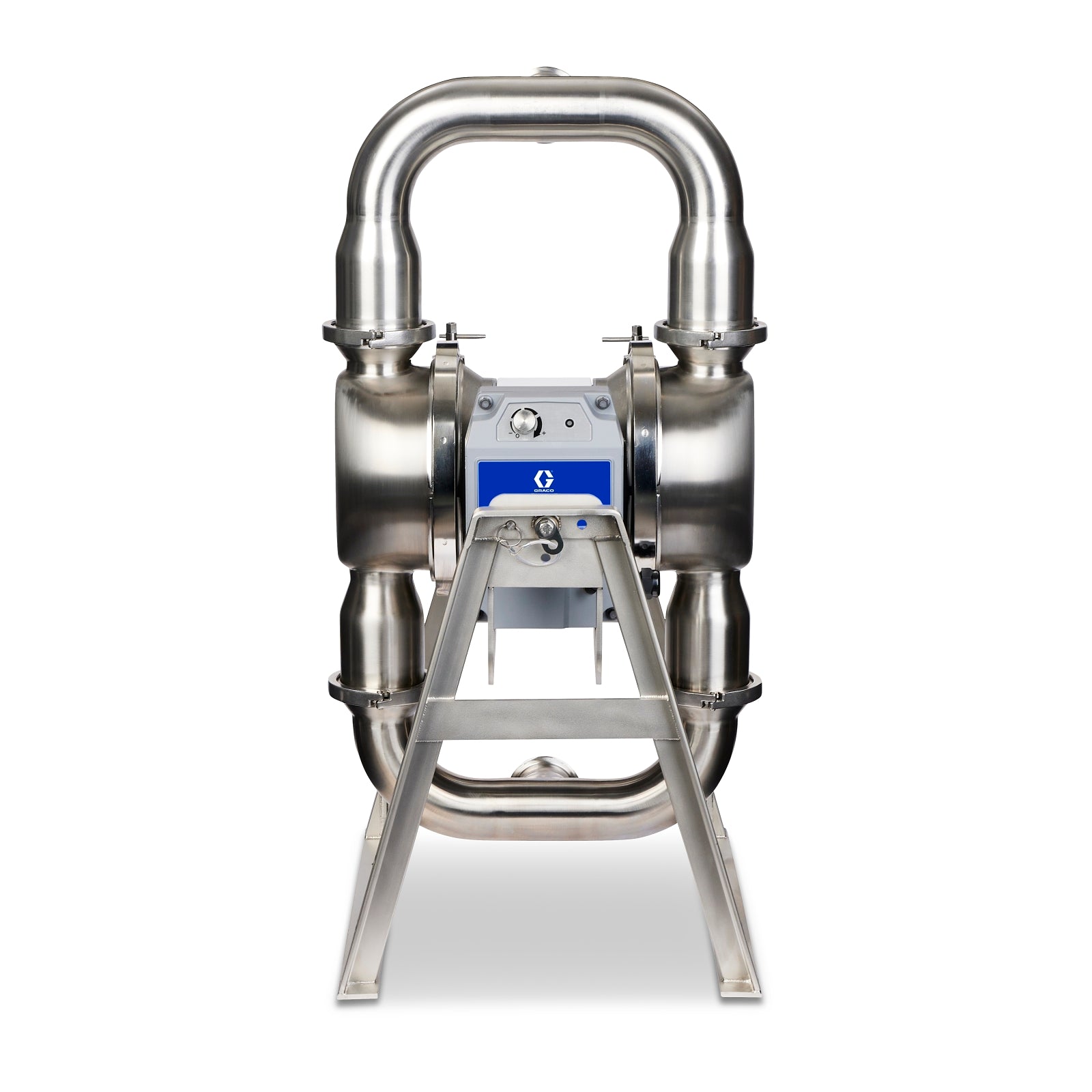

The GRACO HE120-0704 QUANTM h120 is an electric diaphragm pump designed for high sanitary (HS) applications. It features a 316L stainless steel fluid section with a 3" tri-clamp center port, FEP-coated aluminum electric drive, and a Santoprene diaphragm. This pump is intended for use in industries requiring hygienic fluid transfer, such as food, beverage, and pharmaceutical processing.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp, HS SST
• 316L stainless steel fluid section, FEP-coated aluminum electric drive, Santoprene diaphragm, EPDM manifold o-ring
• 450 lpm (liters per minute)
• Max. working pressure: 4.2 bar
• Designed for high sanitary (HS) applications; compatible with food, beverage, and pharmaceutical processing equipment
• EN 2.1 material certification, 32 Ra surface finish
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Compact and efficient electric drive (no gearbox)
• Quiet operation (low noise level, ~40 dBA)
• Smart pump control for accurate flow set points and built-in I/O
• AutoPrime feature for easy priming
• Easy installation and maintenance
• Stalls under pressure for safety

Applications:
Ideal for hygienic fluid transfer in food, beverage, and pharmaceutical industries. Suitable for applications requiring high sanitary standards and reliable, energy-efficient pumping.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure all connections are secure and properly aligned before operation
• Follow manufacturer guidelines for electrical and mechanical installation
• Regularly inspect and maintain diaphragms and seals for optimal performance
• Use only compatible fluids and materials as specified by GRACO
