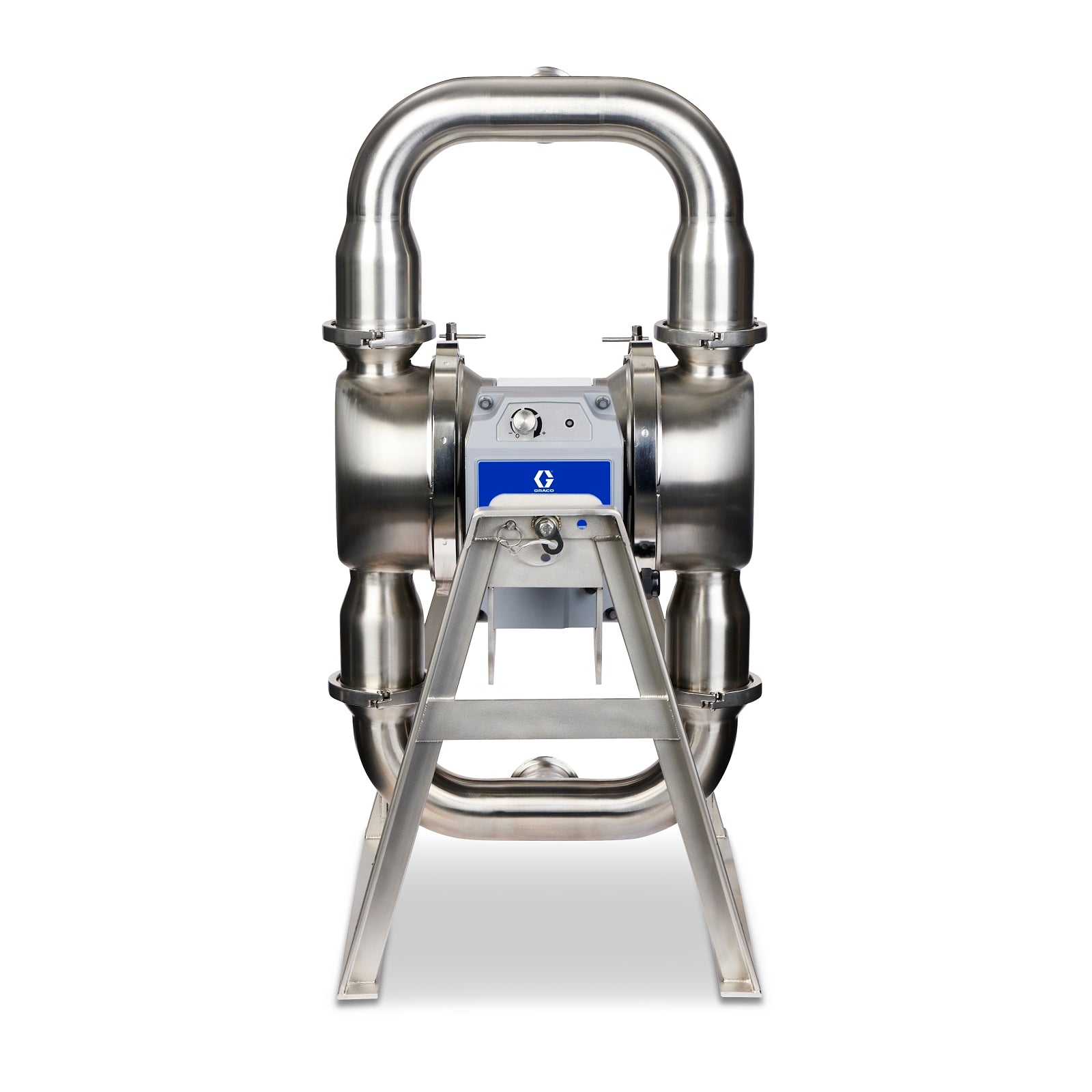

The GRACO HE120-0706 is an electric diaphragm pump designed for hygienic and sanitary applications. It features a 3" tri-clamp connection, high sanitary (HS) 316L stainless steel (SST) fluid section, FEP-coated aluminum electric drive, FL seat, and Buna-N (BN) diaphragm. This pump is intended for use in industries requiring clean, efficient, and reliable fluid transfer, such as food, beverage, and pharmaceutical processing.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp
• 316L stainless steel fluid section, FEP-coated aluminum electric drive, Buna-N diaphragm, EPDM manifold o-ring
• Designed for hygienic and sanitary applications; compatible with food, beverage, and pharmaceutical industries
• EN 3.1 material certification, 32 Ra surface finish
• Revolutionary electric motor design for up to 80% energy savings compared to pneumatic pumps
• Compact and efficient electric drive with no gearbox, similar footprint to pneumatic diaphragm pumps
• Quiet operation (low noise level)
• Smart pump control for accurate flow set points and built-in I/O
• AutoPrime feature for easy startup
• Stalls under pressure for safety
• Easy installation and maintenance

Applications:
Ideal for clean-in-place (CIP) systems, food and beverage processing, pharmaceutical manufacturing, and other applications requiring hygienic fluid transfer.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure tri-clamp connections for leak-free operation
• Verify electrical compatibility (200-240 VAC, 1Ph)
• Follow manufacturer guidelines for diaphragm and seal installation
• Regularly inspect and maintain diaphragm and seals for longevity
• Consult the manual for specific installation and maintenance procedures
