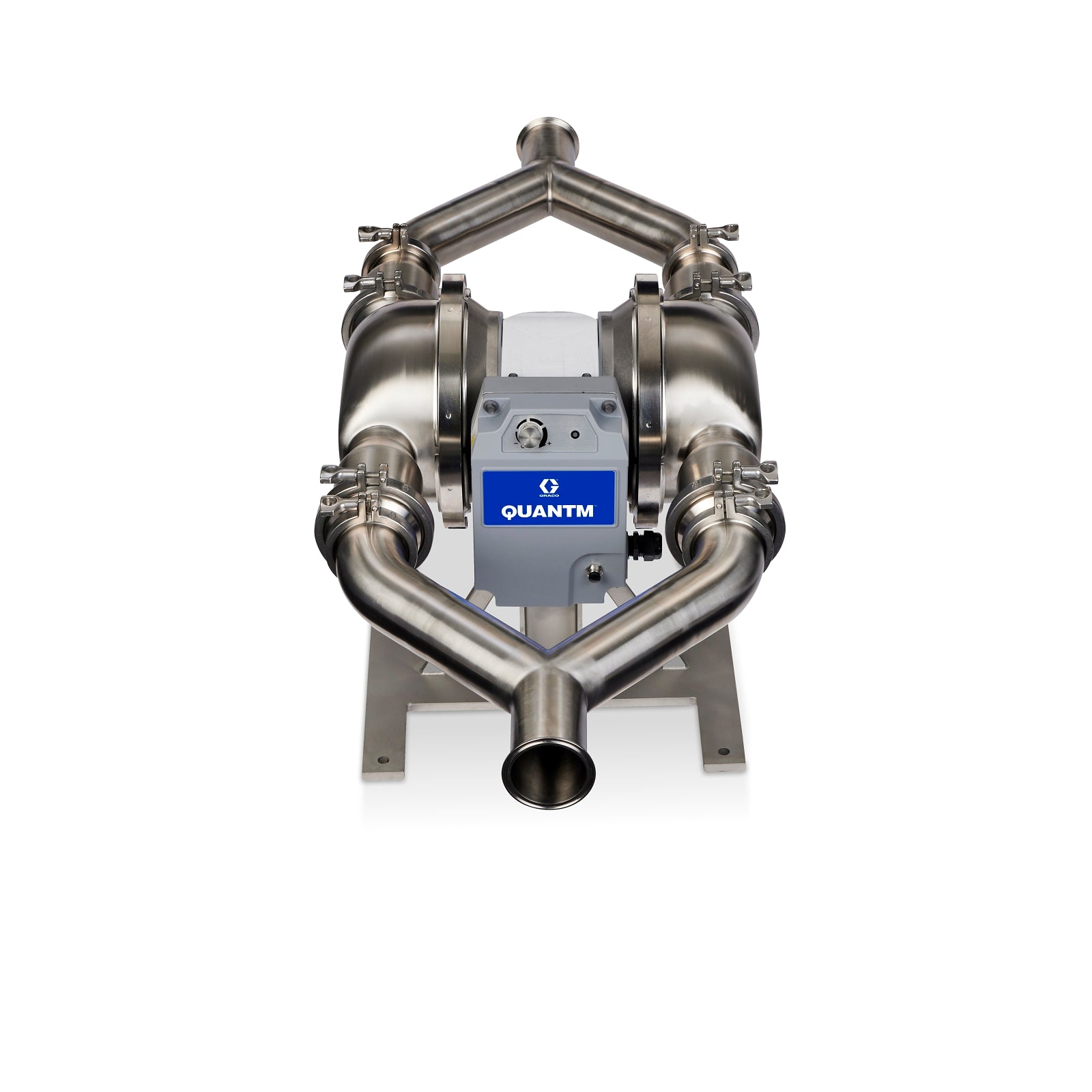

The GRACO HE120-0707 QUANTM h120 is a sanitary electric diaphragm pump designed for reliable, efficient fluid transfer in industrial applications. It features a 3" tri-clamp connection, high sanitary (HS) stainless steel construction, and is powered by a 200-240 V electric motor with FEP-coated aluminum center, FL seat, and PS diaphragm. This pump is engineered for use in demanding environments where hygiene, energy efficiency, and reliability are critical.

Key Features:

• Electric Diaphragm Pump
• QUANTM h120, 3" Tri-clamp, HS
• 316L stainless steel fluid section, FEP-coated aluminum electric drive, PTFE/Santoprene 2-piece diaphragm, EPDM manifold o-ring
• Drop-in replacement for pneumatic diaphragm pumps; suitable for most fluid applications
• EN 3.1 material certification
• Compact, efficient electric drive (no gearbox)
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation reduces plant noise
• Smart pump control for accurate flow set points and built-in I/O
• Self-priming, seal-less design
• Stalls under pressure to reduce downtime from clogged lines or closed valves
• Easy maintenance and reliable performance

Applications:
Ideal for hygienic and sanitary fluid transfer in food, beverage, pharmaceutical, and chemical industries. Suitable for both new installations and as a replacement for less efficient pneumatic pumps.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the equipment.
• Ensure proper alignment of tri-clamp connections for leak-free operation
• Verify electrical compatibility (200-240 V, single phase)
• Follow manufacturer guidelines for initial priming and startup
• Regularly inspect diaphragm and seals for wear and replace as needed
• Schedule preventative maintenance to maintain peak performance
