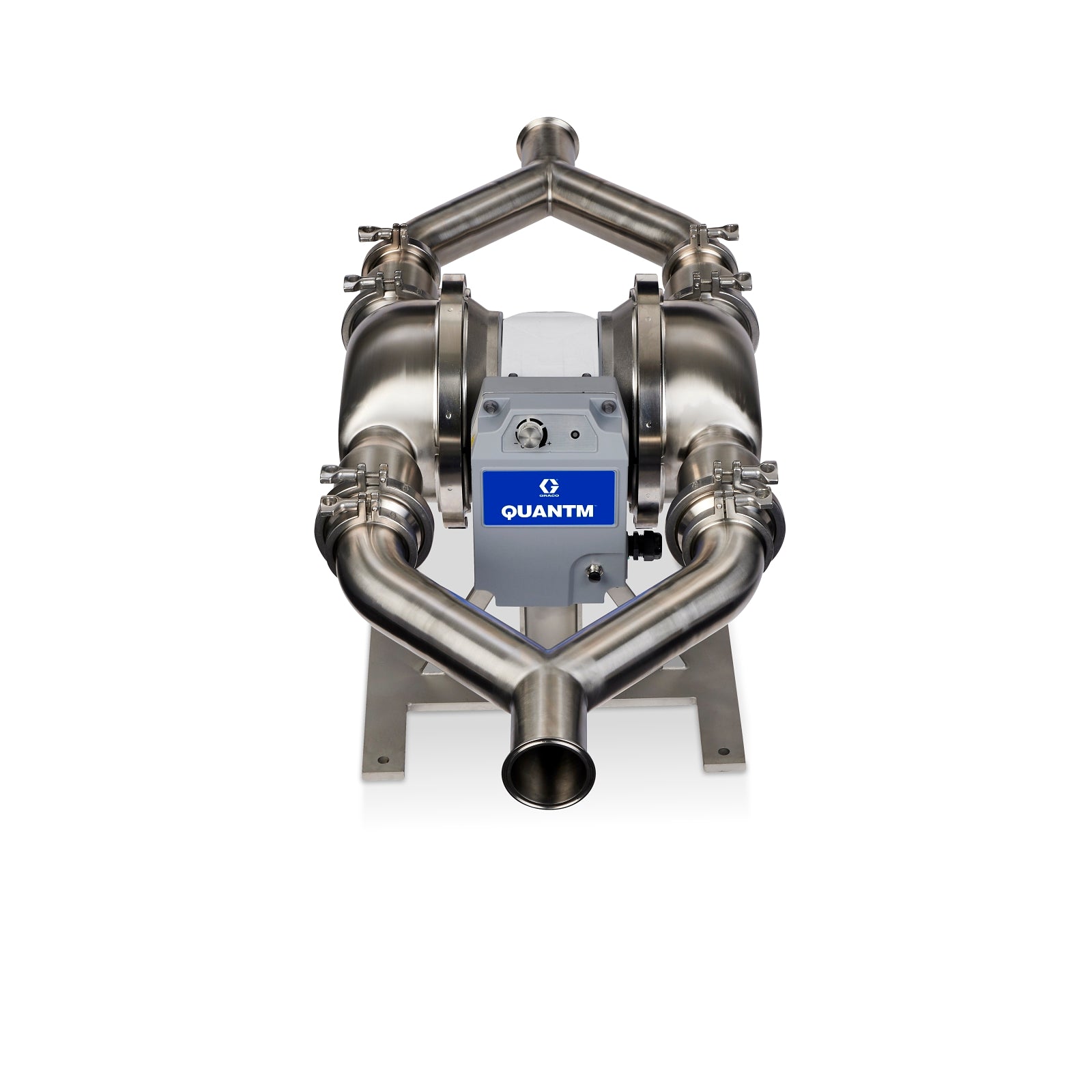

The GRACO HE120-0713 is a high-sanitary stainless steel (316L) electric diaphragm pump designed for demanding fluid transfer applications. It features a 3" tri-clamp connection, FEP-coated aluminum center, FL seat, and PO diaphragm, making it suitable for hygienic and corrosive environments. This pump is engineered to replace less efficient pneumatic pumps, offering improved reliability and energy savings in food, beverage, pharmaceutical, and industrial settings.

Key Features:

• Electric diaphragm pump
• QUANTM h120, 3" Tri-clamp
• 316L stainless steel fluid section, FEP-coated aluminum center, FL seat, PO diaphragm
• Up to 450 lpm (liters per minute)
• Maximum working pressure: 4.2 bar
• Designed as a drop-in replacement for pneumatic diaphragm pumps in most fluid applications
• EN 2.1 material certification, 32 Ra surface finish (high sanitary)
• Self-priming, seal-less design
• Stalls under pressure to prevent damage from clogged lines or closed valves
• Quiet operation (low noise level)
• Compact and efficient electric drive (no gearbox)
• Smart pump control for accurate flow set points and built-in I/O
• Easy installation and maintenance
• Up to 80% reduction in energy consumption compared to pneumatic pumps

Applications:
Ideal for food, beverage, pharmaceutical, and industrial fluid transfer applications requiring high hygiene standards and reliable, energy-efficient pumping.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the pump. Non-genuine parts may compromise safety, efficiency, and warranty.
• Ensure all connections are secure and compatible with 3" tri-clamp fittings
• Verify electrical supply matches pump requirements (200-240 VAC, 1 phase)
• Follow manufacturer guidelines for installation and initial startup
• Regularly inspect and maintain the pump according to recommended schedules
• Use only compatible fluids and materials as specified in the manual
