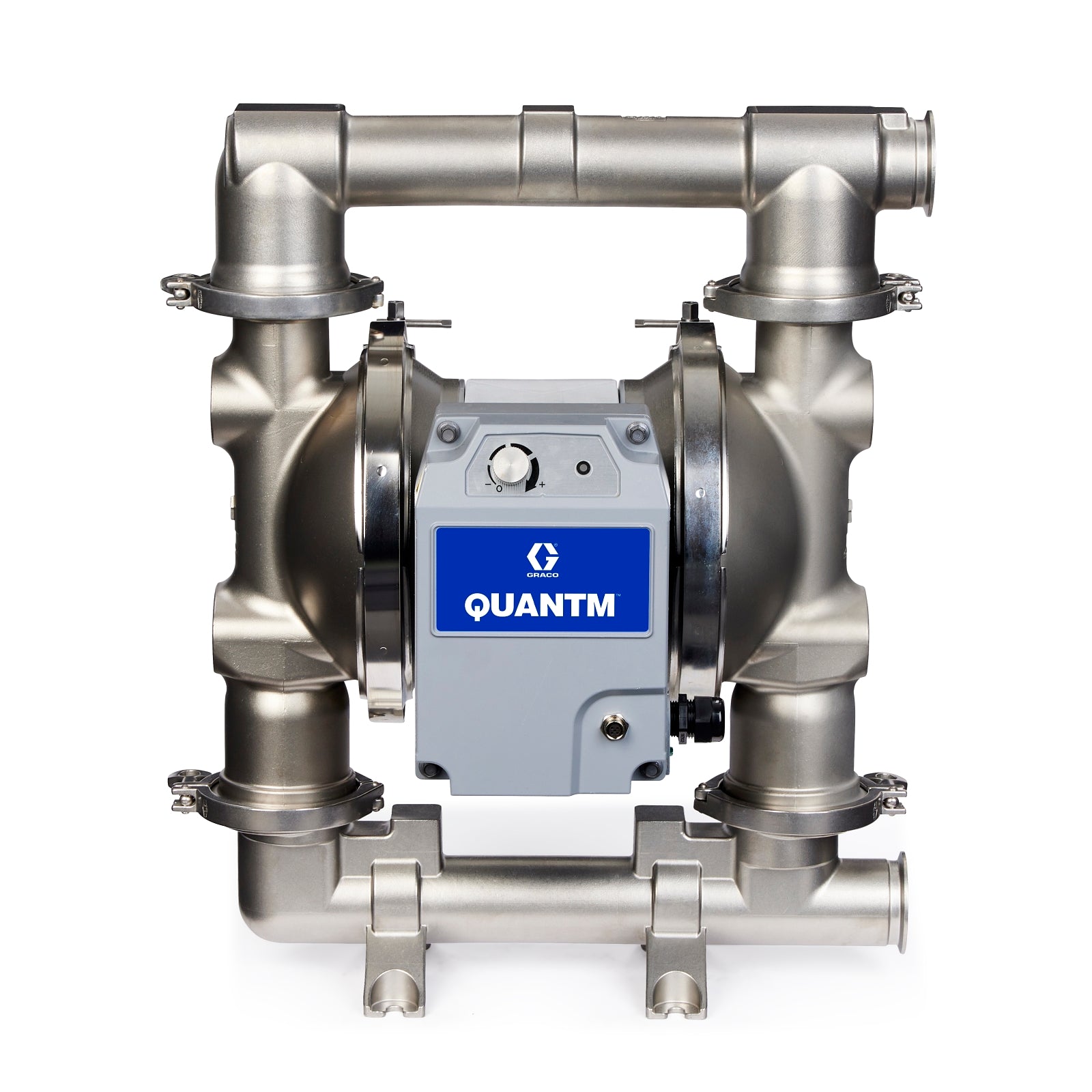

The GRACO HE120-1004 QUANTM h120 is a stainless steel electric diaphragm pump designed for hygienic and sanitary fluid transfer applications. It features a 2" tri-clamp connection, a food-grade stainless steel (FG SST) construction, and is powered by a 380-480 V electric motor. The pump is engineered for use in food, beverage, personal care, and pharmaceutical industries, offering a reliable and efficient alternative to traditional pneumatic pumps.

Key Features:

• Electric Diaphragm Pump
• h120, 2" Tri-Clamp
• Food Grade Stainless Steel (FG SST), FEP Coated Aluminum Center, Stainless Steel Seat, FKM (Viton) Ball and Diaphragm
• Up to 450 lpm (120 GPM)
• Maximum working pressure: 4.2 bar (some sources list up to 5 bar as maximum fluid pressure)
• Designed as a drop-in replacement for pneumatic diaphragm pumps; compatible with food, beverage, personal care, and pharmaceutical applications
• Food Grade (FG), 3A approved (some models), High Sanitary (HS) and Pharmaceutical (PH) surface finishes available in other variants
• Electric drive eliminates need for compressed air, reducing energy consumption by up to 80%
• Quiet operation (as low as 40 dBA)
• Self-priming, seal-less design for smooth and steady flow
• Stalls under pressure to minimize downtime from clogged lines or closed valves
• Compact and efficient footprint, comparable to pneumatic pumps
• Smart pump control with accurate flow set points and built-in I/O
• Easy installation and maintenance
• Reliable and ultra-dependable for continuous operation

Applications:
Food, beverage, personal care, and pharmaceutical industries for hygienic and sanitary fluid transfer

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards
• Ensure proper alignment of tri-clamp connections for leak-free operation
• Verify electrical supply matches pump requirements (380-480 V)
• Follow manufacturer guidelines for priming and start-up
• Regularly inspect diaphragms, balls, and seals for wear and replace as needed
• Consult the equipment manual for detailed installation and maintenance procedures
