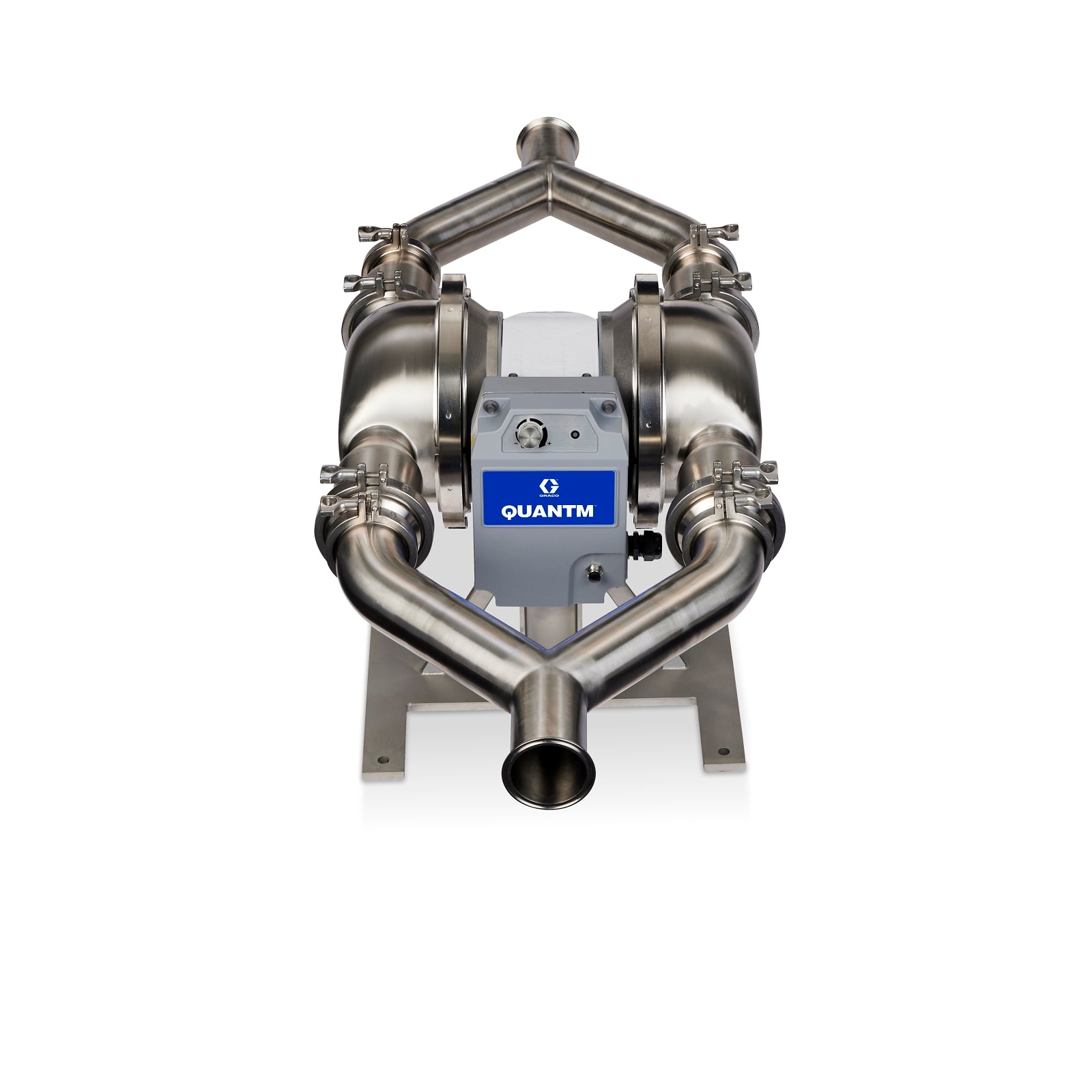

The GRACO HE120-1517 is a high-performance electric diaphragm pump designed for demanding industrial applications. It features a 316L stainless steel fluid section with a 3" Tri-Clamp center port, FEP-coated aluminum electric drive, and is powered by a 380-480 VAC 3-phase motor. This pump is engineered for reliability and efficiency in food, beverage, pharmaceutical, and personal care industries, offering a robust, sanitary, and energy-saving alternative to traditional pneumatic pumps.

Key Features:

• Electric Diaphragm Pump
• HE120-1517, 3" Tri-clamp, HS SST
• 316L Stainless Steel fluid section, FEP-coated aluminum electric drive, PTFE/Santoprene 2-piece diaphragms, 316 Stainless Steel seats, 316L Stainless Steel flapper balls, EPDM manifold o-rings
• Up to 450 lpm (liters per minute)
• Maximum working pressure: 4.2 bar
• Designed as a drop-in replacement for pneumatic diaphragm pumps; suitable for food, beverage, pharmaceutical, and personal care industries
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (low noise level, ~40 dBA)
• Compact and efficient electric drive (no gearbox)
• Smart pump control for accurate flow set points and built-in I/O
• AutoPrime feature for self-priming
• Stalls under pressure to minimize downtime from clogged lines or closed valves
• Easy installation and maintenance
• Seal-less design for consistent, steady flow

Applications:
Food, beverage, pharmaceutical, and personal care industries; ideal for high sanitary, high reliability, and energy-efficient fluid transfer applications

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment and secure mounting of the pump
• Verify electrical supply matches pump specifications (380-480 VAC 3-phase)
• Use appropriate sanitary fittings and gaskets for Tri-Clamp connections
• Follow manufacturer guidelines for initial priming and startup
• Regularly inspect diaphragms, seals, and fluid path for wear or contamination
